Geyser Classic - CONNECTION TO WATER PIPE; PURE WATER TAP CONNECTION

7
CONNECTION TO WATER PIPE
Make sure that water feed to a place of connection is shut off!

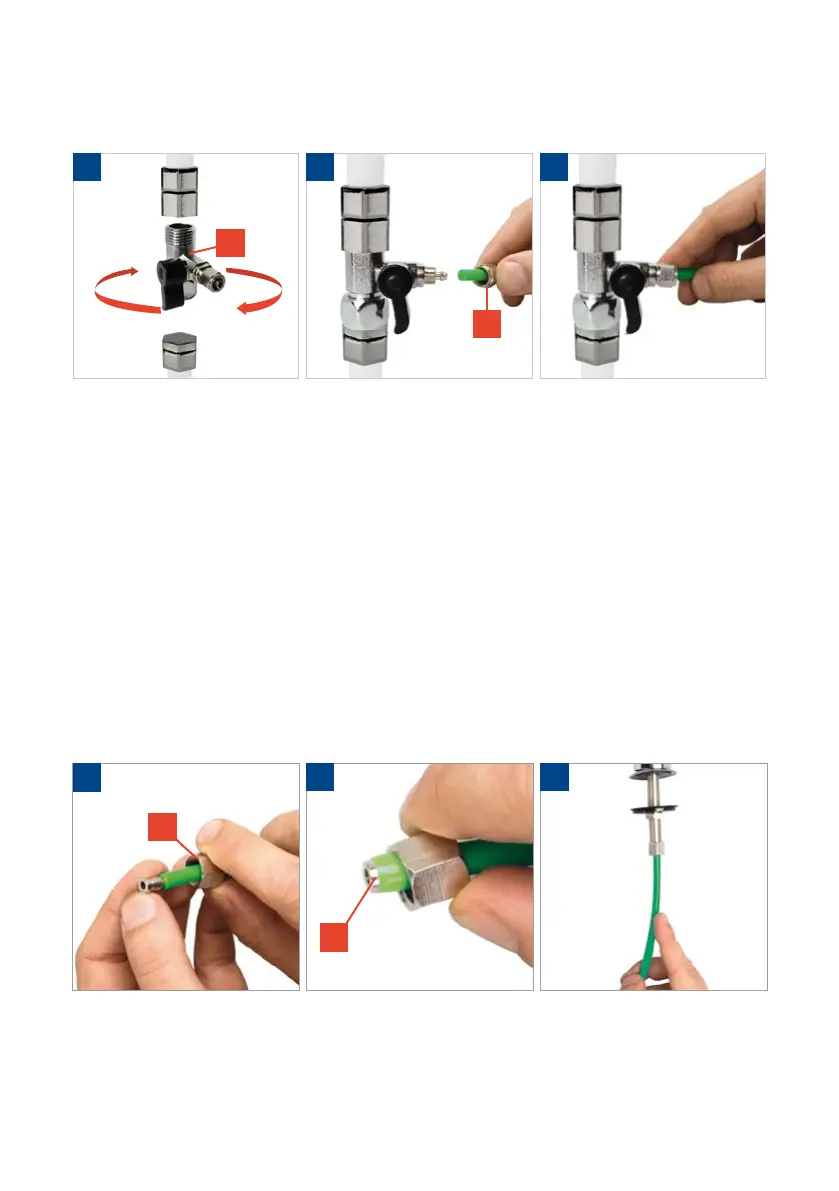

1. Fix a triple adapter (A) to the cold water main line, making the connections tight (Fig. 1).
31
А
2
В
2. Insert a plastic pipe (Fig. 2) into a screw (В). Insert a pipe into a tting of a ball valve until
it stops and tighten a screw (рис. 3).
PURE WATER TAP CONNECTION
1. Drill the hole of 12 mm in a kitchen sink.
2. Assemble the tap as follows (ref. Connection diagram on page 5):
 tap
 decorative washer kit
 rubber gasket
 plastic washer kit
 metal washer kit
 screw
3. Secure a tap on a kitchen sink:
 Thread a plastic pipe (Fig.1) into a screw (E)
 Put the grommet (Н) inside a pipe until it stops (Fig.2)
 Spin a screw over a threaded rod of the tap (Fig.3)
3
2
H
1
Е
DETAILS OF CONSTRUCTION
The patented (Paten №2014135903) cartridge mounting system provides easy change
of water flow direction.
Undo a housing and take an insert out (item 5 page 5), flip it through 180° and x it
