GEZE Boxer - Scope of delivery; Mounting and securing; Drilling template

E-Gleitschiene Boxer

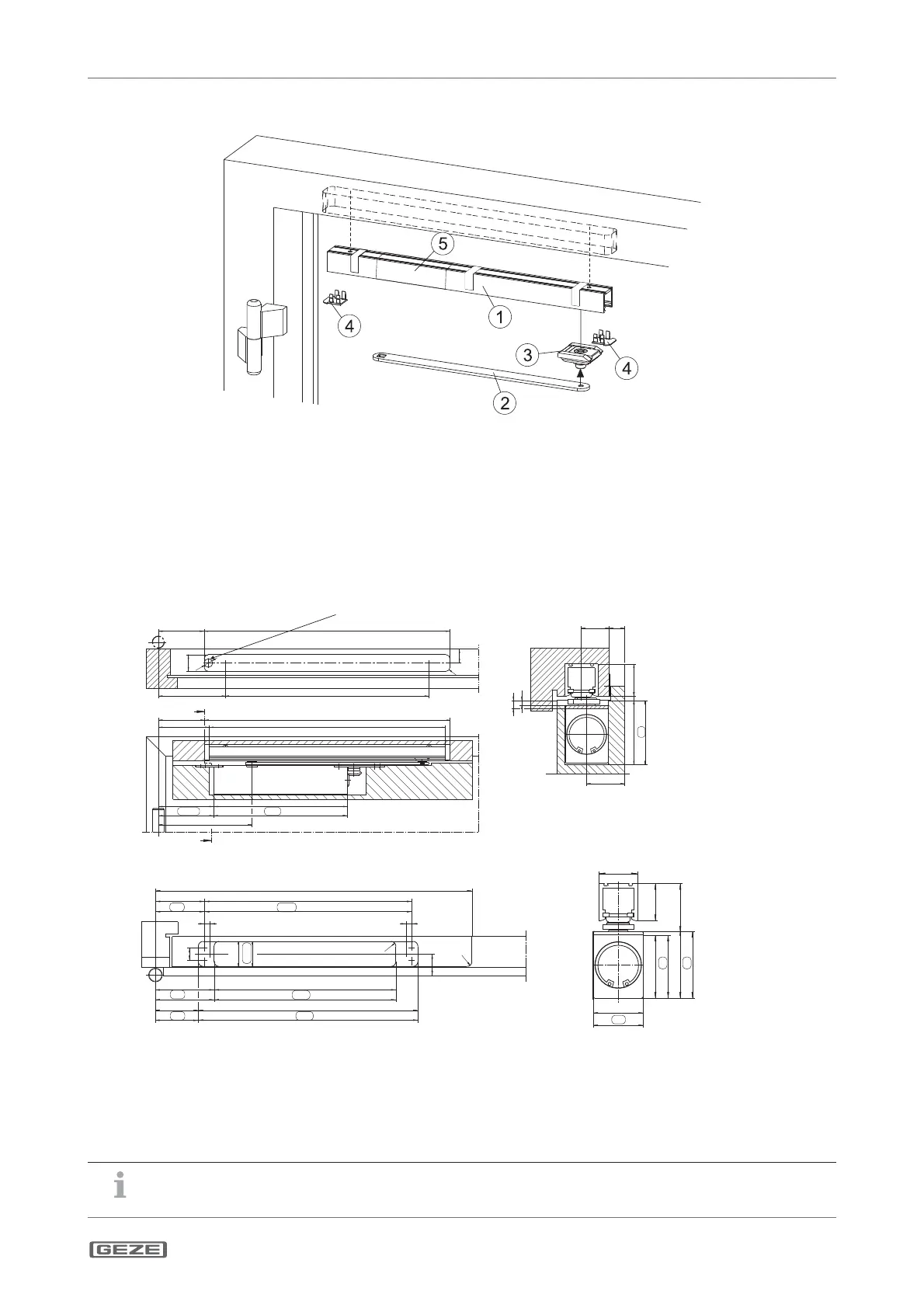

Scope of delivery
5 Scope of delivery
Fig.: 5.1
1 E-guide rail Boxer
2 Sliding lever
3 Sliding block
4 End caps
5 Electrical hold-open device
Screws and accessories bag (without illustration)
6 Mounting and securing
6.1 Drilling template
Work on doorframe Under-plaster supply 24V connection
86,5
459
125 380
±0,2
Ø16
31,5
26
R8
95
85,5
457
440
107,8
103,2 249,8
240
175
7,5
4,5
26 14
30
4
60
51
35
A-A
A
A
Work on leaf GEZE Boxer size 3-6/size 2-4
334
510
320
79
82
9
20
40,5
32,5
9
R8
35
R8
94,5
99
69
72
354
340
293
286
30
38,5
31
40
32
51 42
54
45
Work on frame and leaf for right leaf, mirror image Dimensions in 
for GEZE Boxer size 2-4
Fig.: 6.1.1
X
Prepare the door as shown in g. 6.1.1.
X
Fit the Boxer and close the closing time valve.
On request, GEZE will provide installation drawings for most common door proles.
In case this product is in use with an hold-open device, please observe the document “Instructions for Installati-
on, Commissioning, Operation and Maintenance of the GEZE Hold-Open Device FA GC” as well.
GB 3
