ECturn/ECturn Inside
15
Safety sensor close and open

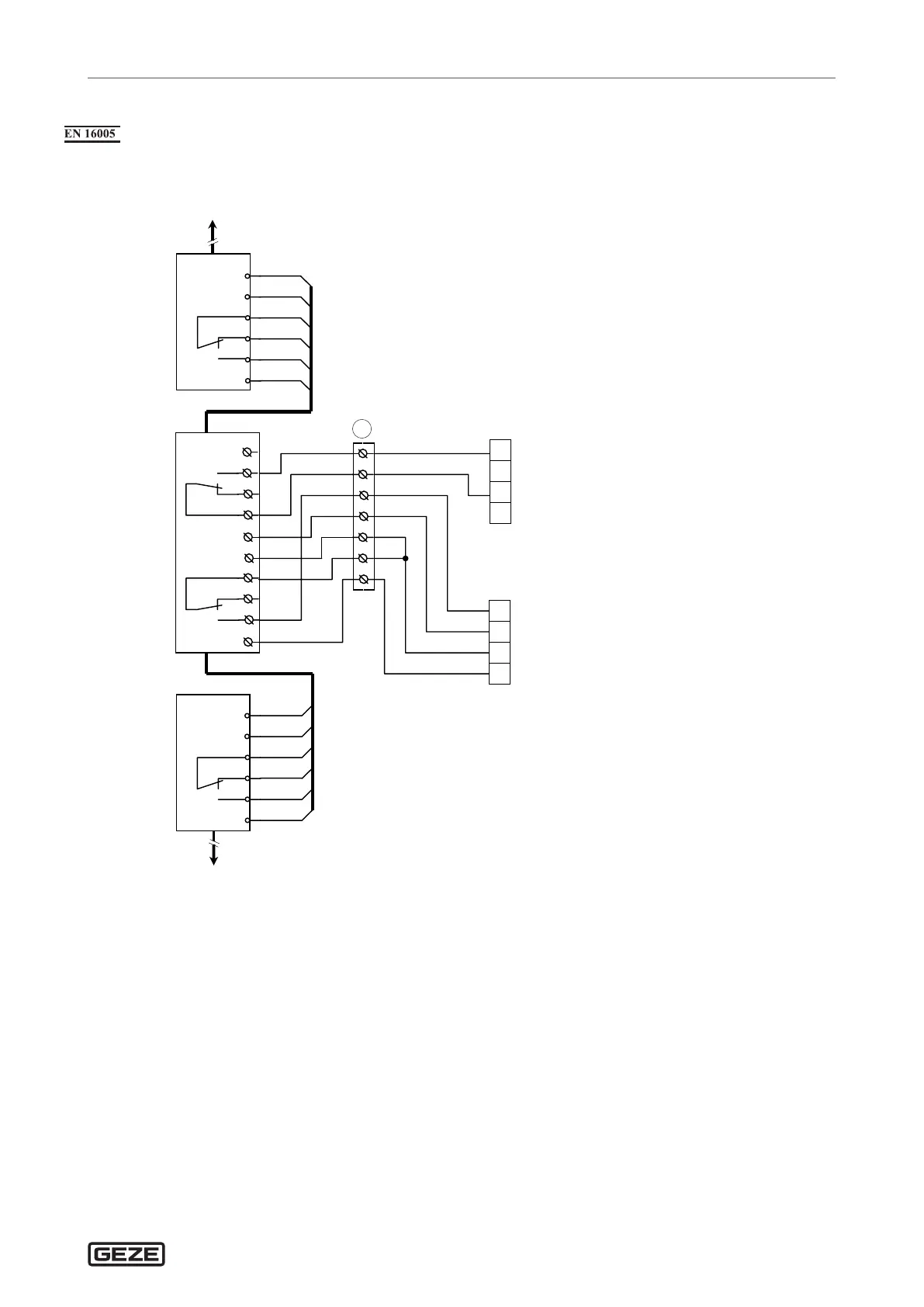

5.4.1 Monitoring closing and opening
X
Set the parameters:
à
s1
(safety closing) to
01
for “SIS” or to
02
for “SIS and K”.
à
s3
(safety opening) to
01
forSIO”.
à
Te
(testing) to
01
for “testing with 24V”.
GC335
Slaves
1
GND
13
SIO
10
TST
4
24VSENS
GC335 Master
BGS
SIO
1
GND
11
SIS
10
TST
4
24VSENS
SIS
WH
BN
GY
GN
PK
YE
6
5
4
3
2
1
60mA
-
+
Test
GC335 Master
BS
6
5
4
3
2
1
60mA
-
+
Test
1
2
3
4
5
6
7
8
9
10
-
+
Test
GC332
Adapter
WH
BN
GY
GN
PK
YE
GC335
Slaves
1
1 Door transmission cable
