ECturn/ECturn Inside
17
Contact sensor
7 Contact sensor
à The K input is only active in the AU mode of operation.
à The contact sensor function can also be activated via the WRB-5 wireless module, channel 1 (see chapter8.1.1,
“Radio channel FK1”).
à When activated, the door opens.
à When activated, the output of the contact sensor is closed (24V applied to the K input).
à The sensor for monitoring closing can also be used as a contact sensor (SIS and K function), see chapter5,
“Safety sensor close and open”.
à The contact sensors K and KB have the same opening delay.
à The hold-open time when actuating via K can be set separately.
X
Set the parameters:
à
Oh
(hold-open time).

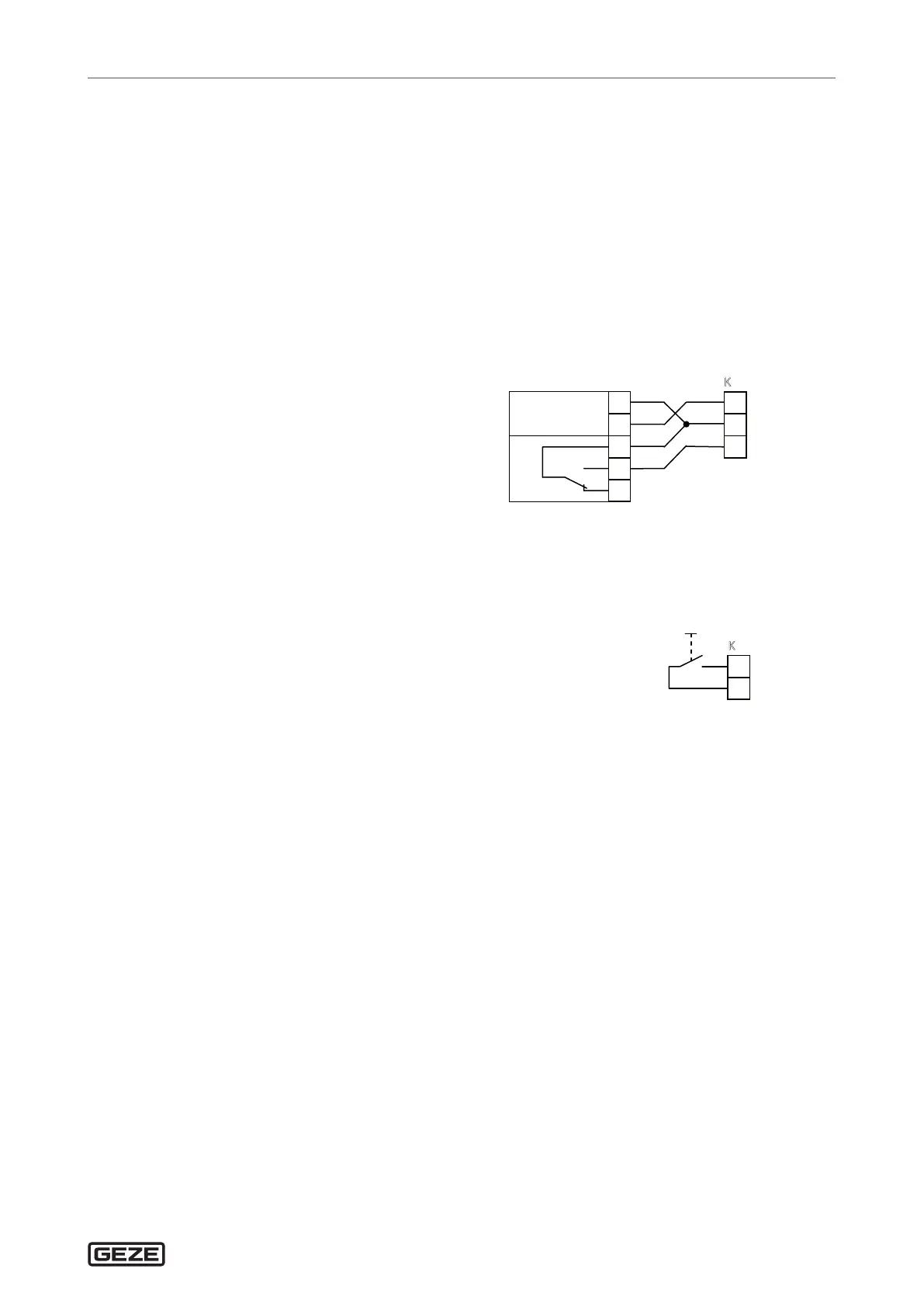

7.1 GC 302 R radar movement detector
à GC 302 R black, mat. no. 124087
à GC 302 R according to RAL, mat. no. 124088
(remote control does not work with detector
hood mounted, LED not visible)
à The GC 302 R is a directionally sensitive radar
movement detector.
à Accessories:
à Remote control, mat. no. 099575
à Ceiling installation kit, mat. no. 115384
à Rain cover, mat. no. 115339
X
Observe installation instructions GC302R.
WH
BU
BK
BN
50mA
+UB
-UB
1
2
3
4
5
24VSENS
K
GND
4
21
1
K
7. 2 Push buttons (potential-free contact)
à GC306 non-contact push button, mat. no. 163028
à GC 306 non-contact push button with hand pictogram,
mat. no. 163029
à Plastic elbow switch, white, mat. no. 114078
à Plastic elbow switch, stainless steel, mat. no. 114077
à Stainless steel elbow switch, mat. no. 119898
à LS 990 stainless steel elbow switch, surface-mounted,
mat. no. 128582
à LS 990 stainless steel elbow switch, ush-mounted,
mat. no. 128583
à Accessories:
à IP65 switch insert, mat. no. 114156
à Additional contact, mat. no. 114157
à WTM transmitting module, can be clipped in,
mat. no. 131212
à Back plate for plastic elbow switch,
à white, mat. no. 131219
à stainless steel, mat. no. 131220
21
42
K
K
4VSENS
