1.3 Safety-conscious working
à Secure workplace against unauthorised entry.
à Watch the swivelling range of long system parts.
à Secure the weather hood/drive panels against falling.
à Attach safety stickers to glass leaves.
à Danger of injury with opened drive. Hair, clothing, cables, etc. can be
drawn in by rotating parts.
à Danger of injury caused by unsecured crushing, impact, drawing-in or
shearing spots!
à Danger of injury due to glass breakage!
à Danger of injury due to sharp edges in the drive!
à Danger of injury during installation through freely moving parts!
1.4 Environmentally conscious working
à When disposing of the door system, separate the dierent materials and
have them recycled.
2 Description
The GC 304 R radar detector has been designed for use as an opening
pulse generator on automatic doors. Due to the Doppler eect, the sensor
detects movements, whereby a distinction is made between approach
and distance to the detector. It is not possible for several sensor systems to
inuence each other and result in a hazard.
Material number GC 304 R: 130651





 

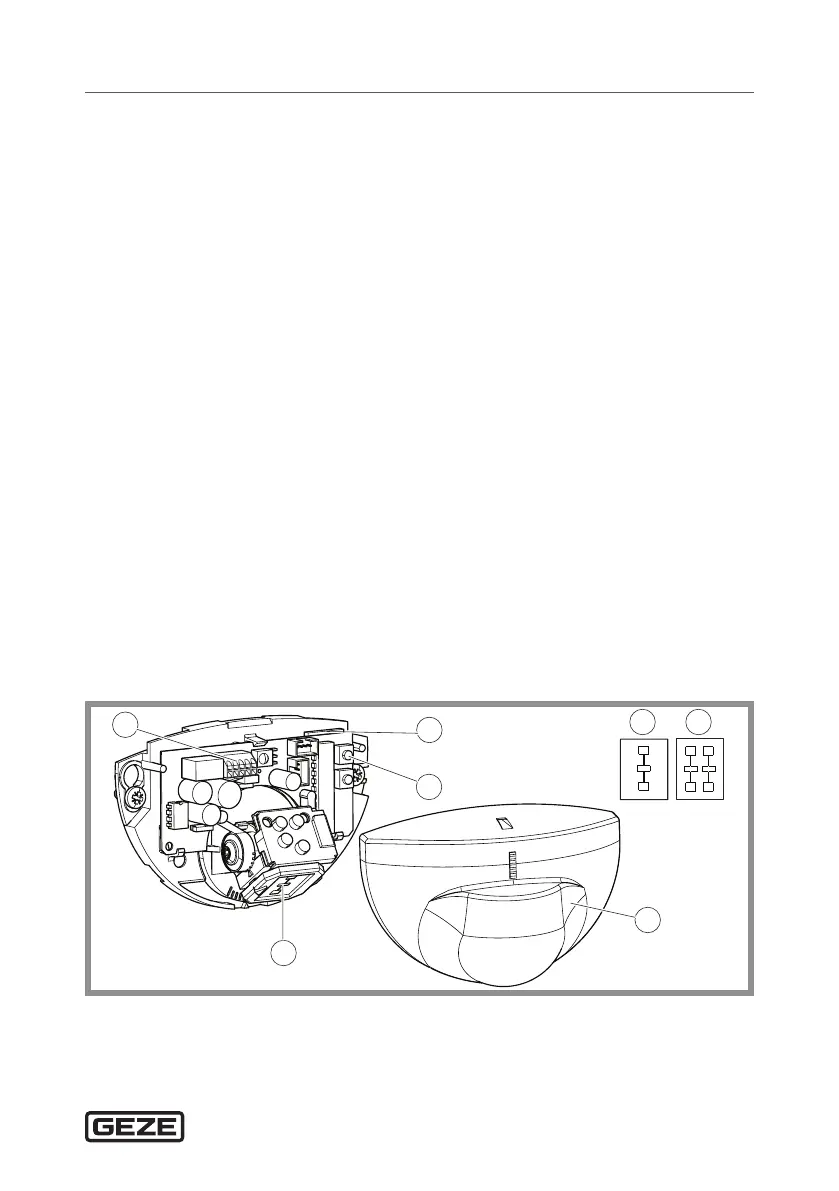

1 Connection terminal
2 Radar antenna for wide eld
3 Radar antenna for narrow eld
4 Push button
5 Weather hood
