Slimdrive SL NT/SL NT-FR
7
Pre-installation
5 Pre-installation
The most up-to-date diagram is applicable for performing the pre-installation work. All components must be
identied and installed in accordance with the drive diagram.

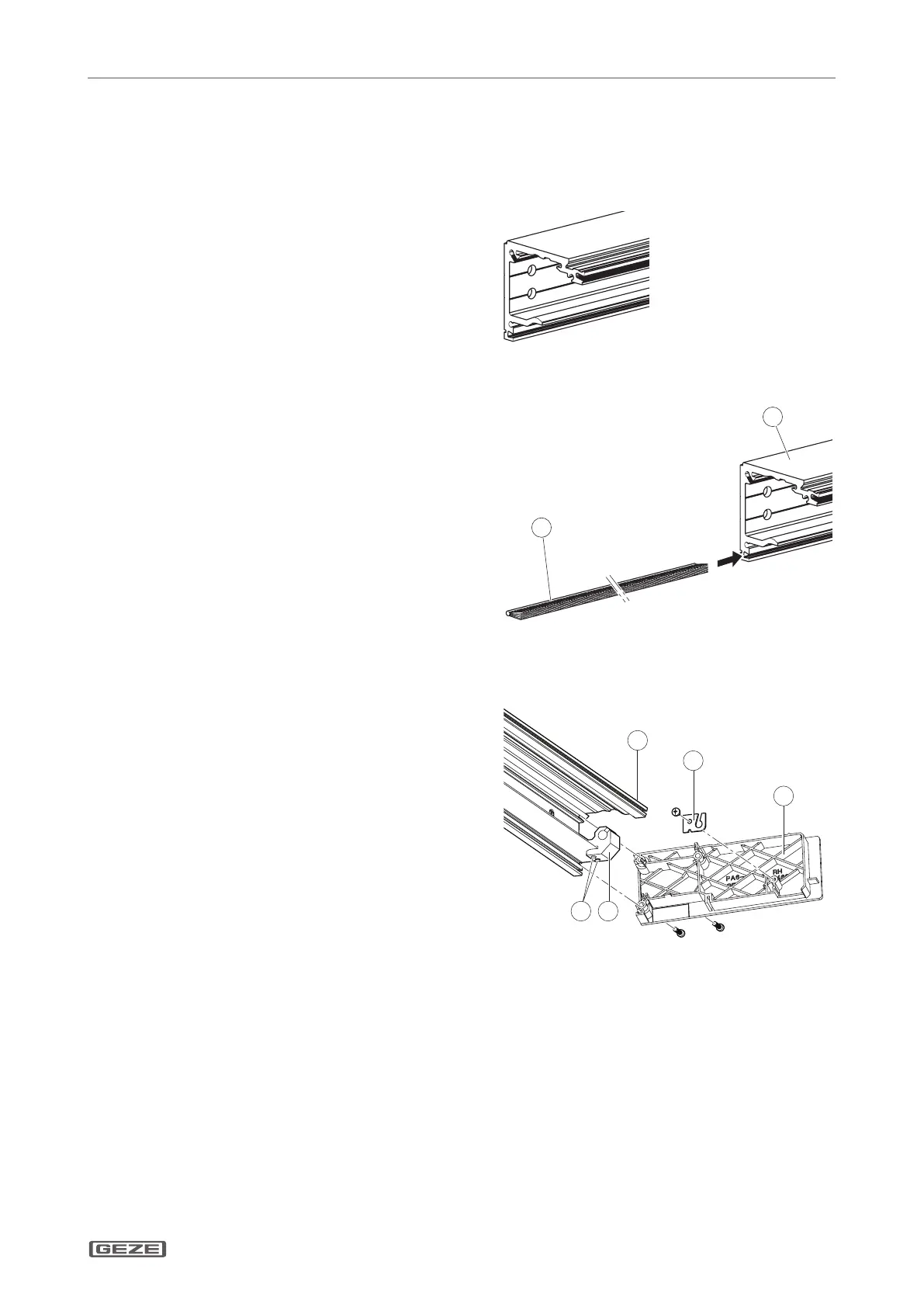

5.1 Cutting the running rail and cover to size
XX
Cut the running rail and cover to the required
length.
5.2 Fitting the brush
XX
Cut the brush (1) to the required length and
insert into the running rail (2).


5.3 Fitting the side plates
XX
Screw the sheet-metal part (2) for securing
the cover in the left-hand and right-hand side
panels (3).
XX
Fit the side panels on the running rail (1).
XX
Place the stop buers (4) on the far left and
right of the running rail.
XX
Tighten the setscrews (5) slightly. The exact po-
sition of the stop buers (4) is specied during
door leaf installation.
1
2
3
45
