Description
3 Description
3.1 Types of installation and versions
à The drive unit can be mounted in transom installation on the lintel or in door leaf in door leaf installation.
à The drive unit is available as 1-leaf or 2-leaf version.
3.2 Structure

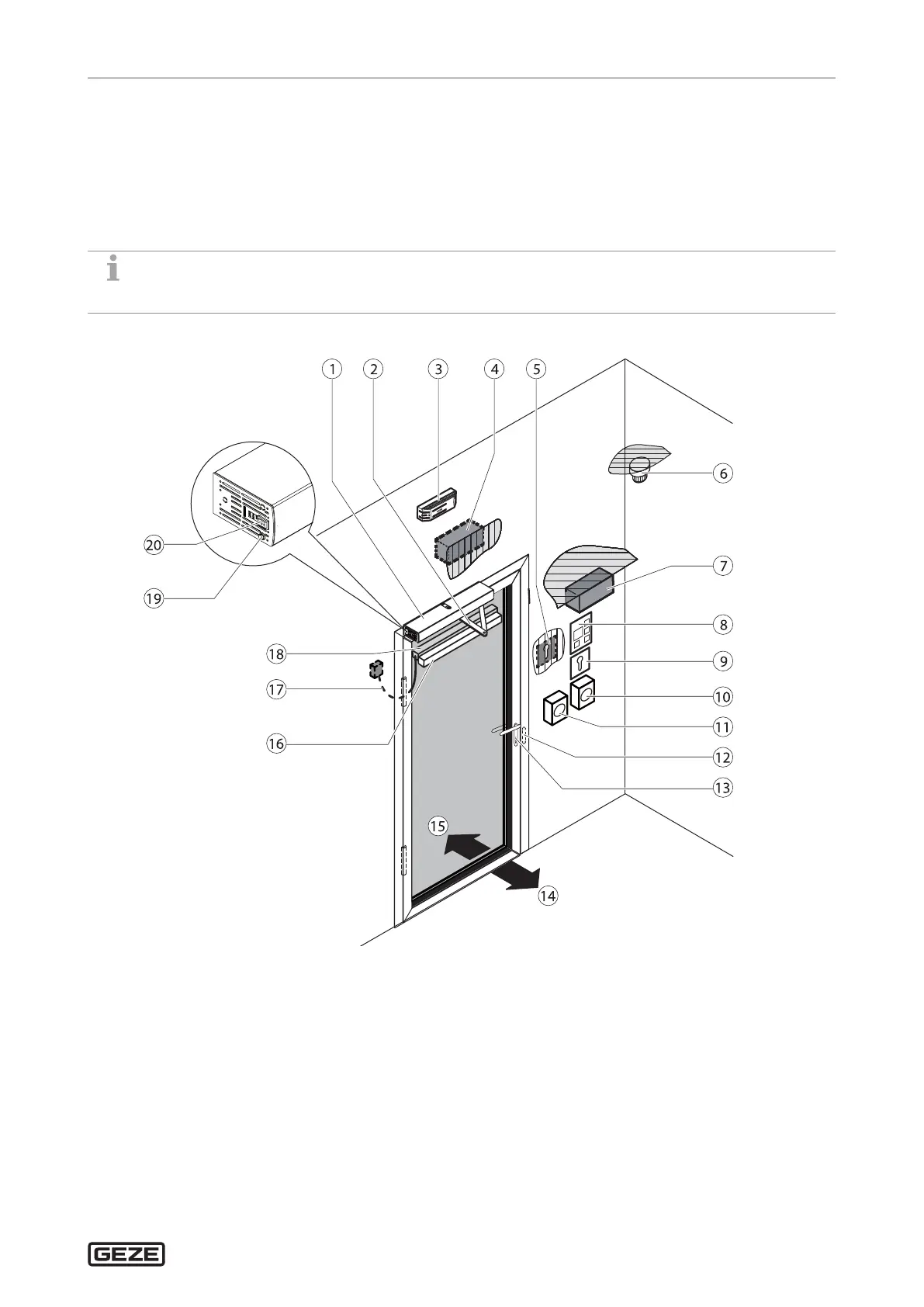

The door system shown is only a schematic diagram.
For technical reasons, we cannot show all of the possibilities here.
The operating elements can be arranged individually.
Example: Drive unit Slimdrive EMD-F, 1-leaf, transom installation
1 Drive unit
2 Link arm or lever
3 Smoke switch control unit
1)
4 Outside contact sensor (KA) (optional)
5 Mechanical contact (KB) (optional)
6 Smoke switch
1)
7 Contact sensor inside (KI) (optional)
8 Display programme switch (optional)
9 Key switch for enabling the
display programme switch (optional)
10 Emergency stop switch (optional)
11 Manual trigger switch “CLOSE DOOR”
1)
12 Electric strike (optional)
13 Door handle with door lock (on site)
14 inside
15 outside
16 Closing safety sensor (SIS) (optional)
17 Door transmission cable (optional)
18 Opening safety sensor (SIO) (optional)
19 Reset button
20 Internal programme switch
1)
optional, in conjunction with Slimdrive EMD-F
