Integrierte Schließfolgeregelung Slimdrive SD Türblattmontage Bandseite , Datei 88340 SD_IS-T-BS_180400.p65

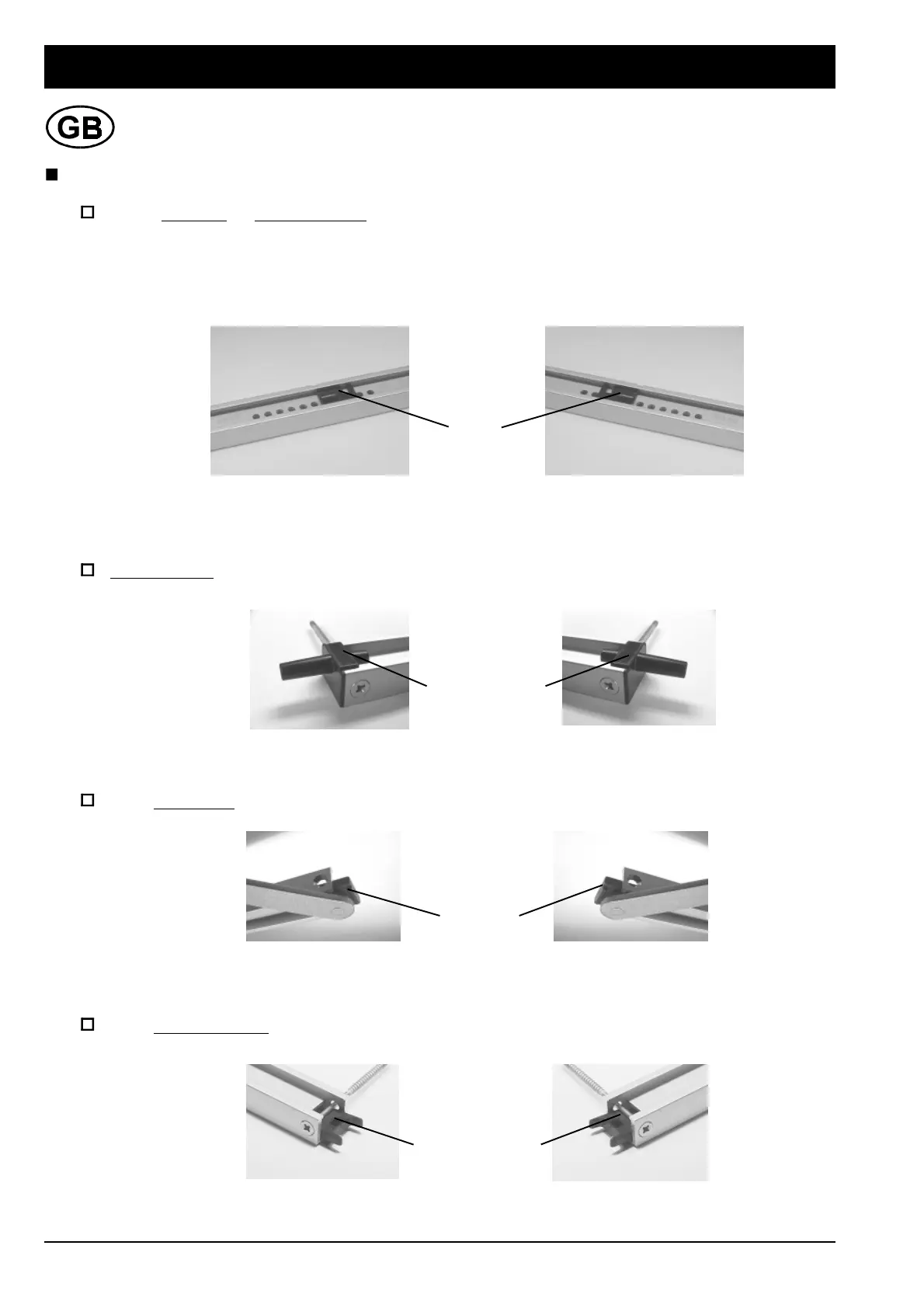

Mounting of guide rails
Mount short rail on active leaf side (either left or rights side as required) using fitting template or
drawing.
Position: Adjusting device of Bowden cable on top, the pick-up for the cable faces the hinge
side (right or left).
Push end cap with lead-through for Bowden cable into the guide rail towards the hinge side,
screw down acc. to template/drawing.
when mounted on
active leaf left
when mounted on
active leaf right
Transition piece
(in bottom chamber)
Push sliding pad with lever towards drive
Push transition piece into guide rail towards door centre , screw down
Adjusting device
of Bowden cable
Direction of Bowden cable when
mounted on active leaf left
Direction of Bowden cable when
mounted on active leaf right
End cap with
lead-through for
Bowden cable
when mounted
on active leaf left
when mounted
on active leaf right
Illustration: view from below
Sliding pad
with lever
Drive on left side
Drive on right side
