58

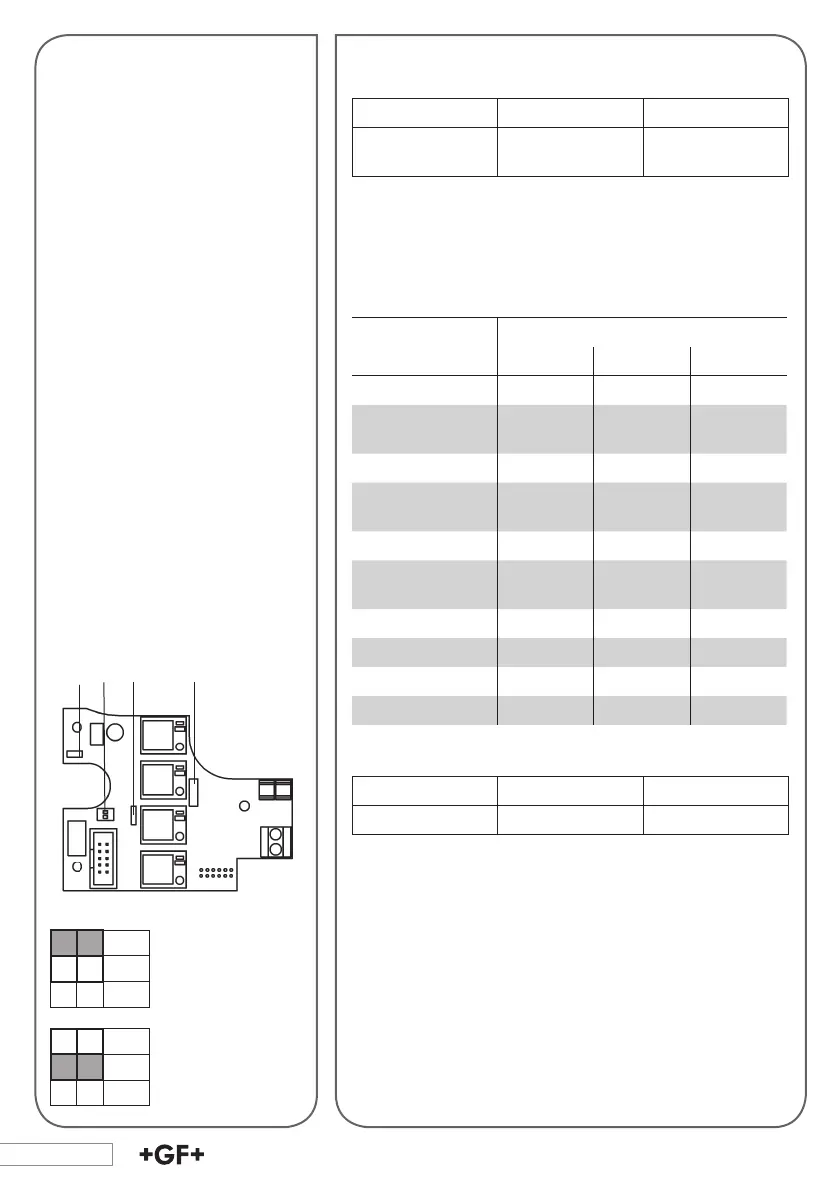

Cycle time monitoring
Description Technical data Code
Cycle time
monitoring
199 190 082
Cycle time monitoring monitors the duration of a pre-set
cycle time of the electric actuator. If the cycle exceeds the
pre-set time, a failure is reported (see error message, page
20). For the corresponding value please refer to the table
below (values are valid for 90° actuation).
Switch setting Cycle time monitoring [s]
EA21 EA31 EA42
0 7 10 15
1 10 Delivery
position
15 20
2 15 20 25
3 20 25 Delivery
position
30
4 25 30 35
5 30 35 40 Delivery
position
6 35 40 50
7 40 45 60
8 45 55 70
9 50 70 85
Cycle counter
Description Technical data Code
Cycle counter 199 190 083
This function allows setting a desired number of cycles. As
soon as the number of cycles exceeds the set value, an error
is reported (see error message, page 20). With the help of
the DIP switch (8) on the monitoring print it can be preset, if
the actuator should keep moving in this case, or if it should
move to its security position and remain there. (refer to
section error message).
ON
OFF
1 2
ON
OFF
1 2
Both switches on ON
- Error message
without stopping the
actuator
Both switches on OFF
- Error message with
stopping the actuator
(delivery position)
5 6 8 9
