Fusion jointing parameters d16–d110
Polybutene (PB)-Electrofusion jointing
Pipeoutside Wall InsertdepthFusiontimeCoolingtime
diameterthickness socket fitting
d s L1 L2 t t1
mm mm mm mm Sekunden Minuten
16 2,0 27 38 37 2
20 2,0 30 40 47 2
25 2,3 34 42 55 2
32 2,9 37 42 70 4
40 3,7 40 47 120 4
50 4,6 44 49 145 4
63 5,8 50 51 180 6
75 6,8 67 67 150 6
90 8,2 74 74 200 6
110 10,0 80 80 210 6

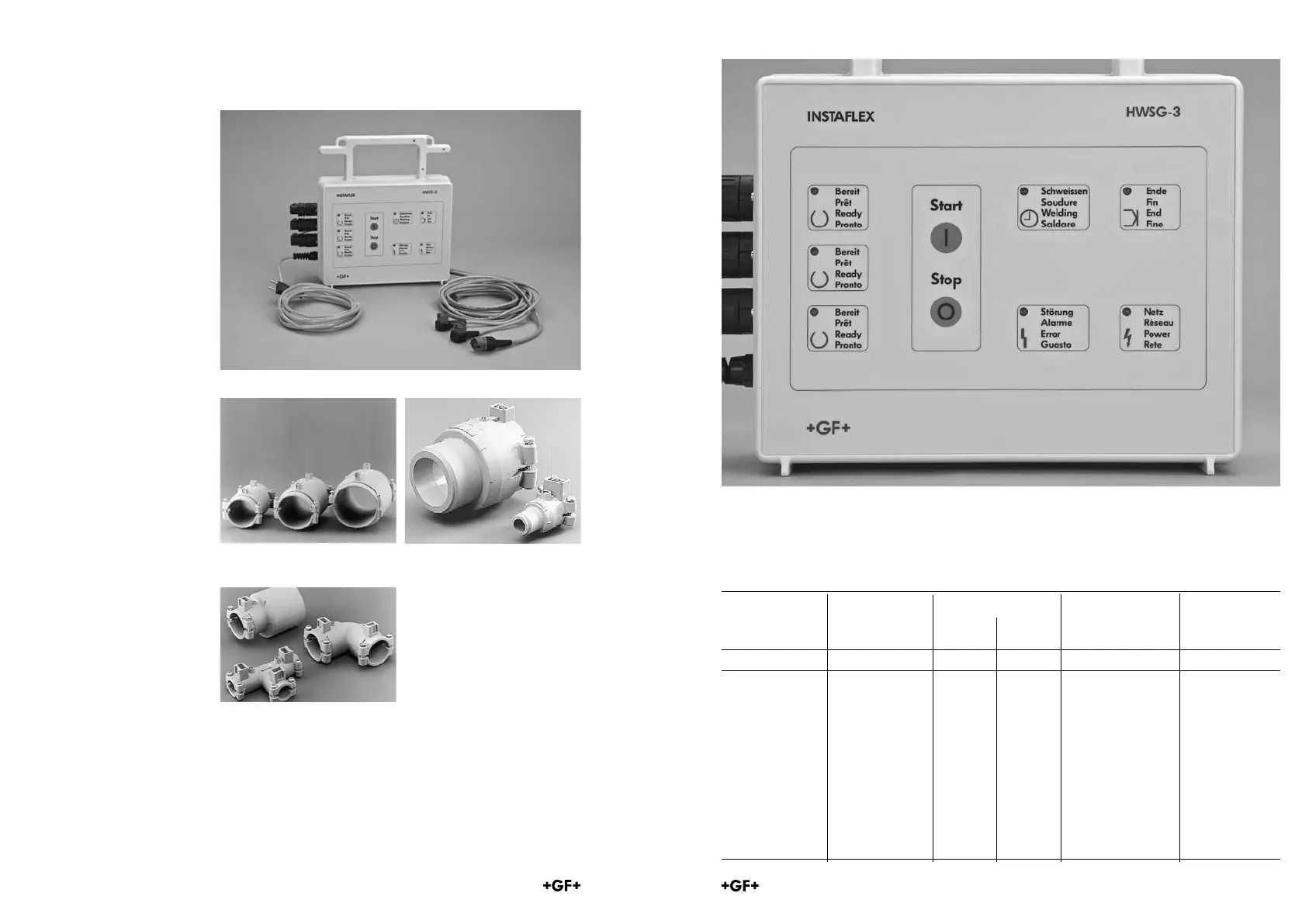

INSTAFLEXHWSG3FusionDevice
Note:
For more information
on the fusion device and
the purchasing options,
please see the
Technical Manual of
Building Technology and
the Price Lists of Georg
Fischer Piping Systems.
Electrofusioncontrolunitwithweldingcables
Electrofusioncoupler
d16–d110
Electrofusionadaptor
d16–d63
Electrofusionfittingsd16–d110
The integrated coding enables the welding unit
torecognisethemouldingconnectedintypeand
dimensions.Afully-automaticfusionsequenceis
thereforepossible.
6. General product information
