GFA 10003424 10012 - Motor Connection; Limit Switch Connection

15

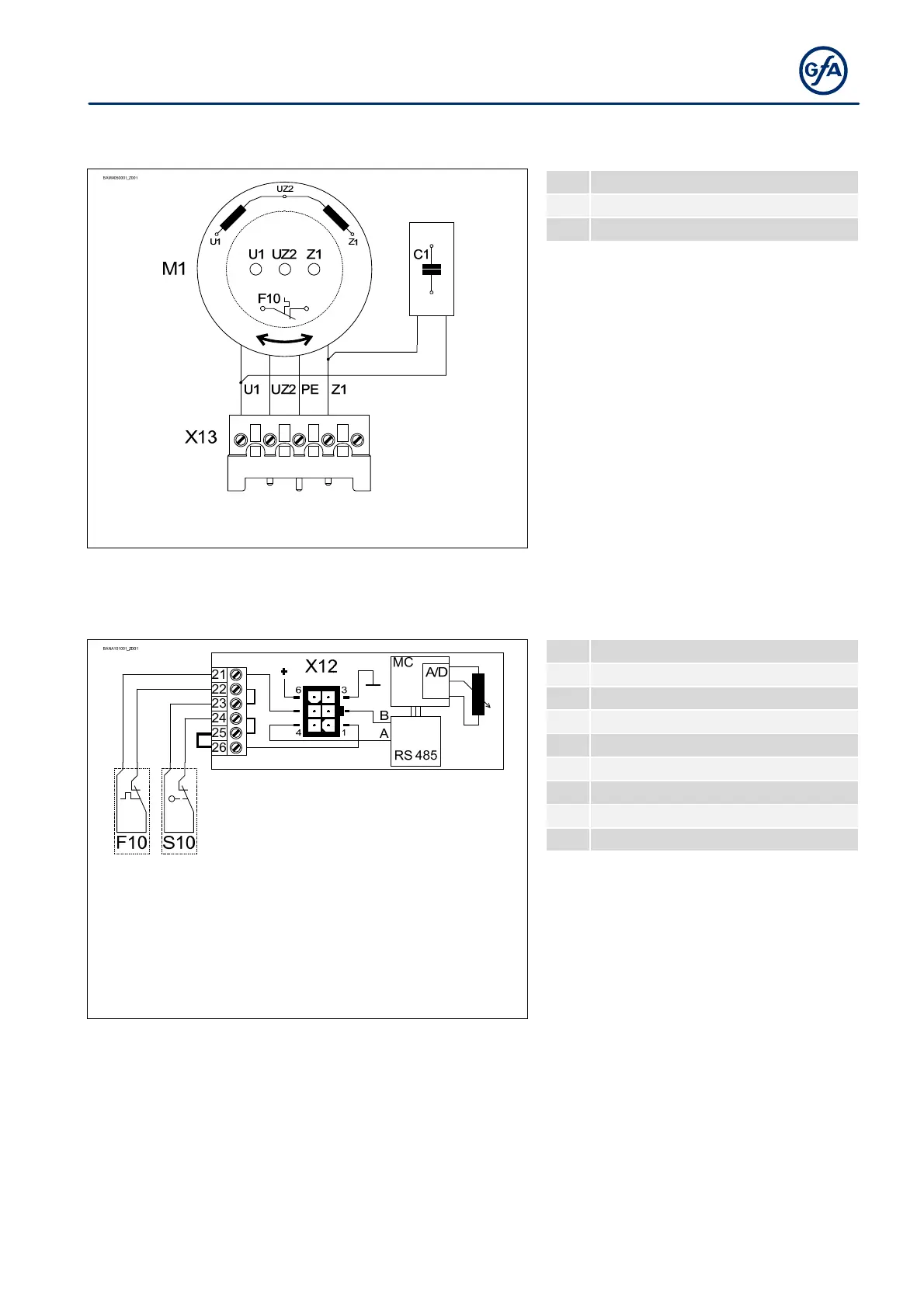

6 Motor connection
C1 Operating capacitor
M1 Motor
X13 Motor plug
1-phase symmetrical
7 Limit switch connection
F10 Thermal contact
S10 Emergency manual operation
X12 DES connection
1 Safety circuit
2 Channel B (RS485)
3 Ground
4 Channel A (RS485)
5 Safety circuit
6 Supply voltage
