8

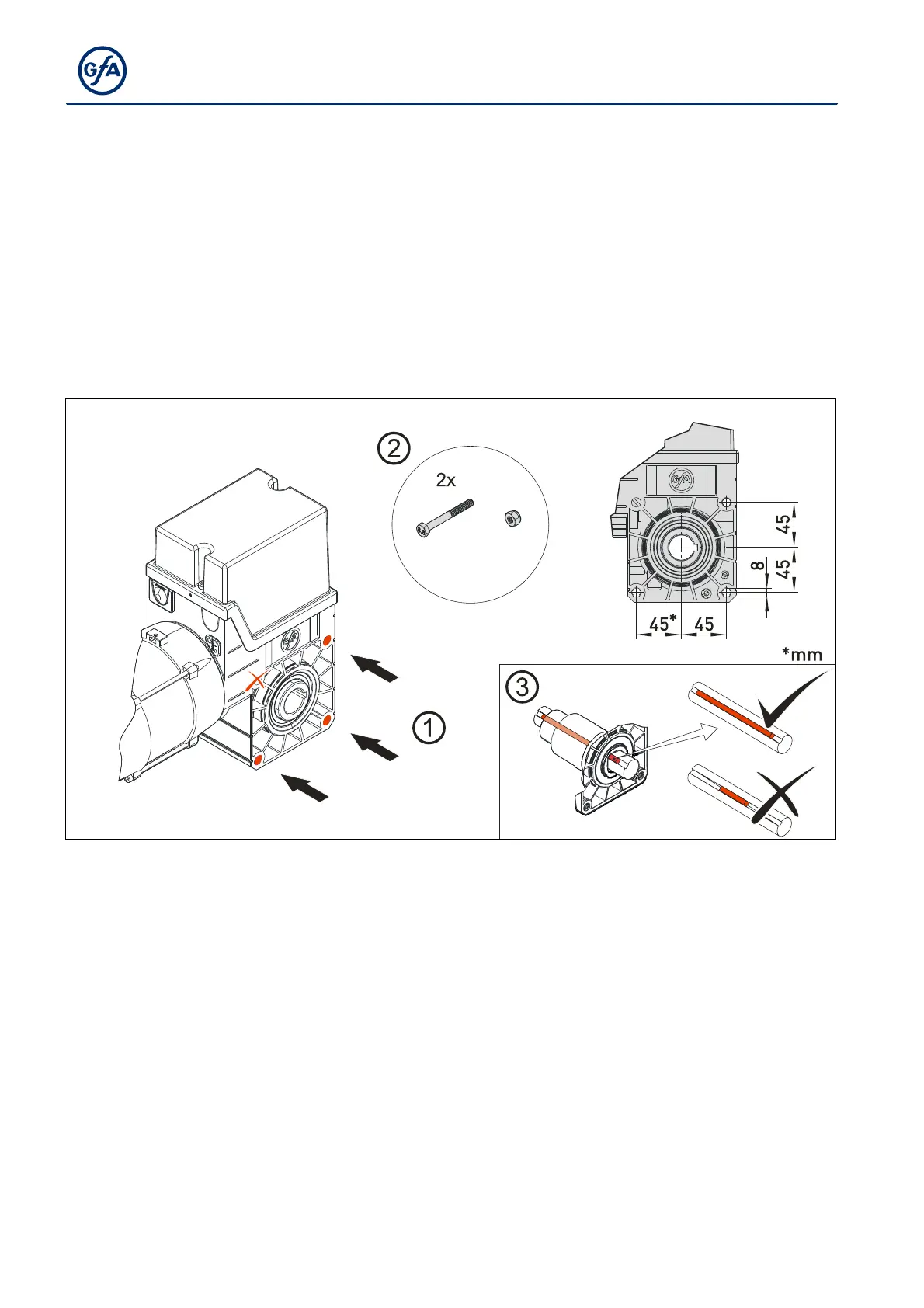

Mounting
Three holes are provided for mounting.
Use at least 2 of these (①).
Use the connection elements supplied (②).
Keys are used to connect to the door shaft.
Use a key that is at least as long as the hollow shaft (③).
BAGAD01101_Z001
2x
M8x120 M8
