Release 00 - 02/2008
Engine WBE 0701-WBE 0704
pag. 43
Service manual
14. ENGINE BLOCK - Overhauling internal parts
All the operations described below require the re-
moval of the engine from the lawnmower.

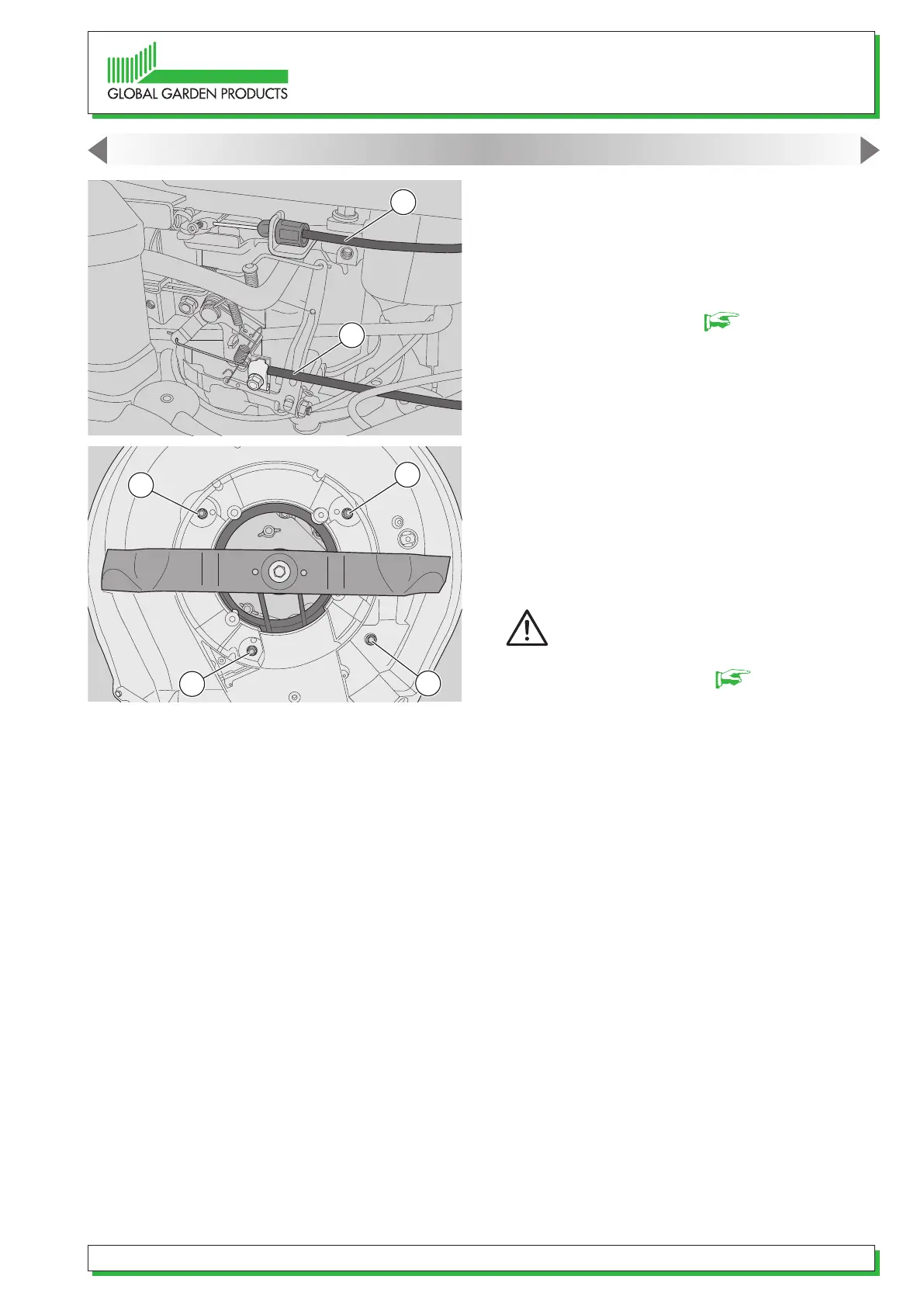

14.1. Removing the engine from the lawnmower
1 - Empty the tank of fuel [ 5.1].
2 - Drain the oil in the sump by removing the ller
plug and turning the mower on its side.
3 - Disconnect the throttle cable (1) and the engine
brake cable (2).
4 - Remove the blade assembly and undo the four
screws (3) which are accessible from the bottom
of the lawnmower.
Grasp the engine at points which offer a
secure grip, taking account of the overall weight
given in the relevant table [ 3.2].
3
3
3
3
2
1
