TURN THE CONTROL BOX OFF

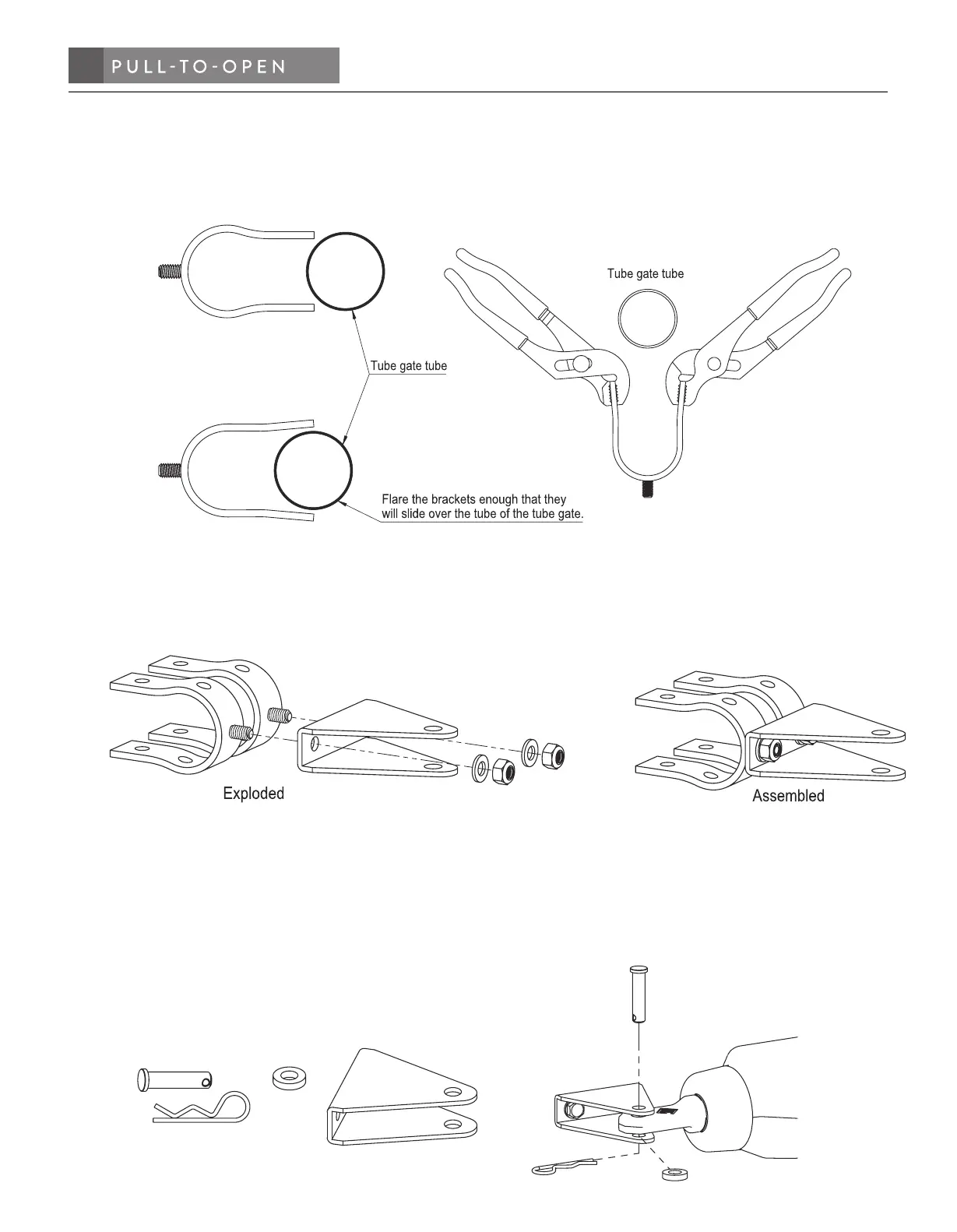

STEP 13A. FOR TUBE GATES ONLY attach the front mount using the tube gate brackets.
A. Before assembling gate bracket make sure the (2) tube clamp brackets fit over the tubular gate bar. If not
they will need to be flared before continuing on to next step.
B. Pre-assemble the tubular clamp brackets to the gate bracket by using the supplied gate and front mount
hardware. Insert (2) M8-65mm Hex Screws and (2) M8 Flat Washers through the Gate Mount Bracket holes
and attach to the Tubular Clamp Brackets and finish by inserting (2) M8- Flat Washers and (2) M8-Hex Nuts
to back of Clamp Brackets. GO TO STEP 14A.
STEP 13B. FOR FLAT PANEL GATES attach front mount bracket to the operator. The gate must
remain in the desired open position.
OPEN THE GATE TO THE DESIRED OPEN POSITION
A. Temporarily assemble the front mount of the gate by inserting the supplied 10mm x 40mm clevis pin, 10mm
I.D. nylon spacer, and clevis hairpin through the gate bracket. GO TO STEP 14B.
