32
© G host C ontr o l s
®
2 0 2 0

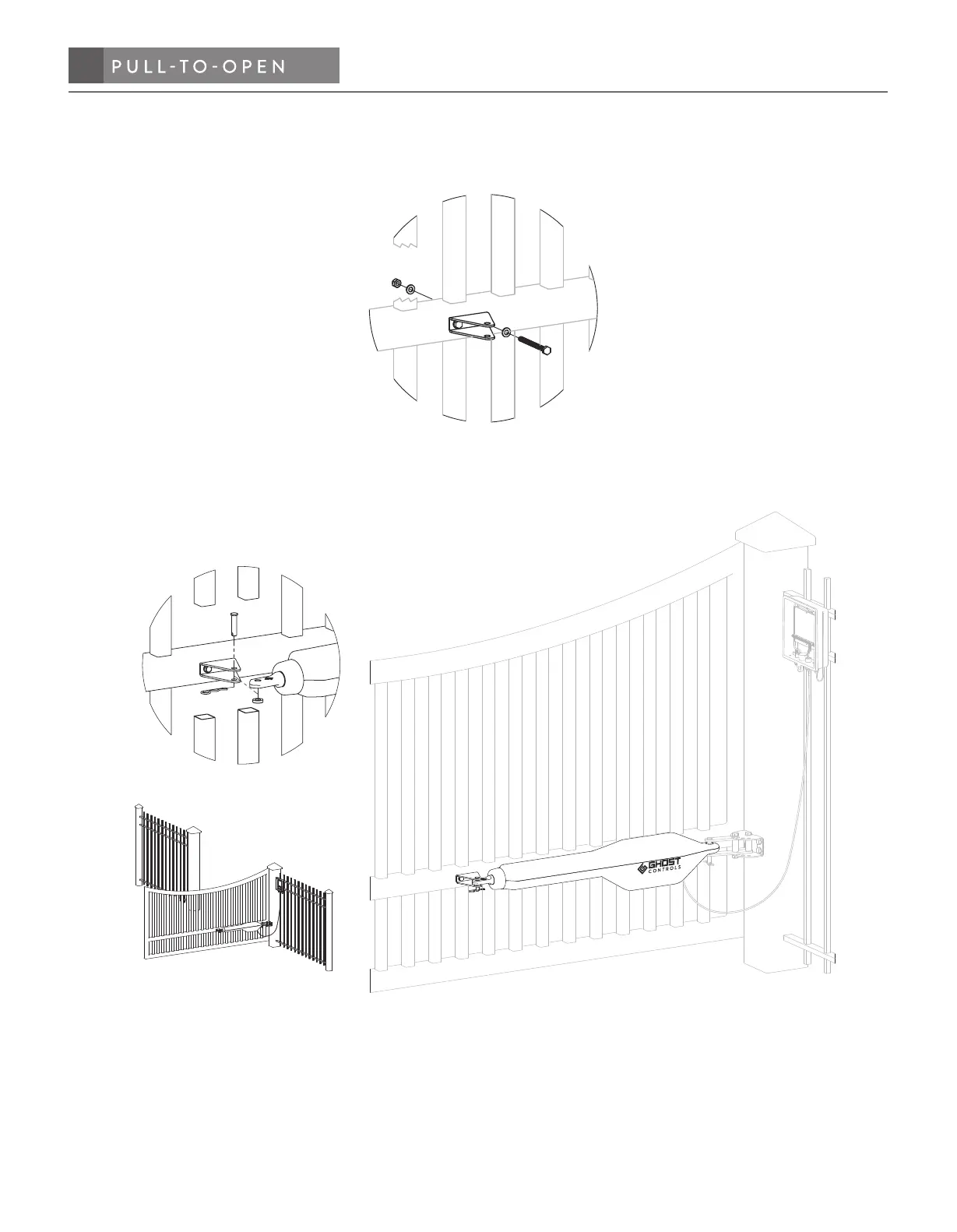

F. Align the innermost hole of the gate bracket and insert (1) M8 x 65mm flat washer, and (1) M8 nylon locknut
through both holes and tighten to secure the bracket to the gate. YOUR FRONT MOUNT GATE BRACKET
SHOULD NOW BE ATTACHED AND SECURED TO THE GATE.
G. Align and attach arm of operator to the secured front mount bracket, as shown below. Make sure all parts
installed during installation are tightened down.
