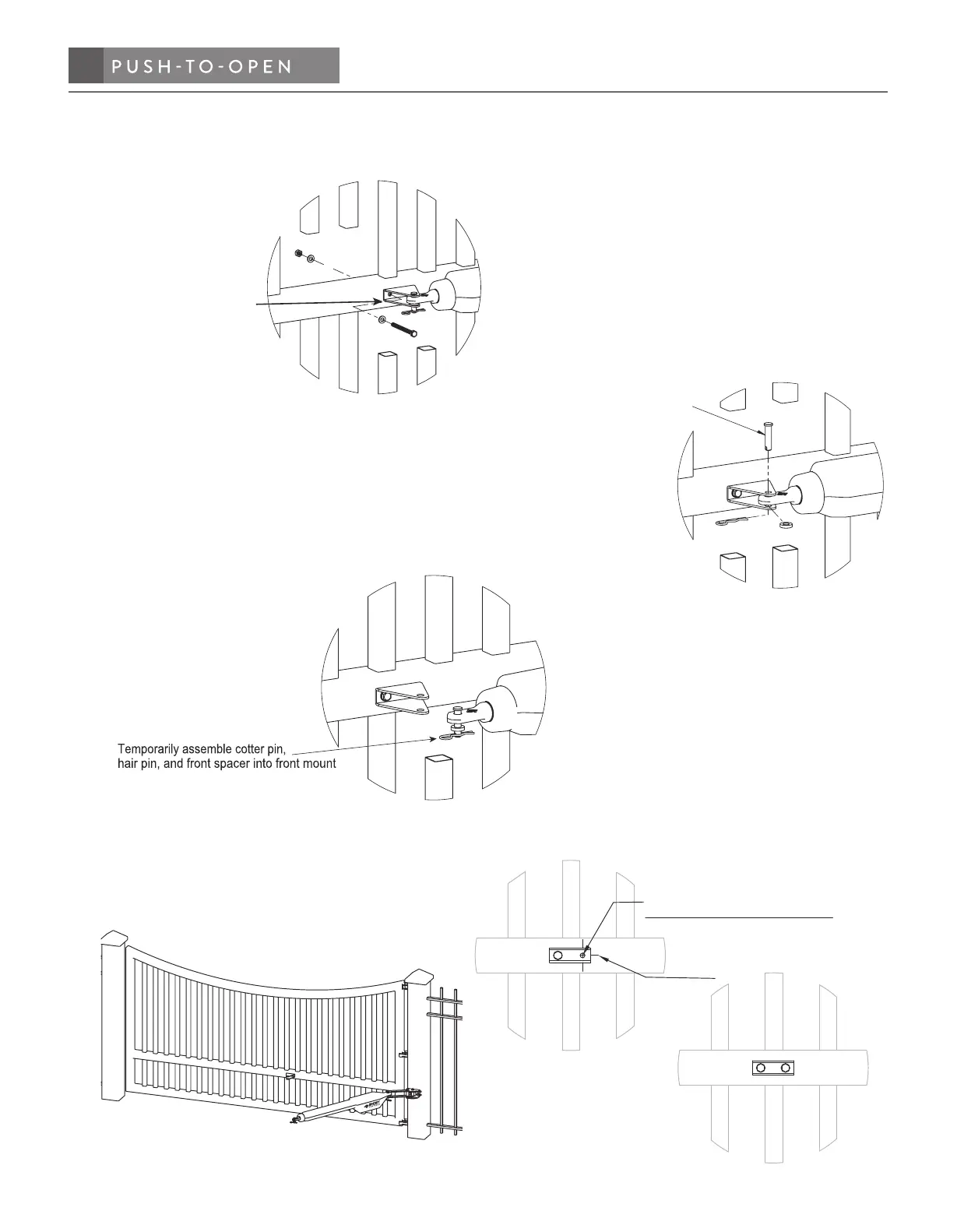

B. Install the front mount gate bracket on the gate by aligning the outermost hole and inserting (1) M8 x 65mm
flat washer, and (1) M8 nylon locknut through gate and front mount bracket, as show below. Tighten to secure
the brackets to the gate. MAKE SURE GATE IS STILL IN CLOSED POSITION (arm must be fully retracted).
Front Mount Bracket
C. Disconnect operator from gate bracket and swing away from the gate.
D. Assemble clevis pin, front spacer and hair pin to operator to prevent loss.
E. Now you can mark and drill the innermost hole on the front mount bracket, shown below.
Mark and drill the center location of
the innermost hole for the Gate Bracket
CL
Remove the clevis pin,
hair pin, and front spacer.
