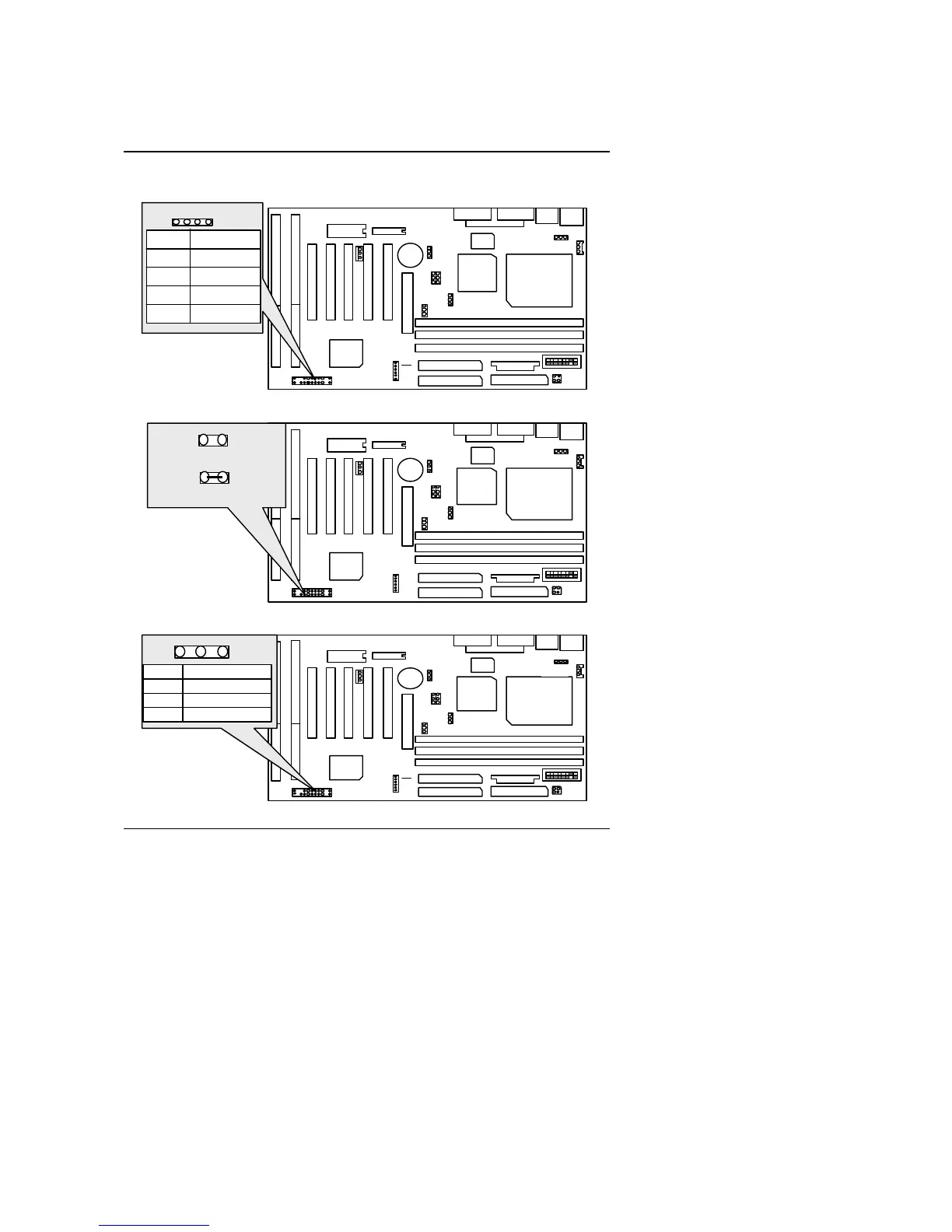

III. Quick Installation Guide of Jumper setting:
SPK : Speaker Connector
CPU
1
M1541
M1543
5AX
1
Pin No.
Function
1
2
3
4
VCC
NC
NC
Data
RES : Reset Switch
CPU
1
M1541
M1543
5AX
1
Close :
For hardware reset system.
Open :
Normal operation.
1
PWR LED : Power LED (As a 3 steps ACPI LED)
CPU
1
M1541
M1543
5AX
1
Pin No.
Function
1
2
3
LED anode (+).
LED cathode (-).
LED cathode (-).
