Gigabyte 5AX - Page 29

5AX
27

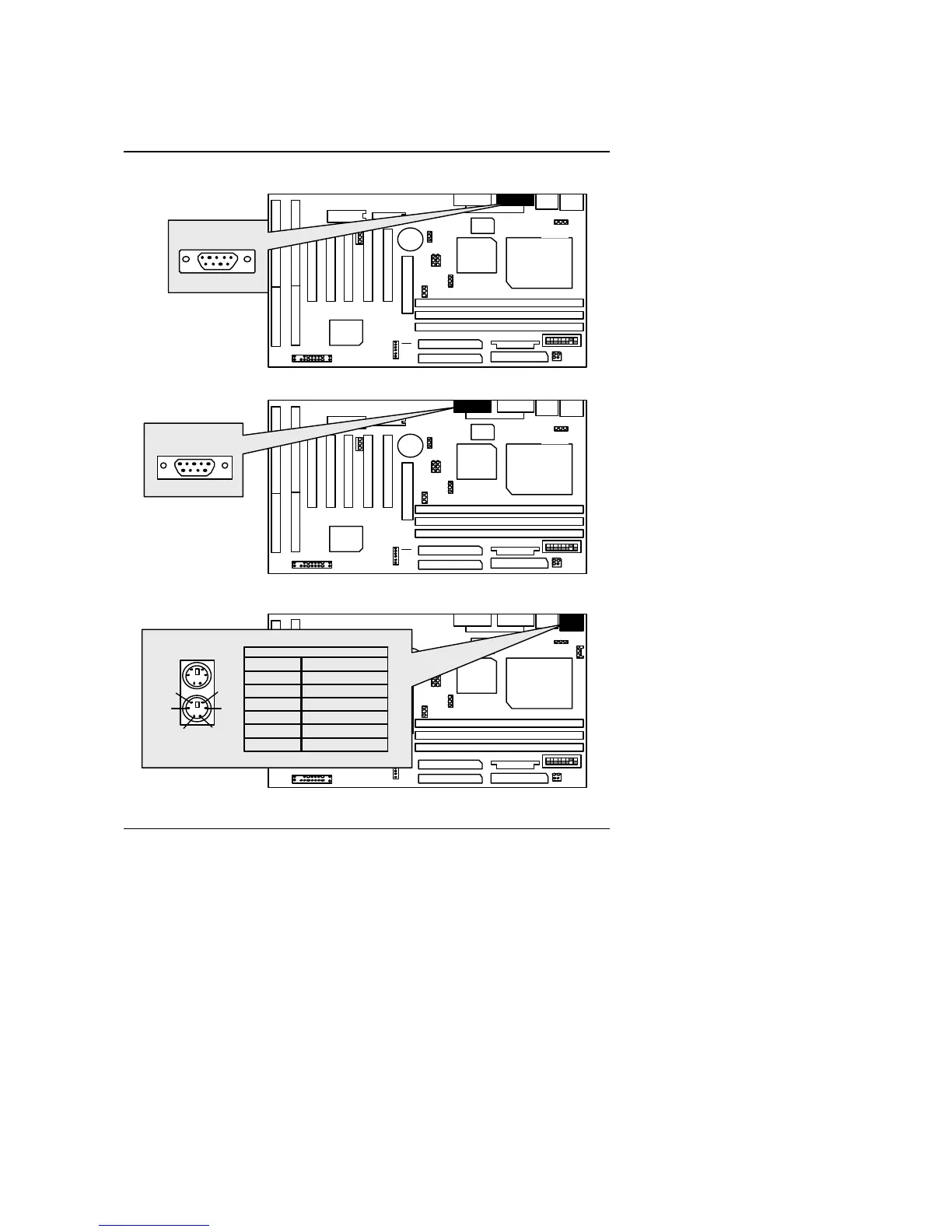

COM B : COM B Port
CPU
1
M1541
M1543
5AX
COM A : COM A Port
CPU
1
M1541
M1543
5AX
M.S. / K.B. : PS/2 Mouse / Keyboard Connector
CPU
1
M1541
M1543
5AX
4
PS/2 Keyboard
PS/2 Mouse
1 2
3
5
6
PS/2 Mouse/ Keyboard
Pin No. Function
1 Data
2 NC
3 GND
4 VCC(+5V)
5 Clock
6 NC
