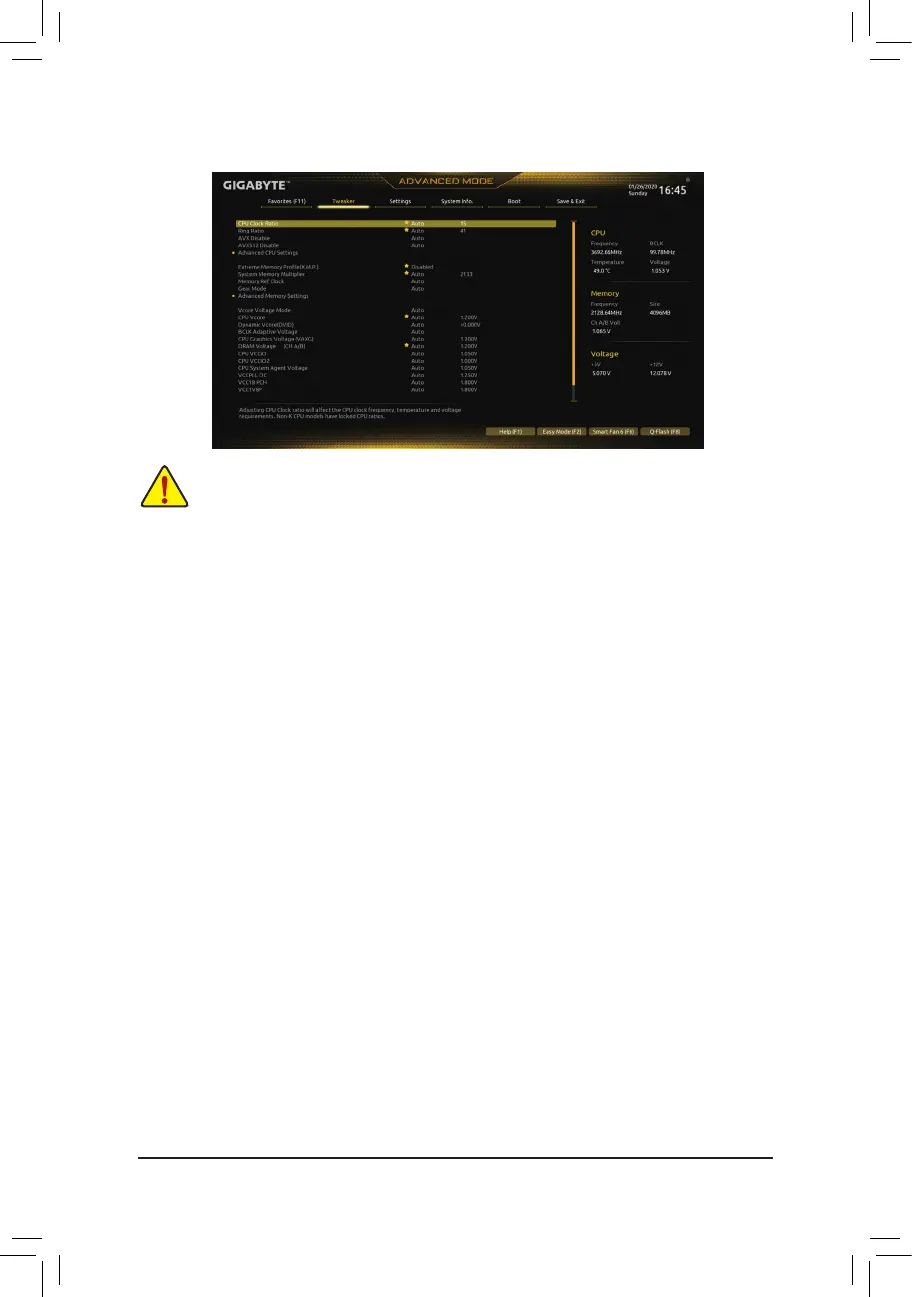

2-5 Tweaker
Whether the system will work stably with the overclock/overvoltage settings you made is dependent
onyouroverallsystemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamage
to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced
users only and we recommend you not to alter the default settings to prevent system instability or
other unexpected results. (Inadequately altering the settings may result in system's failure to boot. If
this occurs, clear the CMOS values and reset the board to default values.)
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& Ring Ratio
Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. (Default:
Auto)
& IGP Ratio
(Note)
Allows you to set the Graphics Ratio. (Default: Auto)
Advanced CPU Settings
& AVX Disable
(Note)
Allows you to disable the AVX instruction sets on a CPU that supports AVX. (Default: Auto)
& AVX512 Disable
(Note)
Allows you to disable the AVX-512 instruction sets on a CPU that supports AVX-512. (Default: Auto)
& Core Fused Max Core Ratio
(Note)
Displays the highest frequency of each core.
& CPU Over Temperature Protection
(Note)
Allowsyoutone-tunetheTJMaxoffsetvalue.(Default:Auto)
& FCLK Frequency for Early Power On
(Note)
Allows you to set the FCLK frequency. Options are: Normal(800Mhz), 1GHz, 400MHz. (Default: 1GHz)
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
