Gigabyte B560M DS3H V2 User Manual

Box Contents
5 B560M DS3H V2 or B560M DS3H PLUS motherboard
5 Motherboard driver disc 5 I/O Shield
5 User's Manual 5 M.2 screws
5 Two SATA cables
- 4 -

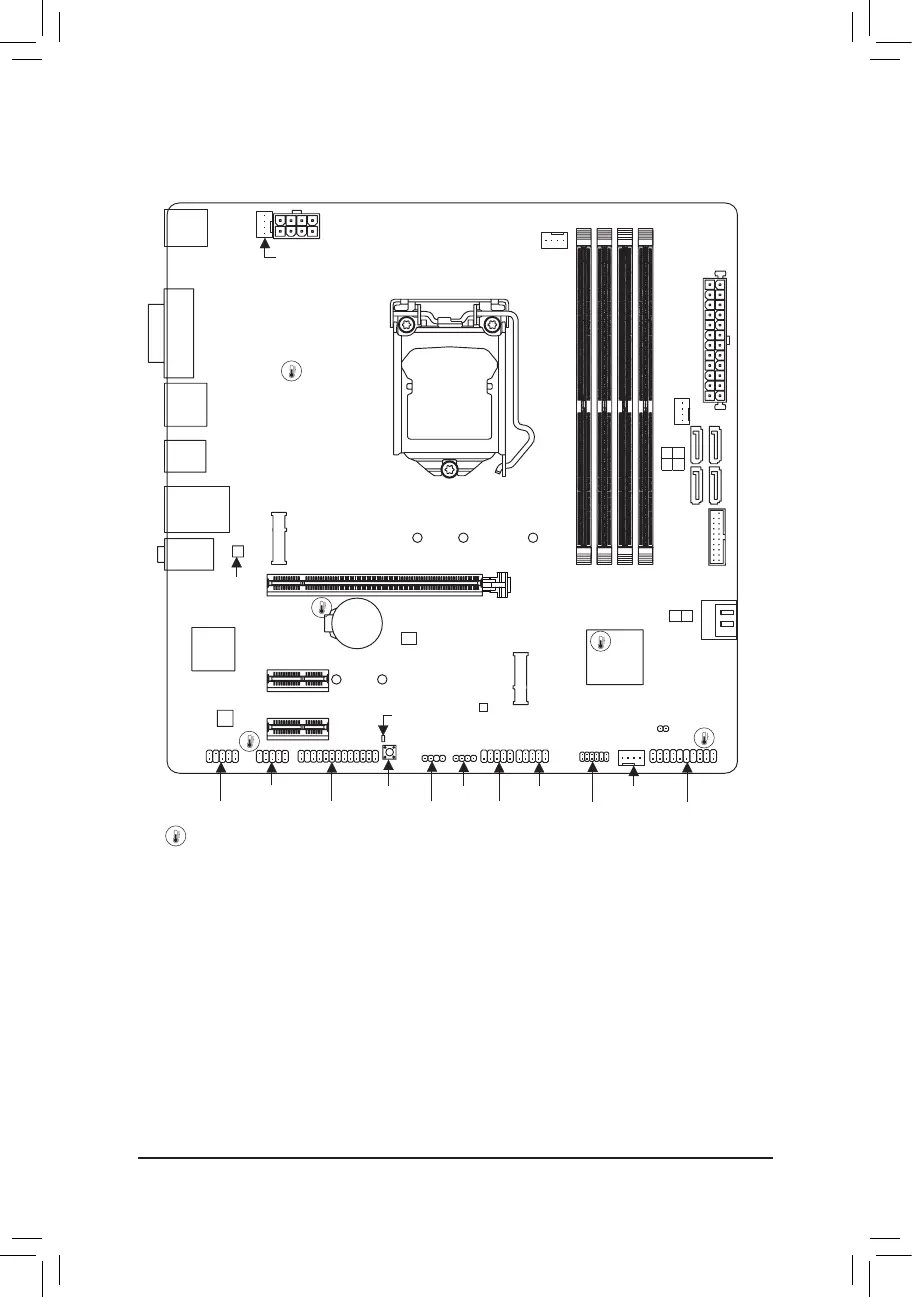

B560M DS3H V2/B560M DS3H PLUS Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you
obtain. The box contents are subject to change without notice.
KB_MS_USB
CPU_FAN
SYS_FAN1
ATX
B560M DS3H V2/B560M DS3H PLUS
F_AUDIO
AUDIO
BAT
ATX_12V_2X4
CODEC
CLR_CMOS
U32_LAN
PCIEX16
PCIEX1_1
iTE
®
Super I/O
Realtek
®
GbE LAN
LED_C1 F_USB1 SYS_FAN3
SPI_TPM F_PANEL
SATA3
1 0 3 2
SATA3
5 4
DVI
80
60
60
80 110
M_BIOS
LPT
QFLASH_PLUS
F_U32
U32C
U32
M2A_SB
M2P_CPU
DDR4_A2 DDR4_A1 DDR4_B1 DDR4_B2
D_LED1
SYS_FAN2
F_USB2
QFLED
PCIEX1_2
DP_HDMI
COM
USB 2.0 Hub
LGA1200
Intel
®
B560
Temperature sensor

Gigabyte B560M DS3H V2 Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Core i5, Intel Core i7, Intel Core i9
Component for	PC
Motherboard chipset	Intel B560 Express
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10
ECC	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	6
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported storage drive interfaces	M.2, SATA III
Harmonized System (HS) code	84733020
Weight	548 g

Weight and Dimensions

Width	244 mm
Height	60 mm
