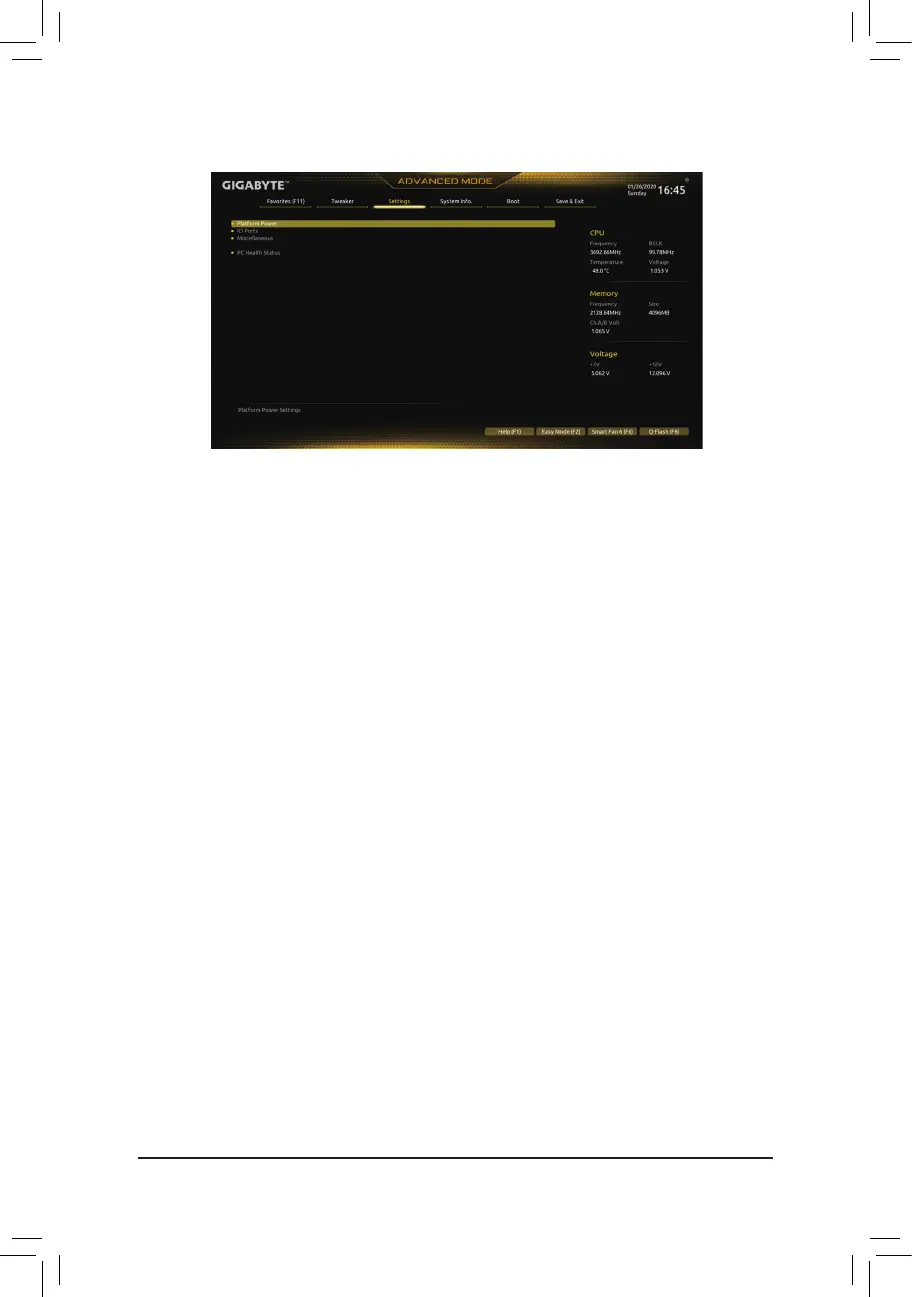

2-6 Settings
 Platform Power
& Platform Power Management
Enables or disables the Active State Power Management function (ASPM). (Default: Disabled)
& PEG ASPM
 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtotheCPUPEGbus.This item is
congurableonlywhenPlatform Power Management is set to Enabled. (Default: Disabled)
& PCH ASPM
 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtoChipset'sPCIExpressbus.Thisitem
iscongurableonlywhenPlatform Power Management is set to Enabled. (Default: Disabled)
& DMI ASPM
 AllowsyoutoconguretheASPMmodeforbothCPUsideandChipsetsideoftheDMIlink.Thisitemis
congurableonlywhenPlatform Power Management is set to Enabled. (Default: Disabled)
& Power On By Keyboard
Allows the system to be turned on by a PS/2 keyboard wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled Disables this function. (Default)
Password Set a password with 1~5 characters to turn on the system.
Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system.
Any Key Press any key to turn on the system.
& Power On Password
Set the password when Power On By Keyboard is set to Password.
Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to accept.
To turn on the system, enter the password and press <Enter>.
Note: To cancel the password, press <Enter> on this item. When prompted for the password, press <Enter>
again without entering the password to clear the password settings.
& Power On By Mouse
Allows the system to be turned on by a PS/2 mouse wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled Disables this function. (Default)
Move Move the mouse to turn on the system.
Double Click Double click on left button on the mouse to turn on the system.
- 29 -

Gigabyte B560M DS3H V2 Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Core i5, Intel Core i7, Intel Core i9
Component for	PC
Motherboard chipset	Intel B560 Express
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10
ECC	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	6
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported storage drive interfaces	M.2, SATA III
Harmonized System (HS) code	84733020
Weight	548 g

Weight and Dimensions

Width	244 mm
Height	60 mm
