- 25 -
System Hardware Installation
3-2 Removing and Installing the Fan Duct
Follow these instructions to remove/install the fan duct:

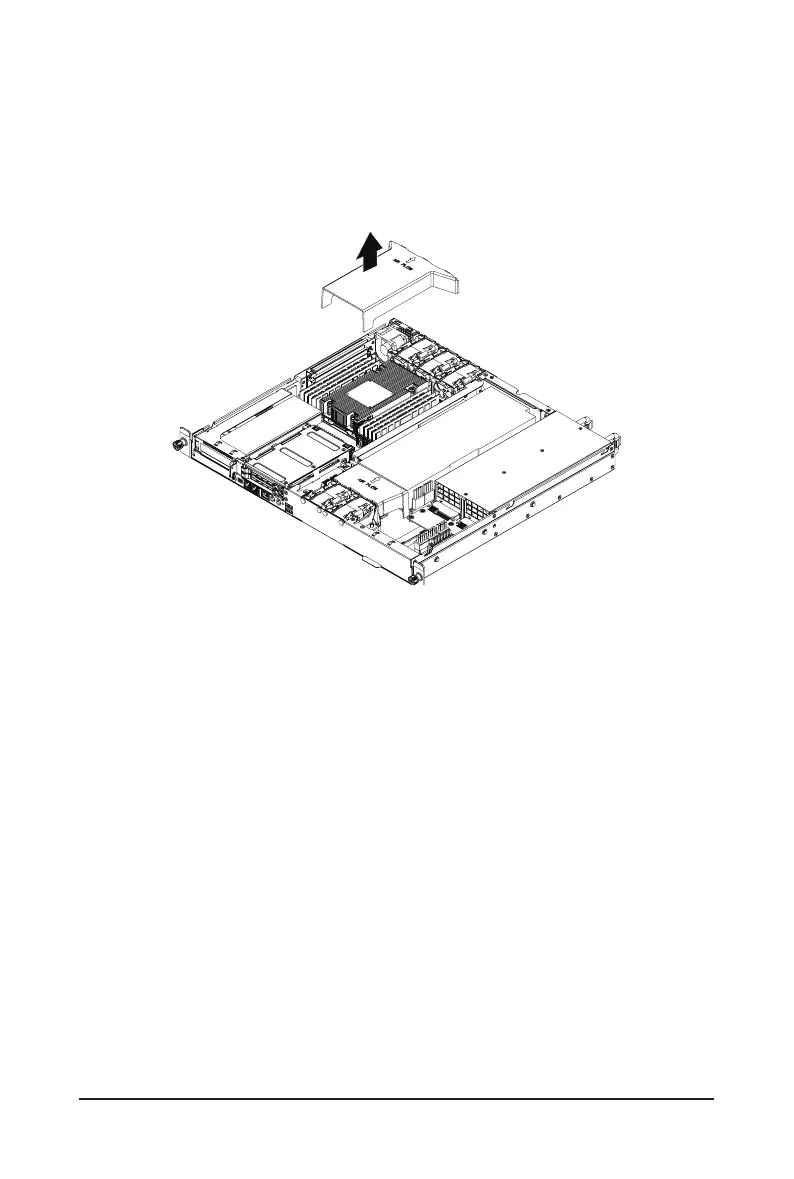

1. Lift up to remove the fan duct
2. To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into
chassis until its rmly seats.
