3-6 Installing the GPU Card
Follow these instructions to install the GPU card:
1. Remove the two screws securing the GPU card slot covers in place and remove the GPU card slot
covers.
2. Insert the GPU card into the selected slot. Make sure the GPU card is properly seated.
3. Install the two screws to secure the GPU card in place.

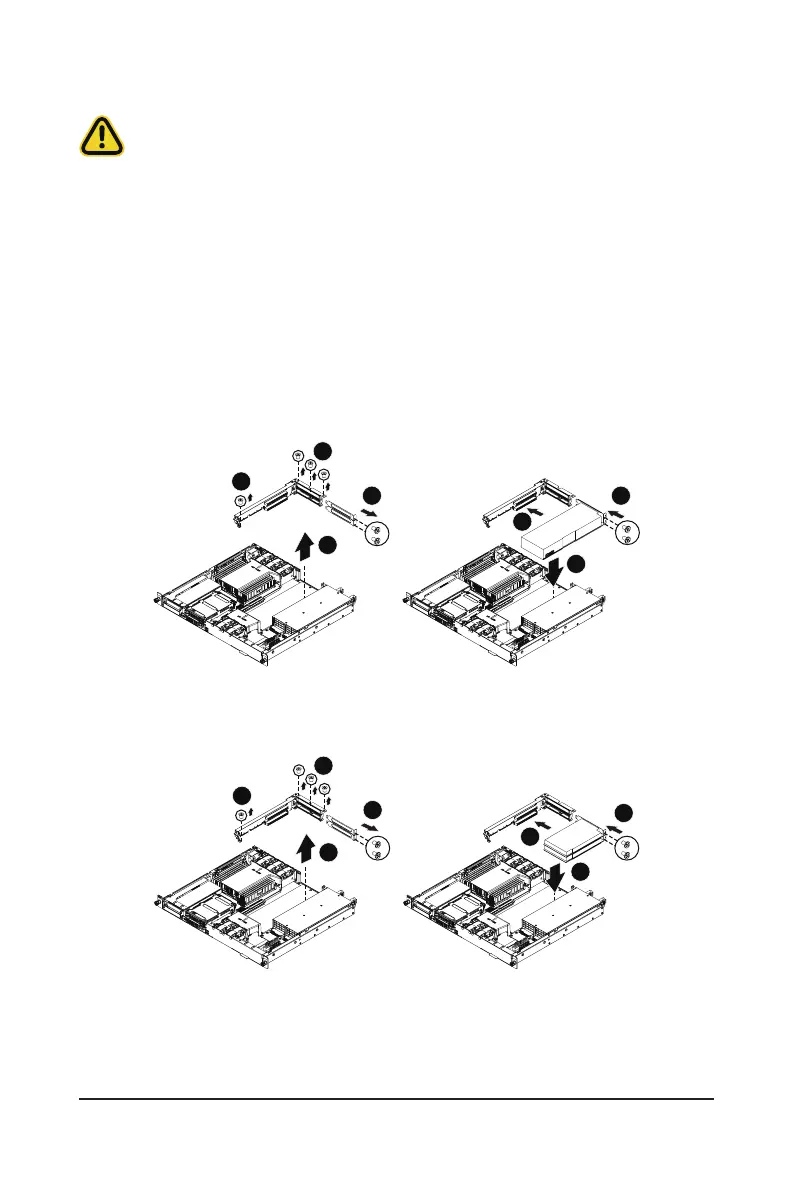

Model 1:
2
1
3
5
6
4
Model 2:
2
1
3
5
4
6
Before you install the GPU card:
l
Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the
system is powered down and all power sources have been disconnected from the server prior to
installing a GPU card. Make sure the system is not turned on or connected to AC power.
l
Failure to observe these warnings could result in personal injury or damage to the equipment.
