- 23 -
System Hardware Installation

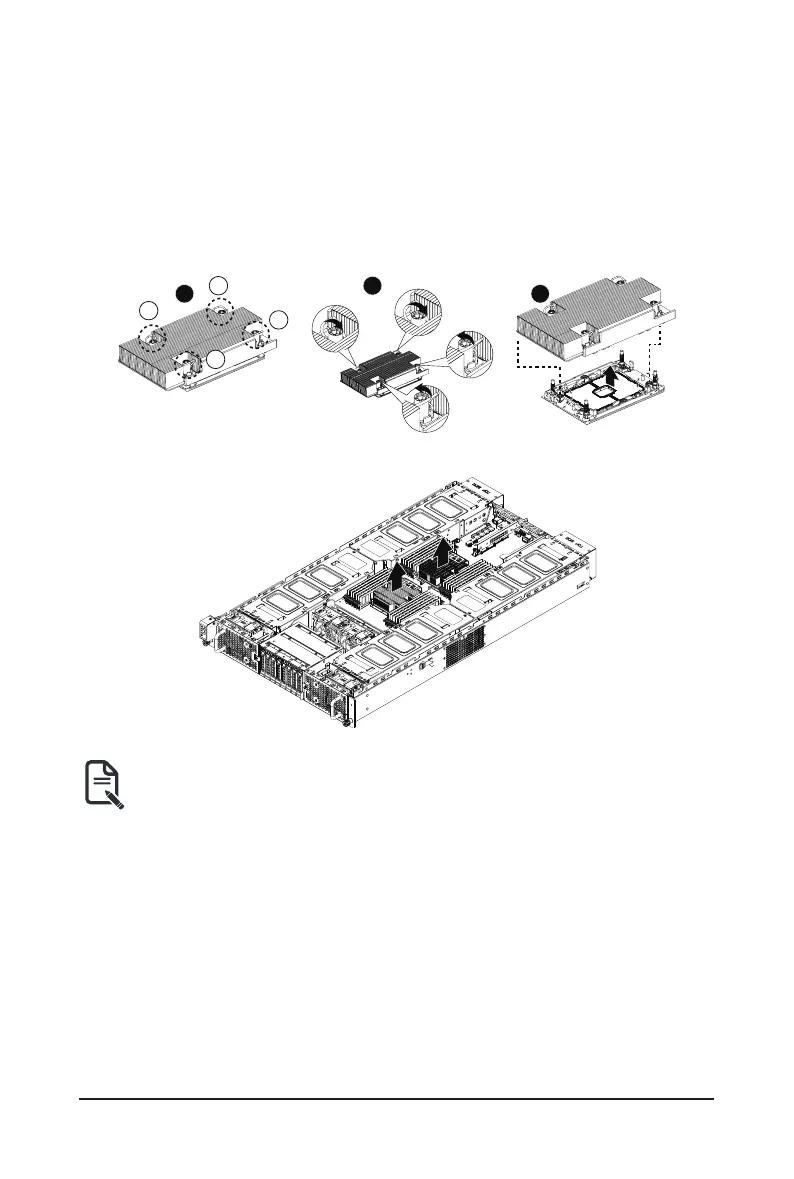

Follow these instructions to remove/install the heat sink:
1. Loosen the captive screws securing the heat sink in place in reverse order (4
g
3
g
2
g
1).
2. Move the rotating wires into the unlatch position.
3. Lift and remove the heat sink from the system.
4. To reinstall the heat sink reverse steps 1-3 while ensuring that you tighten the captive screws in
sequential order (1
g
2
g
3
g
4) as seen in the image below.
3
1
2
4
1
• When installing the heat sink to CPU, use T30-Lobe driver to tighten 4 captive nuts in sequence
as 1-4.
• The screw tightening torque: 8 ± 0.5 kgf-cm.
