Gigabyte G292-2G0 - Installing the GPU Card

- 27 -
System Hardware Installation
3-5 Installing the GPU Card
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the
system is powered-down and all power sources have been disconnected from the server prior to
installing a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
• The PCI riser assembly does not include a riser card or any cabling as standard. To install a PCI
card, a riser card must be installed.

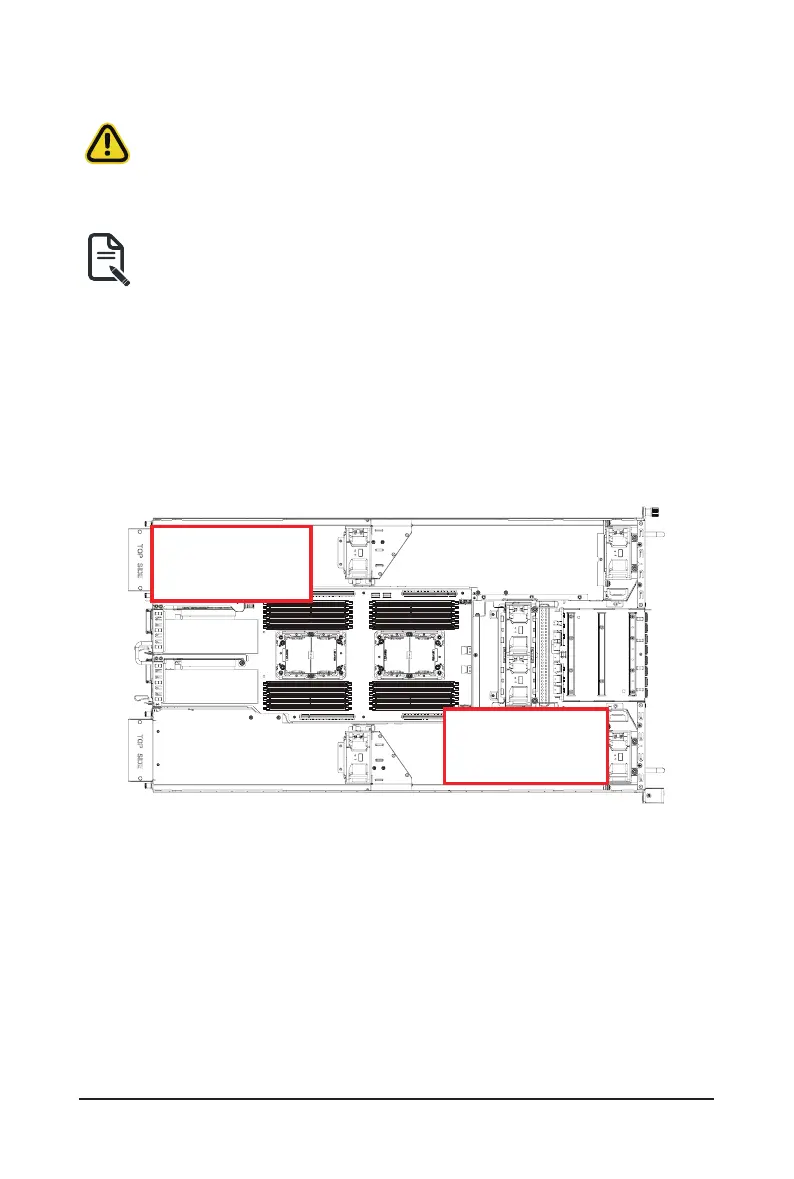

For GPU4/GPU5/GPU6/GPU7/GPU12/GPU13/GPU14/GPU15
Follow these instructions to install the GPU card:
1. [For GPU12/GPU13/GPU14/GPU15] Loosen and remove the two screws securing the PCI cage at
the top of the system.
[For GPU4/GPU5/GPU6/GPU7] Loosen and remove the single screw at the top of the system and
the two screws at the rear of the system securing the PCI cage.
2. Pull the two plastic handles to lift up the PCI cage from the system.
3. Insert the card into the selected slot. Make sure that the card is properly seated.
4. Secure the GPU cards in place with two screws.
Front
Rear
GPU7 (Slot3)
GPU6 (Slot2)
Top: GPU4 (Slot4)
Boom: GPU5 (Slot1)
GPU15 (Slot3)
GPU14 (Slot2)
Top: GPU12 (Slot4)
Boom: GPU13 (Slot1)
