System Hardware Installation
For GPU0/GPU1/GPU2/GPU3/GPU8/GPU9/GPU10/GPU11

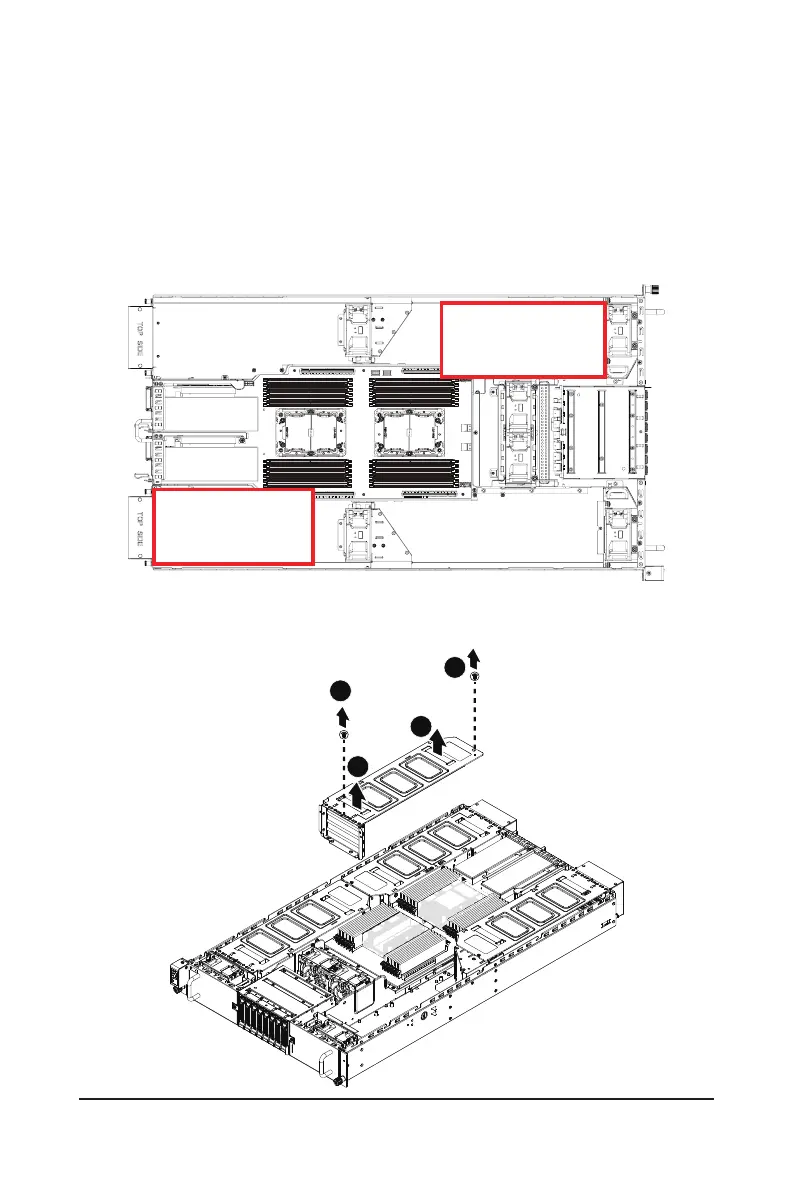

Follow these instructions to install the GPU card:
1. [For GPU8/GPU9/GPU10/GPU11] Loosen and remove the two screws securing the PCI cage at the
top of the system.
[For GPU0/GPU1/GPU2/GPU3] Loosen and remove the single screw at the top of the system and
the two screws at the rear of the system securing the PCI cage.
Pull the two plastic handles to lift up the PCI cage from the system.
2. Insert the card into the selected slot. Make sure that the card is properly seated.
3. Secure the GPU cards in place with two screws.
GPU10 (Slot2)
GPU11 (Slot3)
Top: GPU9 (Slot1)
Boom: GPU8 (Slot4)
GPU2 (Slot2)
GPU3 (Slot3)
Top: GPU1 (Slot1)
Boom: GPU0 (Slot4)
(For GPU8/GPU9/GPU10/GPU11)
1
1
2
2
To Next Page
