- 38 -
System Hardware Installation
2
Airflow
direction
2
Airflow
direction

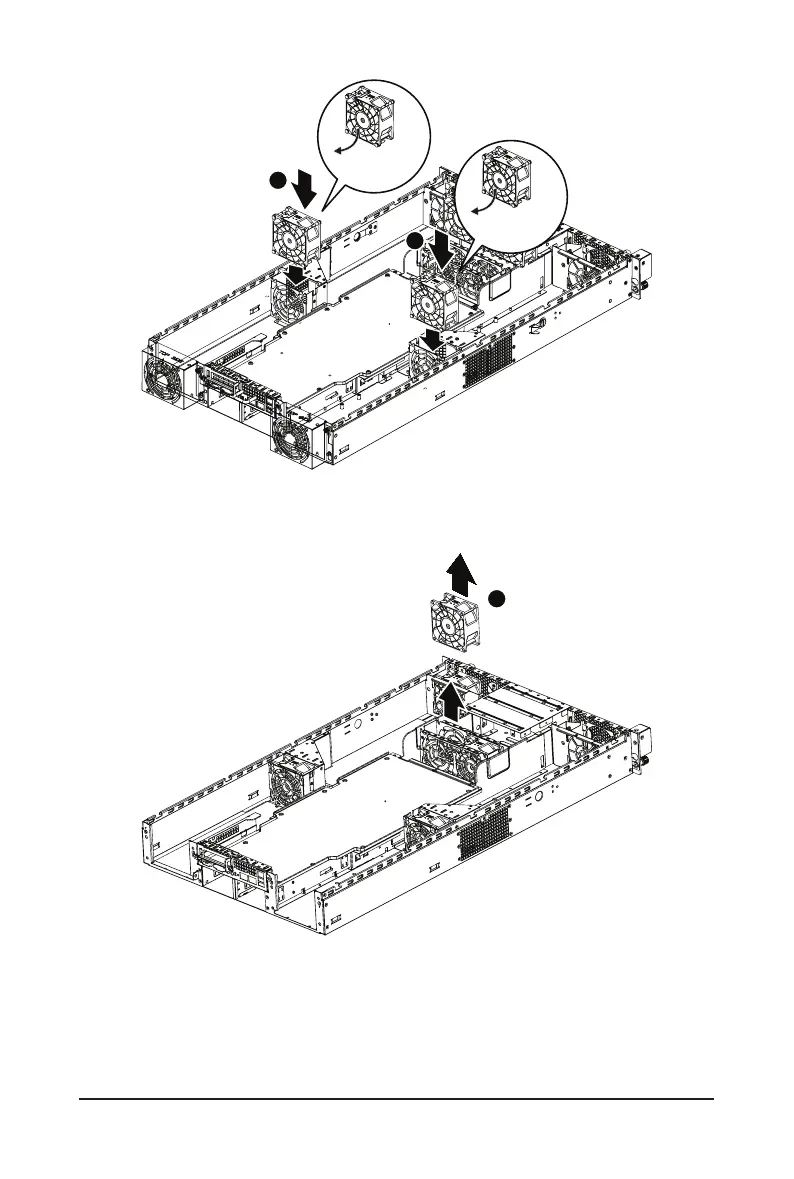

[For SYS_FAN1/SYS_FAN2]
1. Disconnect the fan cable and then lift up the fan assembly from the chassis.
2. Reverse the previous steps to install the replacement fan assembly.
1
