Hardware Installation- 19 -
English

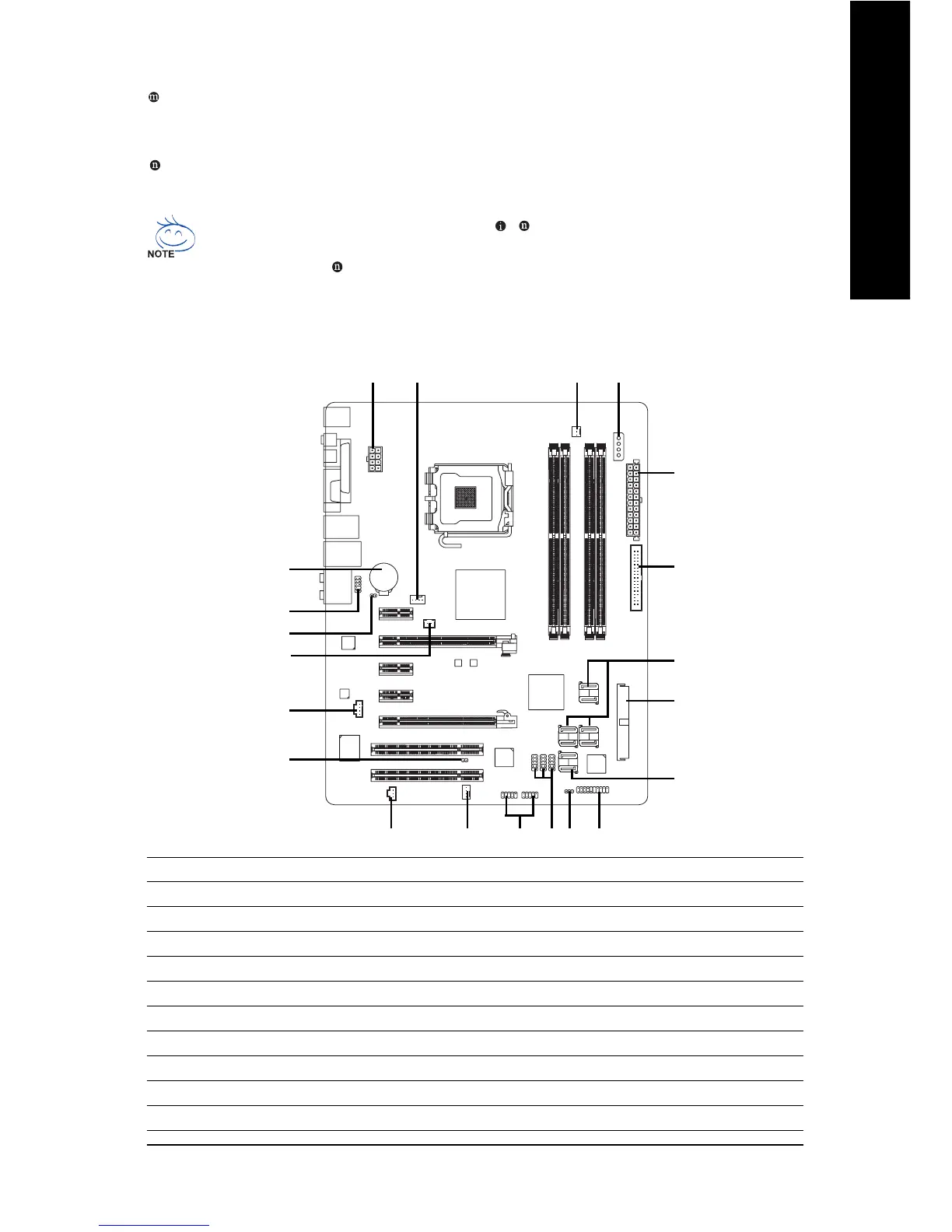

1-7 Connectors Introduction
Line Out (Front Speaker Out)
The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.
MIC In
The default MIC In jack. Microphone must be connected to MIC In jack.
In addition to the default speakers settings, the ~ audio jacks can be reconfigured to perform
different functions via the audio software. Only microphones still MUST be connected to the
default Mic In jack ( ). Please refer to the 2-/4-/6-/8- channel audio setup steps for detailed
software configuration information.
1) ATX_12V_2X
2) ATX (Power Connector)
3) PCIE_12V
4) CPU_FAN
5) SYS_FAN
6) PWR_FAN
7) NB_FAN
8) FDD
9) IDE
10) SATAII0 / 1 / 2 / 3 / 4 / 5
11) GSATAII0 / GSATAII1
12) PWR_LED
13) BATTERY
14) F_AUDIO
15) F_PANEL
16) CD_IN
17) SPDIF_IN
18) F_USB1 / F_USB2 / F_USB3
19) F1_1394 / F2_1394
20) CI
21) CLR_CMOS
2
1 4
19
8
10
9
14
17
16
5 12
6
3
11
1518
21
13
20
7
