Gigabyte GA-965P-DS3P User Manual

GA-965P-DS3P Motherboard - 24 -
English

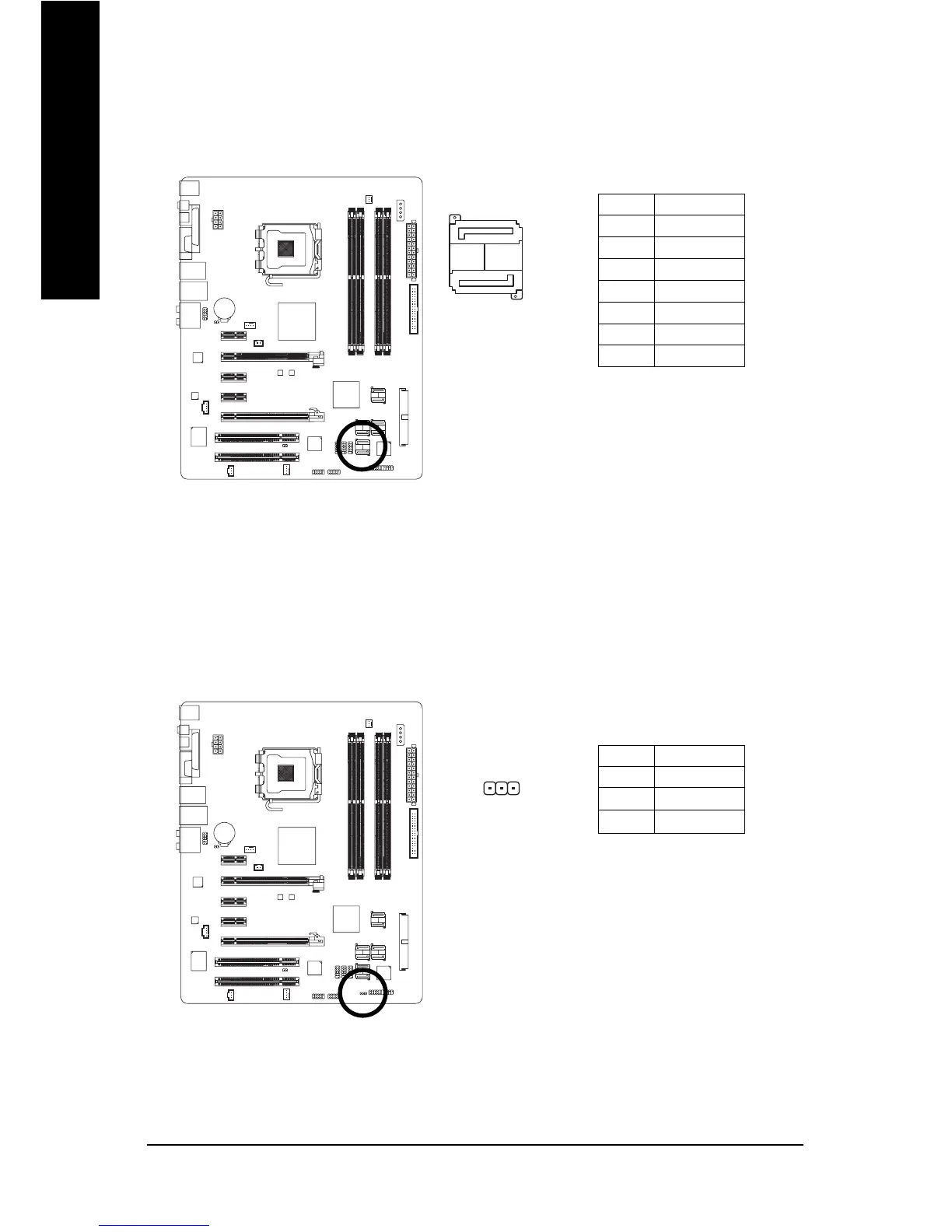

12) PWR_LED
The PWR_LED connector is connected with the system power indicator to indicate whether the
system is on/off. It will blink when the system enters suspend mode(S1).
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
1
11) GSATAII0 / GSATAII1 (SATA 3Gb/s Connector, Controlled by GIGABYTE SATA2)
SATA 3Gb/s can provide up to 300 MB/s transfer rate. Please refer to the BIOS setting for the SATA
3Gb/s and install the proper driver in order to work properly.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7
1
7
1
GSATAII0
GSATAII1
