Gigabyte GA-F2A55M-DS2 User Manual

- 23 -
Setup Menus
Function Keys
Help
Enter Q-Flash
Conguration Items
Current Settings
2-2 The Main Menu

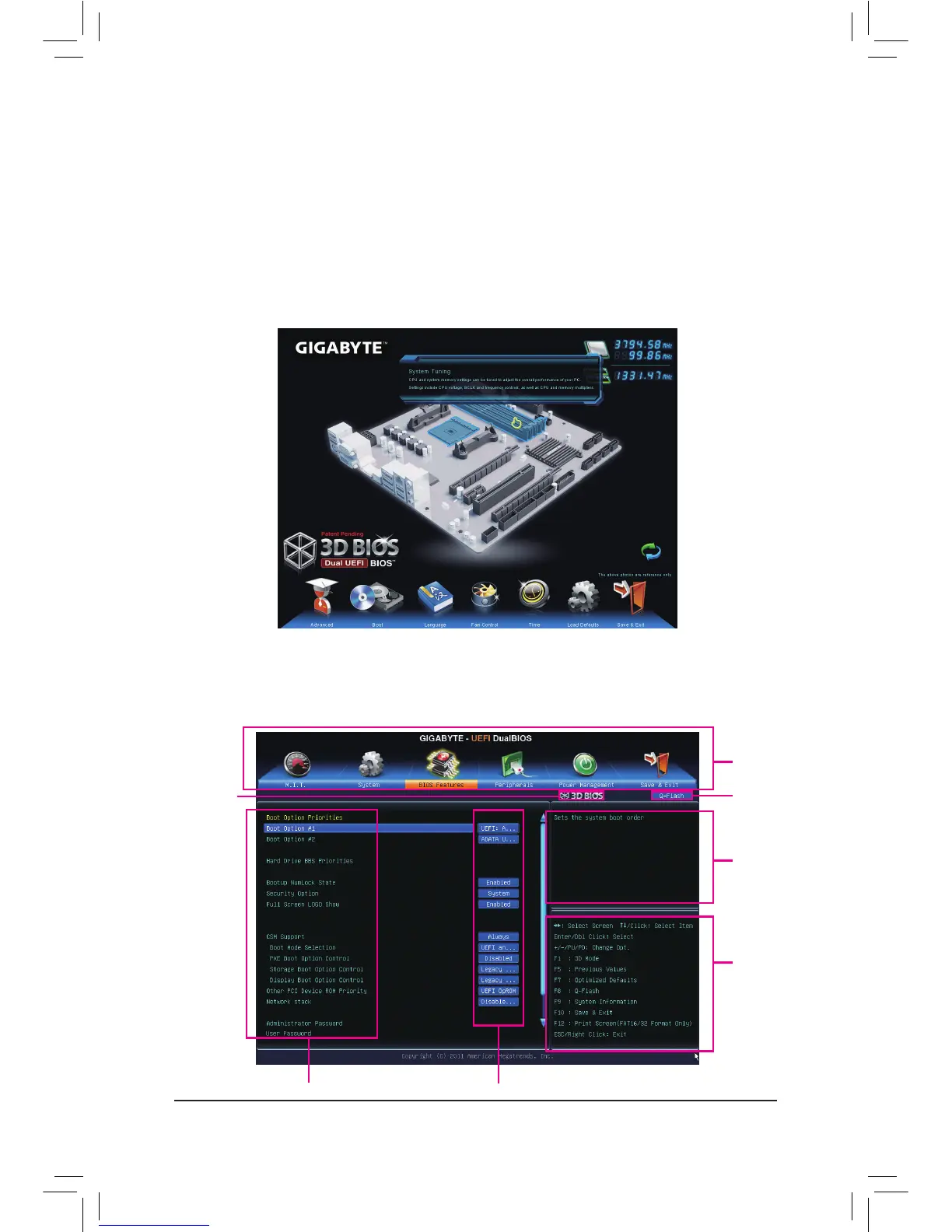

A. The 3D BIOS Screen (Default)
On GIGABYTE's uniquely designed 3D BIOS screen, you can use your mouse to move through the motherboard
image and click to enter the function menu in each area for quick conguration. For example, pass your mouse
arrow over the CPU and memory sockets and enter the System Tuning menu to congure CPU/memory
frequency, memory timings, and voltage settings. For more detailed conguration items, you can click the
function menu icons at the bottom of the screen or press <F1> to switch to the main menu of the BIOS Setup
program. (If a mouse is not connected, the 3D BIOS screen will automatically switch to the main menu of the
BIOS Setup Program.)
B. The Main Menu of the BIOS Setup Program
On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter>
to accept or enter a sub-menu. Or you can use your mouse to select the item you want.
(Sample BIOS Version: F1b)
Switch to
3D BIOS
screen

Gigabyte GA-F2A55M-DS2 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket FM2
Processor manufacturer	AMD
Compatible processor series	AMD A
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
PCI Express slots version	2.0
PCI Express configurations	1x1, 1x16
Graphics card	Radeon HD 7000
DirectX version	11
Maximum resolution	2560 x 1600 pixels
Parallel processing technology support	Not supported
Trial software	Norton Internet Security
Cables included	SATA
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	174 mm
Width	225 mm
