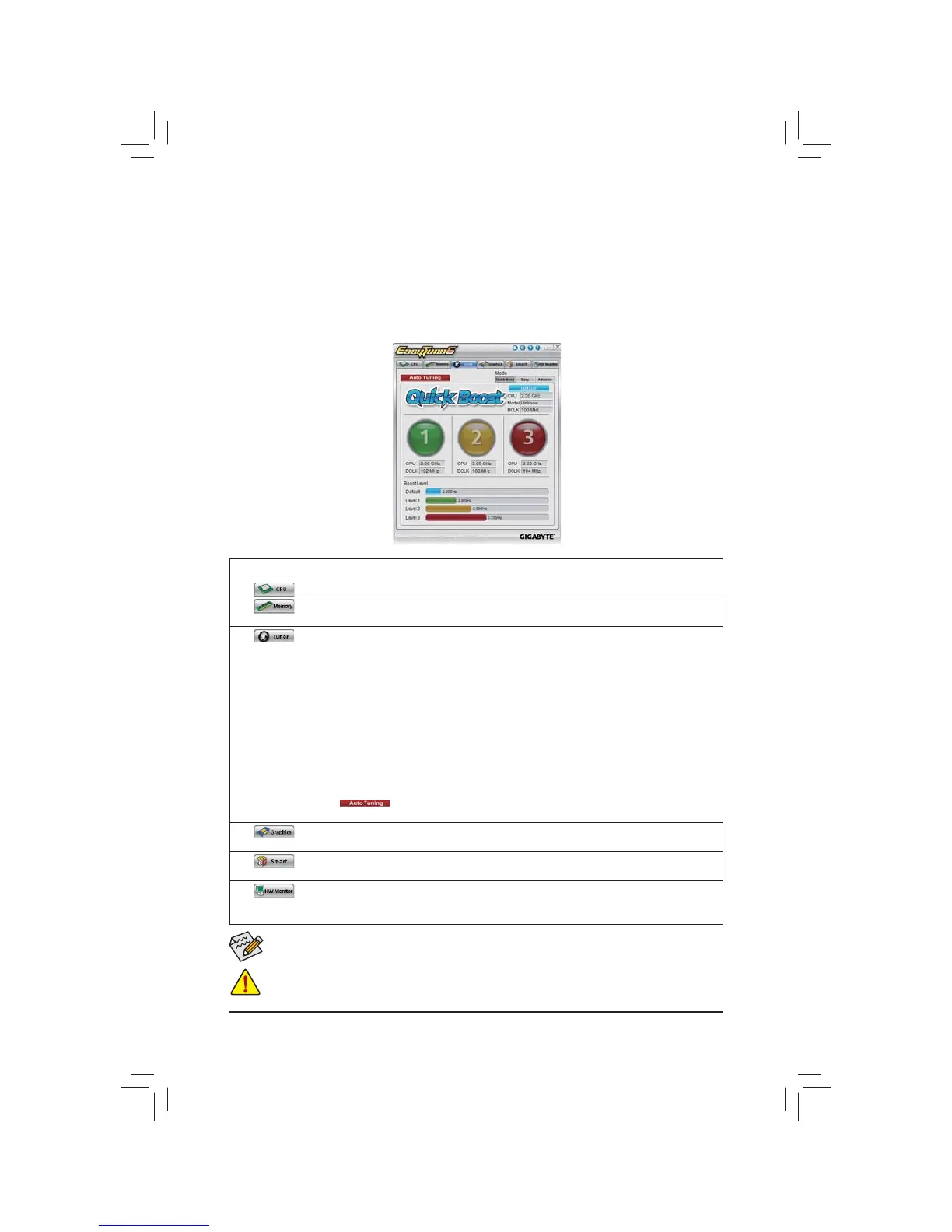

- 63 - Unique Features
4-2 EasyTune 6
*,*$%<7(V(DV\7XQHLV DVLPSOHDQG HDV\WRXVHLQWHUIDFHWKDWDOORZVXVHUV WR¿QHWXQHWKHLU V\VWHP
settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also
includes tabbed pages for CPU and memory information, letting users read their system-related information
without the need to install additional software.
The EasyTune 6 Interface
Available functions in EasyTune 6 may differ by motherboard model. Grayed-out area(s) indicates that the item is not
FRQ¿JXUDEOHRUWKHIXQFWLRQLVQRWVXSSRUWHG
Incorrectly doing overclock/overvoltage may result in damage to the hardware components such as CPU, chipset, and
memory and reduce the useful life of these components. Before you do the overclock/overvoltage, make sure that you
fully know each function of EasyTune 6, or system instability or other unexpected results may occur.
Tabs Information
Tab Function
The CPU tab provides information on the installed CPU and motherboard.
The Memory tab provides information on the installed memory module(s). You can select memory
PRGXOHRQDVSHFL¿FVORWWRVHHLWVLQIRUPDWLRQ
The Tuner tab allows you to change memory settings and voltages.
Quick Boost mode provides you with 3 levels of CPU frequency/base clock to choose to achieve
desired system performance.
After making changes in Quick Boost mode or clicking Default to restore to default values, be
sure to restart your system for these changes to take effect.
Easy mode provides information on CPU/memory.
Advanced mode allows you to individually change system clock settings and voltages settings
using the sliders.
SaveDOORZV\RXWRVDYHWKHFXUUHQWVHWWLQJVWRDQHZSUR¿OHW[W¿OH
LoadDOORZV\RXWRORDGSUHYLRXVVHWWLQJVIURPDSUR¿OH
After making changes in Easy mode/Advanced mode, be sure to click Set for these changes to take
effect or click Default to restore to default values.
The
button automatically provides you with the fastest and most stable frequency to
enhance system performance.
The Graphics tab allows you to change the core clock and memory clock for your AMD or NVIDIA
graphics card.
The Smart tab allows you to specify a Smart Fan mode. Smart Fan Advanced mode allows the fan
speed to be changed linearly based on the temperature thresholds you set.
The HW Monitor tab allows you to monitor hardware temperature, voltage and fan speed and set
temperature/fan speed alarm. You can choose the alert sound from the buzzer or use your own sound
¿OHZDY¿OH
