- 7 -

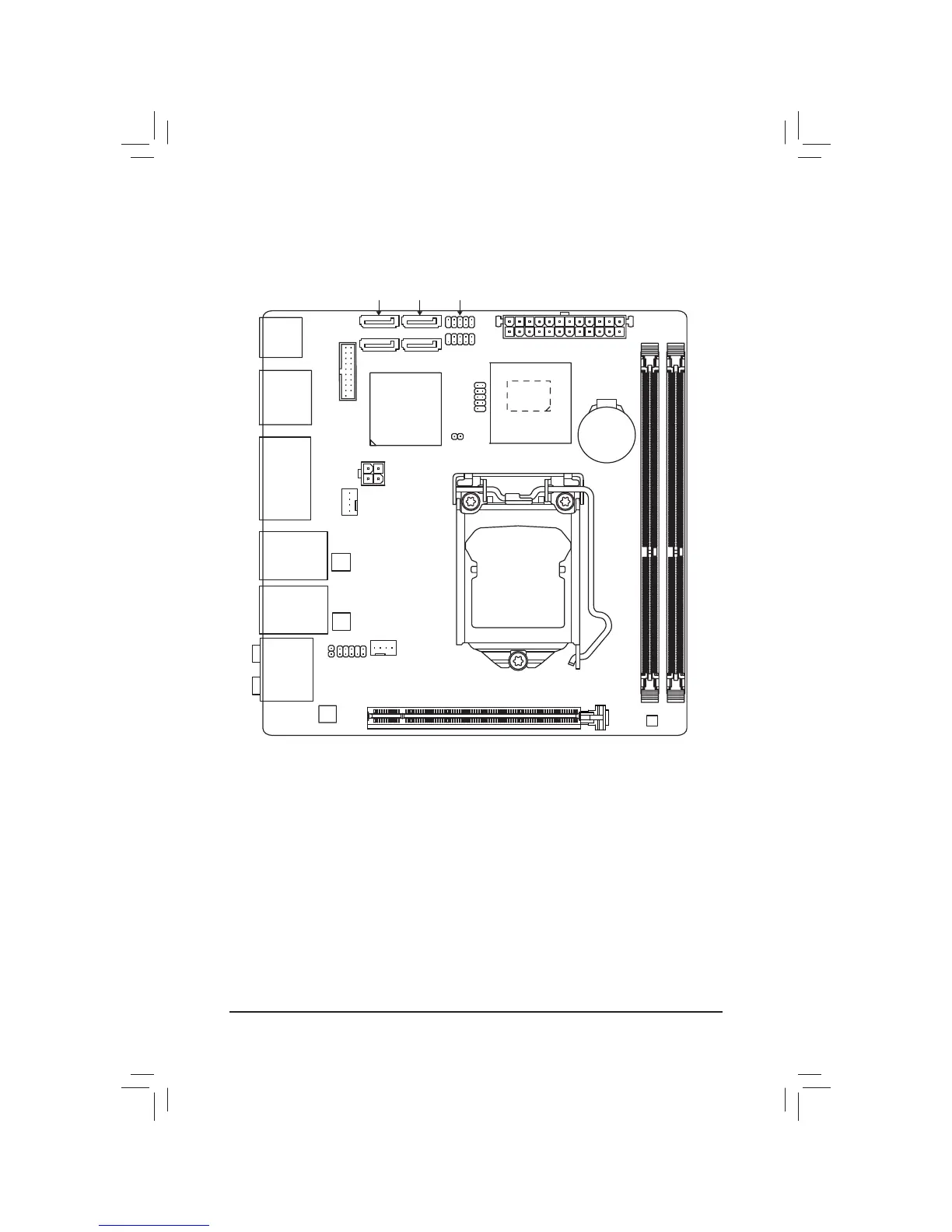

GA-Z77N-WIFI/GA-H77N-WIFI Motherboard Layout
(Note) The chip is located on the back of the motherboard.
KB_USB3
F_USB30
COM
DOUBLE_HDMI
CPU_FAN
LGA1155
ATX
GA-Z77N-WIFI
GA-H77N-WIFI
F_AUDIO
AUDIO
B_BIOS
M_BIOS
PCIEX16
DDR3_1
DDR3_2
BAT
ATX_12V
Intel
®
Z77 M
Intel
®
H77 N
DVI
ANTENNA_BRACKET
USB_LAN1
USB_LAN2
CODEC
SATA2_3
SATA2_2
SATA3_0
SATA3_1
CLR_CMOS
F_PANEL
iTE
Super I/O
(Note)
F_USB1
WIFI Module
SYS_FAN
SPDIF_O
Realtek
GbE LAN
Realtek
GbE LAN
M Only for GA-Z77N-WIFI.
N Only for GA-H77N-WIFI.

Other manuals for Gigabyte GA-H77N-WIFI

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte GA-H77N-WIFI and is the answer not in the manual?

Gigabyte GA-H77N-WIFI Specifications

General IconGeneral
Memory voltage1.5 V
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR3-SDRAM
Maximum internal memory16 GB
Supported memory clock speeds800, 1066, 1333, 1600 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
CPU fan connectorYes
Number of Parallel ATA connectors0
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 ports quantity4
Audio chipRealtek ALC892
Component forPC
Power source typeATX
Motherboard chipsetIntel H77
Audio output channels7.1 channels
Motherboard form factormini ITX
Compatible operating systemsWindows 8/7/XP
Supported storage drive interfacesSATA II, SATA III
Parallel processing technology support-
Networking featuresGigagit Ethernet, WLAN
Ethernet interface typeGigabit Ethernet
BIOS typeEFI AMI
Bundled softwareNorton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Weight and Dimensions IconWeight and Dimensions
Width170 mm
