Gigabyte GA-M61PME-S2P User Manual

Hardware Installation- 27 -

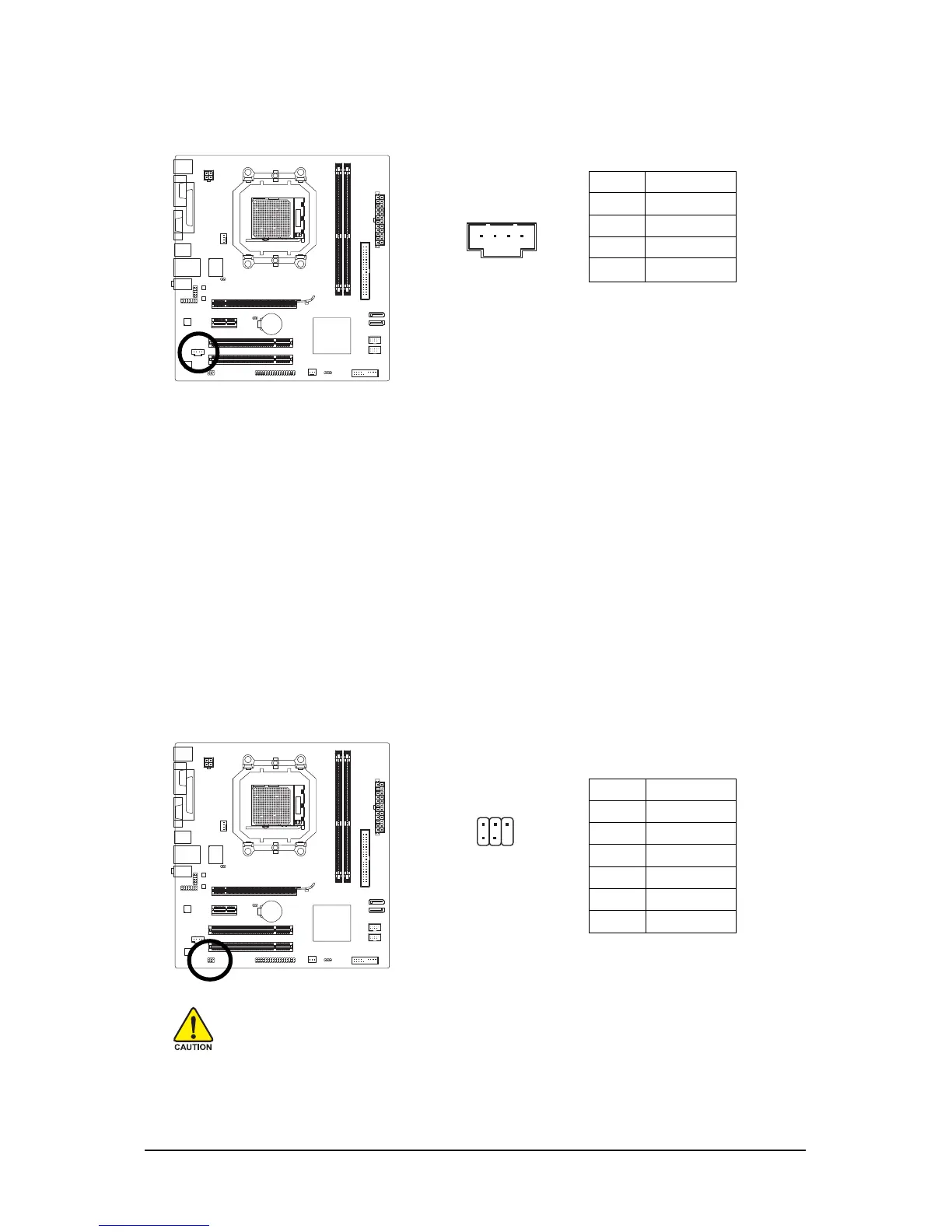

14) SPDIF_IO (S/PDIF Out Header)
This header supports digital S/PDIF out. Via an optional S/PDIF out cable, this header can connect
to an audio device that supports digital audio in. For purchasing the optional S/PDIF out cable,
please contact the local dealer.
Pin 1 (the red wire) of the S/PDIF out cable must align with pin 1 of the SPDIF_IO header.
Incorrect connection may render the device unusable or even result in damage to the
device.
13) CD_IN (CD In Connector)
You may connect the audio cable that came with your optical drive to the header.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
1
62
5
Pin No. Definition
1 Power
2 No Pin
3 SPDIF
4 SPDIFI
5 GND
6 GND

Gigabyte GA-M61PME-S2P Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of Parallel ATA connectors	1
Special features	@BIOS Download Center Q-Flash Virtual Dual BIOS EasyTune(Note 4) Xpress Install Xpress Recovery2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP
Bundled software	Norton Internet Security (OEM version)
LAN controller	Realtek RTL8201CL
Networking features	10/100 Mbit
Graphics card	GeForce 6100

Weight and Dimensions

Depth	225 mm
Width	244 mm
