Gigabyte GA-M61PME-S2P User Manual

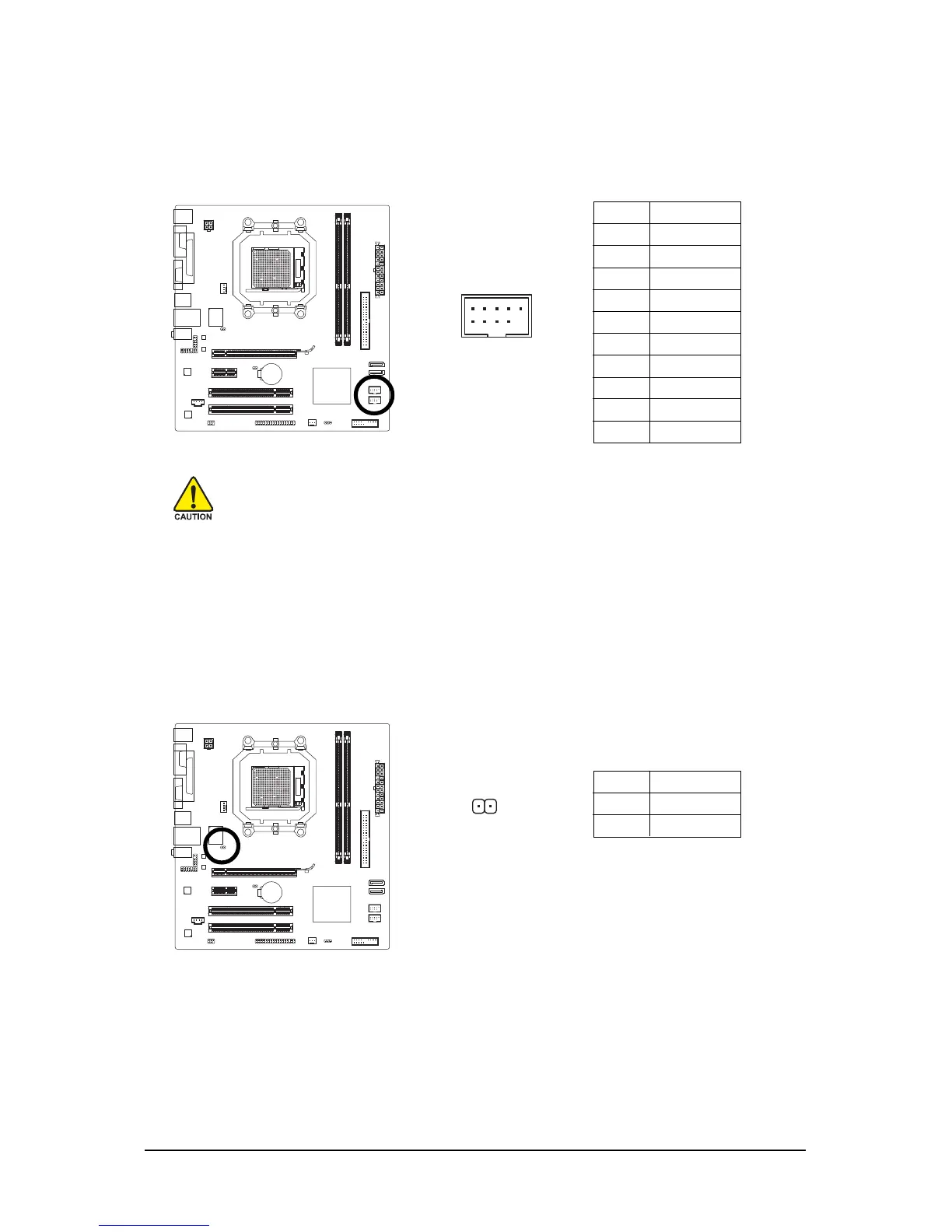

GA-M61PME-S2P Motherboard - 28 -
16) CI (Chassis Intrusion Header)
This motherboard provides a chassis detection feature that detects if the chassis cover has been
removed. This function requires a chassis with chassis intrusion detection design.
Pin No. Definition
1 Signal
2 GND
1
15) F_USB1/F_USB2 (USB Headers)
The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports
via an optional USB bracket. For purchasing the optional USB bracket, please contact the local
dealer.
Pin No. Definition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 NC
• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header.
• Prior to installing the USB bracket, be sure to turn off your computer and unplug the
power cord from the power outlet to prevent damage to the USB bracket.
10
9
2
1

Gigabyte GA-M61PME-S2P Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of Parallel ATA connectors	1
Special features	@BIOS Download Center Q-Flash Virtual Dual BIOS EasyTune(Note 4) Xpress Install Xpress Recovery2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP
Bundled software	Norton Internet Security (OEM version)
LAN controller	Realtek RTL8201CL
Networking features	10/100 Mbit
Graphics card	GeForce 6100

Weight and Dimensions

Depth	225 mm
Width	244 mm
