Gigabyte GA-Z97P-D3 User Manual

- 4 -

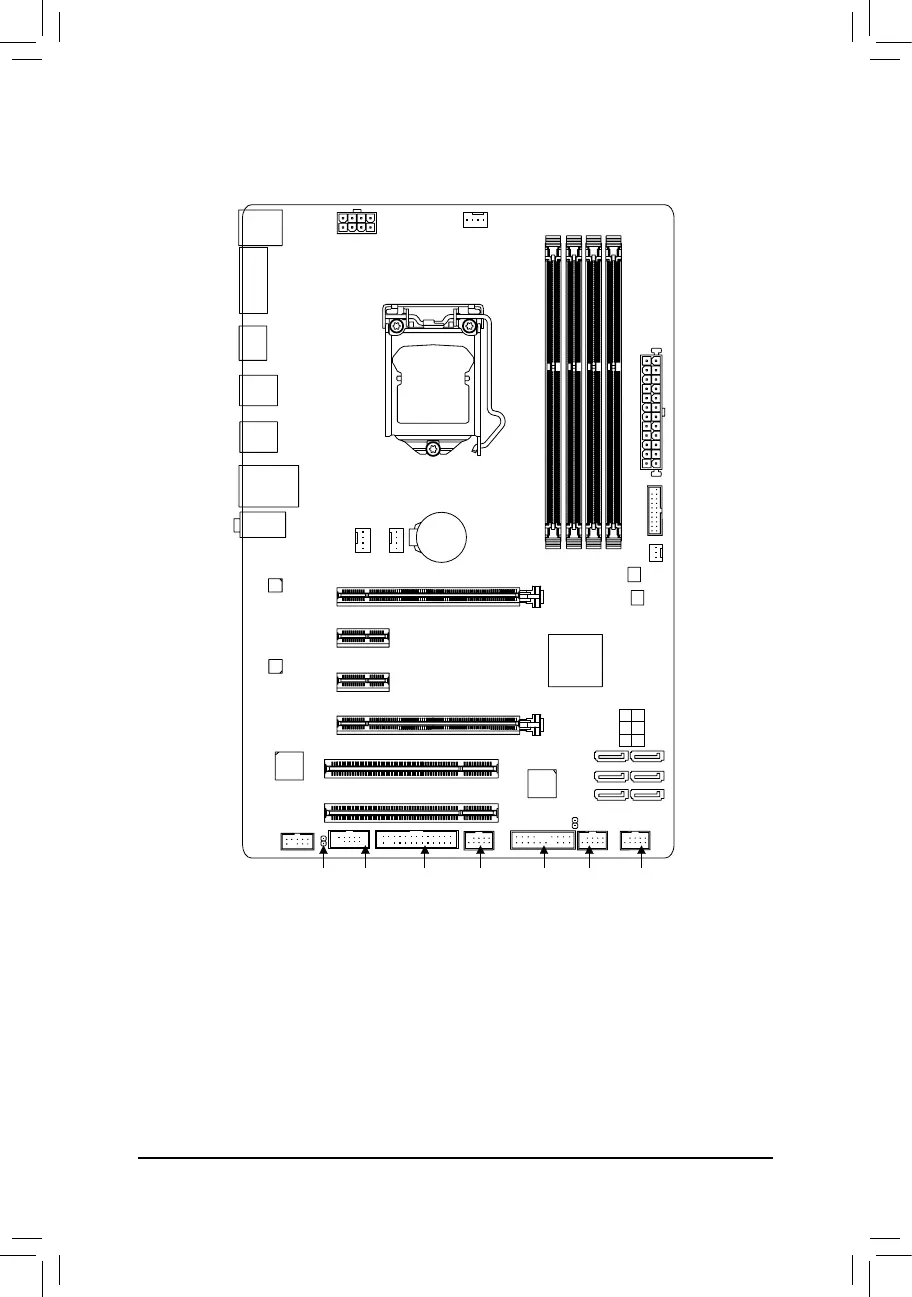

GA-Z97P-D3 Motherboard Layout
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 GA-Z97P-D3 motherboard
5 Motherboard driver disk 5 Two SATA cables
5 User's Manual 5 I/O Shield
KB_MS
CPU_FAN
LGA1150
ATX
F_USB30
AUDIO
DDR3_4 DDR3_2 DDR3_3 DDR3_1
BAT
ATX_12V_2X4
Intel
®
Z97
CODEC
CLR_CMOS
M_BIOS
B_BIOS
COMA
HDMI
USB_LAN
Realtek
®
GbE LAN
PCIEX16
PCIEX1_1
PCIEX4
SYS_FAN1
SYS_FAN3
iTE
®
Super I/O
PCIe to PCI
Bridge
GA-Z97P-D3
R_USB
R_USB30
F_USB1F_PANEL F_USB2
F_AUDIO
SPDIF_O LPTCOMB F_USB3
SYS_FAN2
PCI1
PCI2
SATA3
5 3 1 4 2 0
PCIEX1_2

Gigabyte GA-Z97P-D3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA connectors	6
Number of SATA II connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® Z97
Audio output channels	7.1 channels
Motherboard form factor	ATX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1000 MB
Parallel processing technology support	2-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	200 mm
Width	305 mm
