Gigabyte GA-Z97P-D3 User Manual

- 5 -

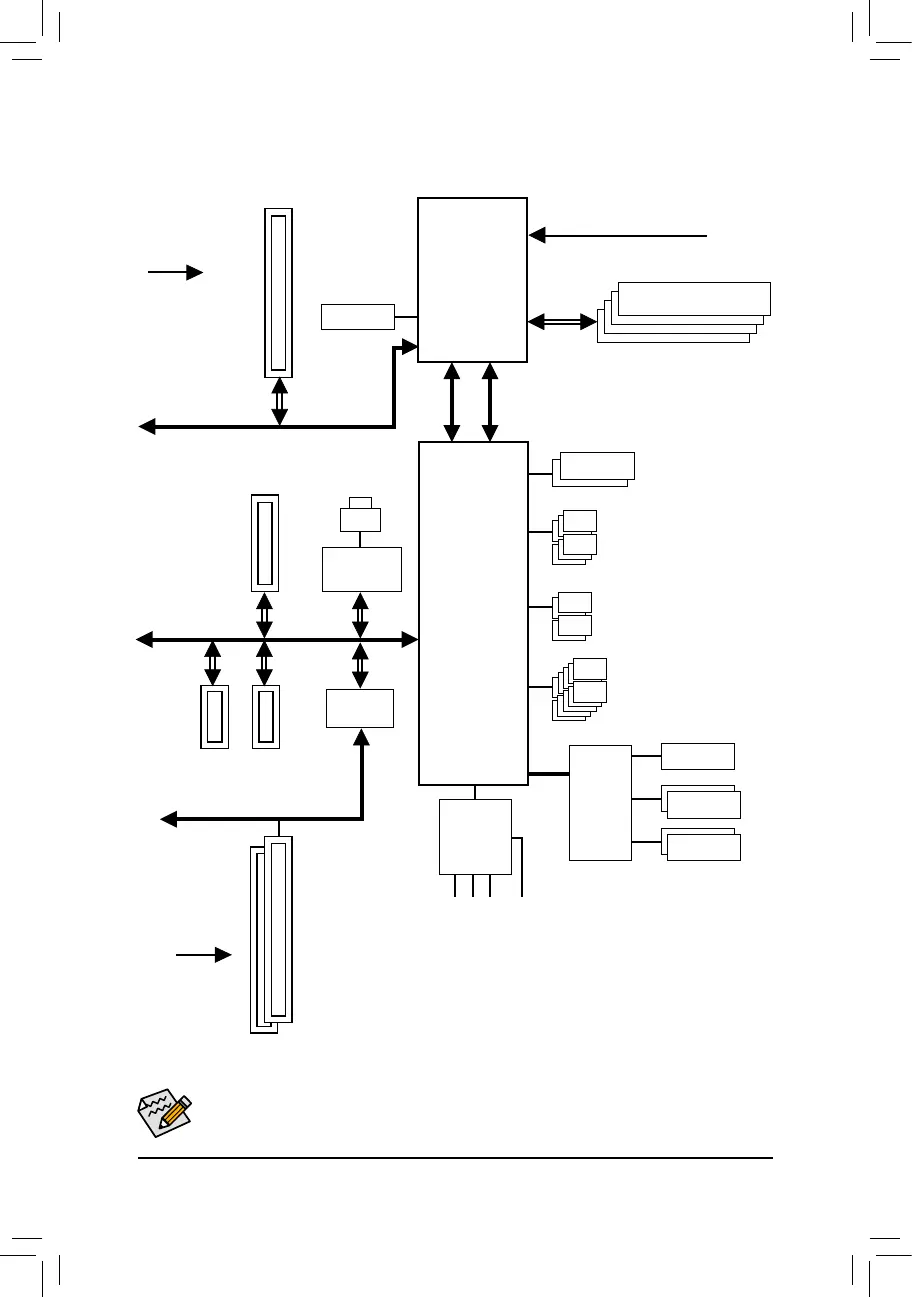

GA-Z97P-D3 Motherboard Block Diagram

PS/2 KB/Mouse
iTE
®
Super I/O
Intel
®
Z97

PCI Express Bus
LAN
RJ45
Realtek
®
GbE LAN
10 USB 2.0/1.1
4 USB 3.0/2.0
Dual BIOS
6 SATA 6Gb/s
x1
DMI 2.0
FDI
HDMI
x4
1 PCI Express x4
PCI Express Bus
PCIe CLK

PCI CLK

x16
1 PCI Express x16
2 PCI
PCIe to PCI
Bridge
x1
LPC
Bus




CODEC
S/PDIF Out
COM
LPT
2 PCI Express x1
x1x1

Dual Channel Memory
LGA1150 CPU

Gigabyte GA-Z97P-D3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA connectors	6
Number of SATA II connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® Z97
Audio output channels	7.1 channels
Motherboard form factor	ATX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1000 MB
Parallel processing technology support	2-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	200 mm
Width	305 mm
