Gigabyte H310M DS2V DDR3 User Manual

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

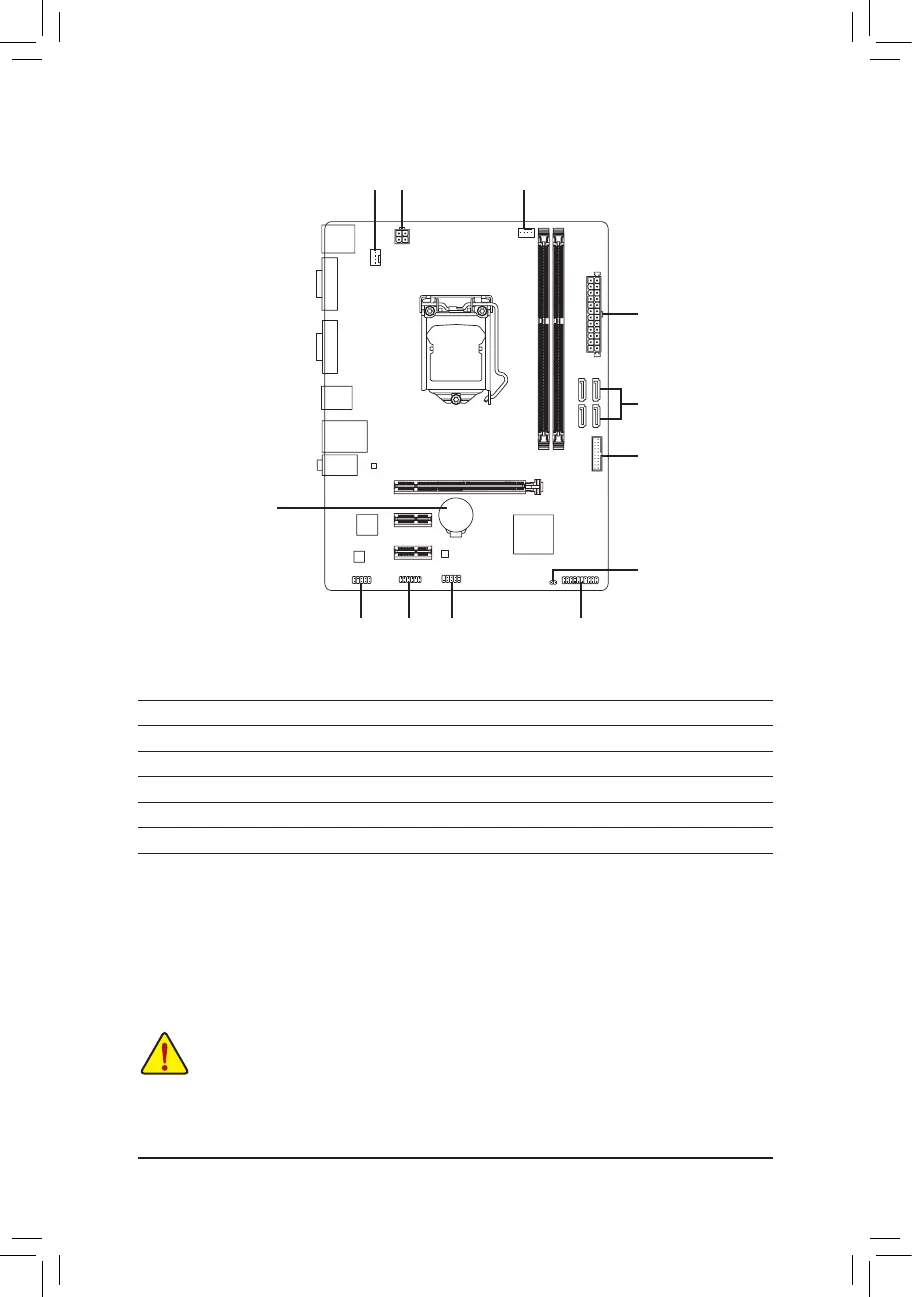

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) SATA3 0/1/2/3
6) F_PANEL
7) F_AUDIO
8) F_USB30
9) F_USB
10) TPM
11) CLR_CMOS
12) BAT
4 1 3
2
8
11
9
12
6107
5
- 12 -

Gigabyte H310M DS2V DDR3 Specifications

General

Max Memory	32 GB
Memory Architecture	Dual Channel
Dimensions	22.6cm x 17.4cm
CPU	Supports 8th and 9th Gen Intel Core i7/i5/i3/Pentium/Celeron processors
Chipset	Intel H310
Memory Slots	2
Memory Type	DDR3
Graphics	Integrated Graphics Processor- Intel® HD Graphics support
Audio	Realtek® ALC887 codec
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	4
USB Ports	4 x USB 3.1 Gen 1 (2 on back panel, 2 via internal header), 6 x USB 2.0/1.1 (2 on back panel)
Back Panel Connectors	1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 2 x USB 3.1 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.1 Gen 1 header; 1 x serial port header; 1 x Clear CMOS jumper
Form Factor	Micro ATX
Video Outputs	D-Sub
