Gigabyte H310M DS2V DDR3 User Manual

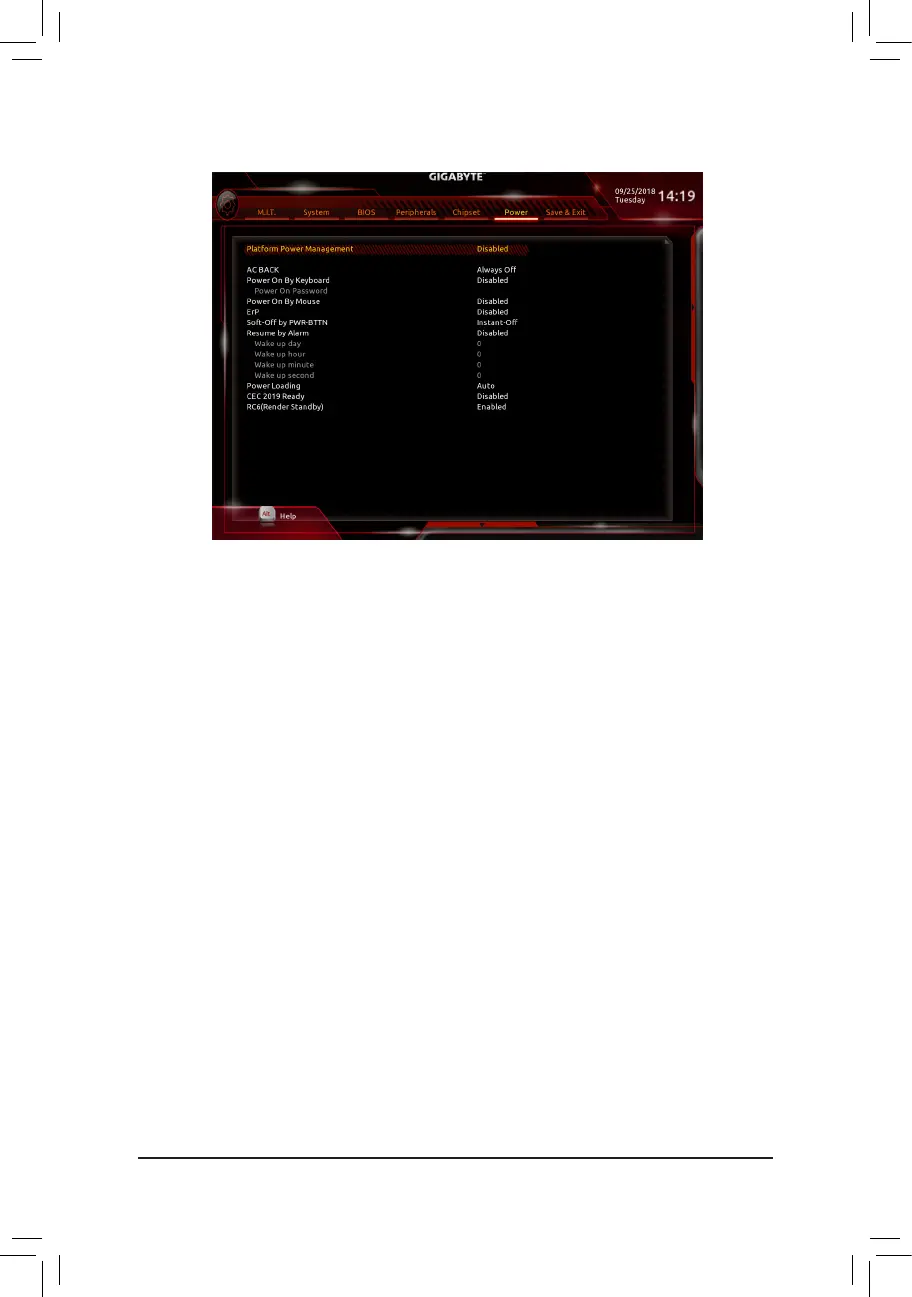

& Platform Power Management
Enables or disables the Active State Power Management function (ASPM). (Default: Disabled)
& PEG ASPM
 Allowsyouto congure theASPMmodeforthe device connectedtotheCPUPEG bus.Thisitem is
congurableonlywhenPlatform Power Management is set to Enabled. (Default: Enabled)
& PCH ASPM
 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtoChipset'sPCIExpressbus.Thisitem
iscongurableonlywhenPlatform Power Management is set to Enabled. (Default: Enabled)
& DMI ASPM
 AllowsyoutoconguretheASPMmodeforbothCPUsideandChipsetsideoftheDMIlink.Thisitemis
congurableonlywhenPlatform Power Management is set to Enabled. (Default: Enabled)
& AC BACK
Determines the state of the system after the return of power from an AC power loss.
Memory The system returns to its last known awake state upon the return of the AC power.
Always On The system is turned on upon the return of the AC power.
Always Off The system stays off upon the return of the AC power. (Default)
& Power On By Keyboard
Allows the system to be turned on by a PS/2 keyboard wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled Disables this function. (Default)
Password Set a password with 1~5 characters to turn on the system.
Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system.
Any Key Press any key to turn on the system.
2-8 Power
- 33 -

Gigabyte H310M DS2V DDR3 Specifications

General

Max Memory	32 GB
Memory Architecture	Dual Channel
Dimensions	22.6cm x 17.4cm
CPU	Supports 8th and 9th Gen Intel Core i7/i5/i3/Pentium/Celeron processors
Chipset	Intel H310
Memory Slots	2
Memory Type	DDR3
Graphics	Integrated Graphics Processor- Intel® HD Graphics support
Audio	Realtek® ALC887 codec
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	4
USB Ports	4 x USB 3.1 Gen 1 (2 on back panel, 2 via internal header), 6 x USB 2.0/1.1 (2 on back panel)
Back Panel Connectors	1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 2 x USB 3.1 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.1 Gen 1 header; 1 x serial port header; 1 x Clear CMOS jumper
Form Factor	Micro ATX
Video Outputs	D-Sub
