& VT-d
(Note)
Enables or disables Intel
®
Virtualization Technology for Directed I/O. (Default: Enabled)
& Internal Graphics
Enables or disables the onboard graphics function. (Default: Auto)
& DVMT Pre-Allocated
Allows you to set the onboard graphics memory size. Options are: 32M~1024M. (Default: 64M)
& DVMT Total Gfx Mem
Allows you to allocate the DVMT memory size of the onboard graphics. Options are: 128M, 256M, MAX.
(Default: 256M)
& Audio Controller
Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to
Disabled.
& IOAPIC 24-119 Entries
Enables or disables this function. (Default: Enabled)

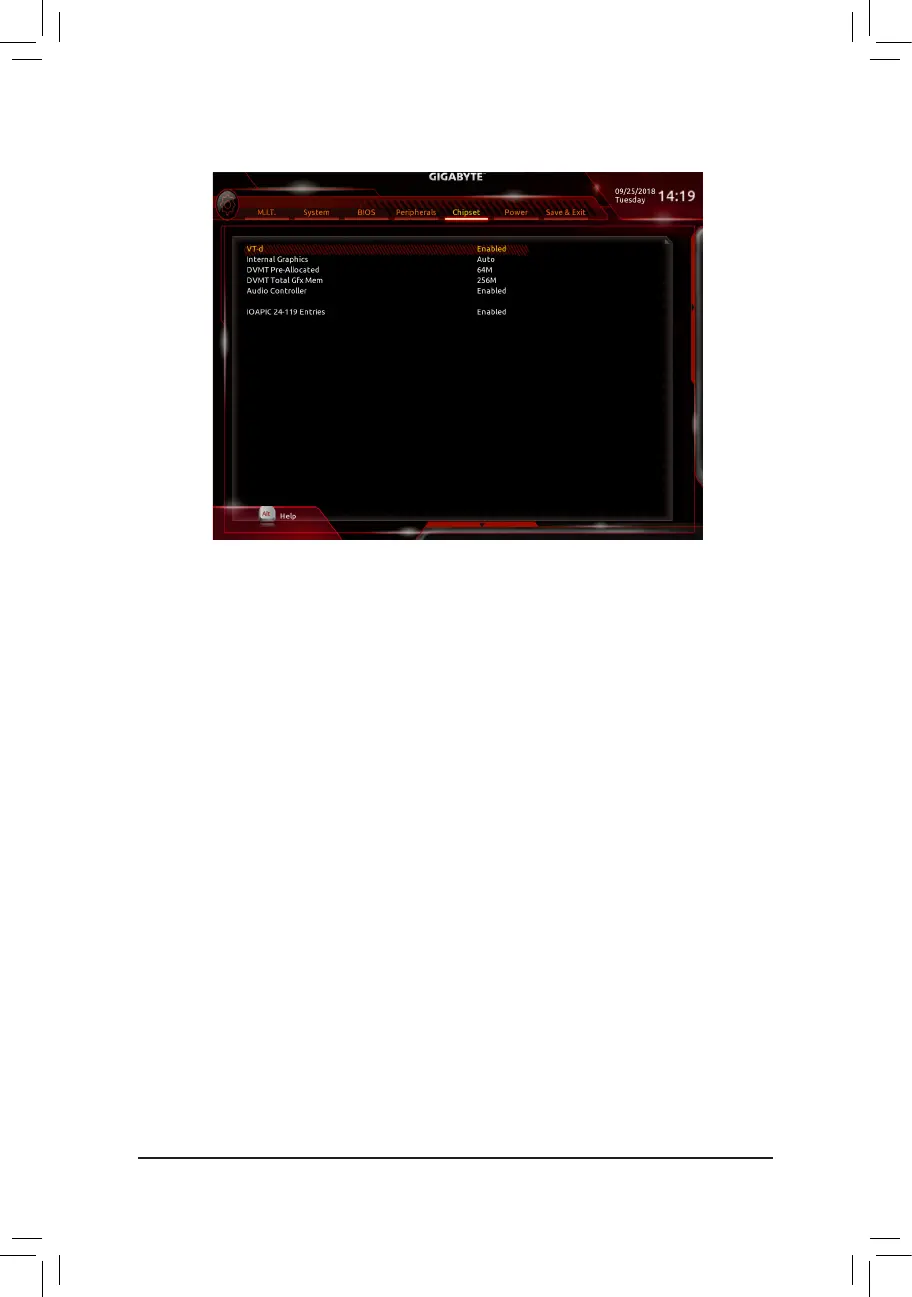

2-7 Chipset
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
- 32 -

Gigabyte H310M DS2V DDR3 Specifications

General

Max Memory	32 GB
Memory Architecture	Dual Channel
Dimensions	22.6cm x 17.4cm
CPU	Supports 8th and 9th Gen Intel Core i7/i5/i3/Pentium/Celeron processors
Chipset	Intel H310
Memory Slots	2
Memory Type	DDR3
Graphics	Integrated Graphics Processor- Intel® HD Graphics support
Audio	Realtek® ALC887 codec
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	4
USB Ports	4 x USB 3.1 Gen 1 (2 on back panel, 2 via internal header), 6 x USB 2.0/1.1 (2 on back panel)
Back Panel Connectors	1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 2 x USB 3.1 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.1 Gen 1 header; 1 x serial port header; 1 x Clear CMOS jumper
Form Factor	Micro ATX
Video Outputs	D-Sub
