- 24 -
Hardware Installation

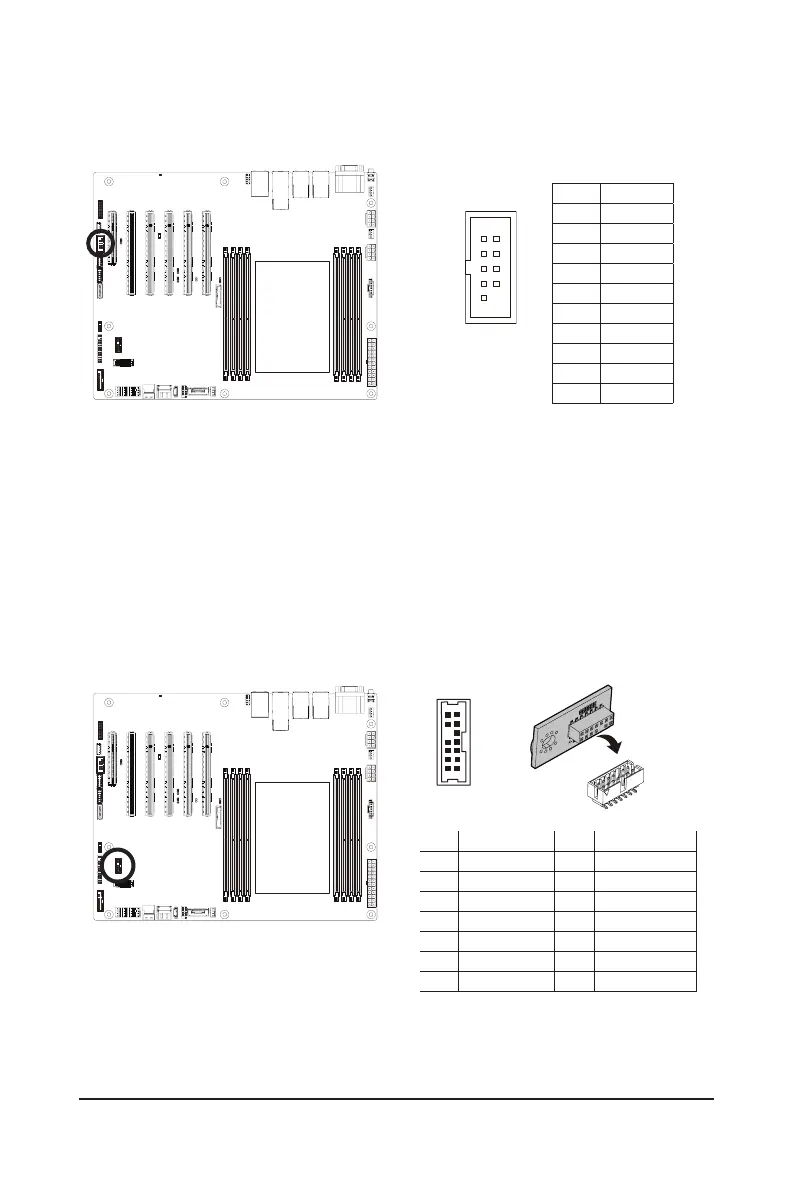

15) SPI_TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
Pin No. Denition Pin No. Denition
1 Clock 8 NC
2 P_3V3_AUX 9 NC
3 LPC_RST 10 No Pin
4 NC 11 NC
5 SPI_MISO 12 GND
6 IRQ_SPI 13 SPI_CS_N
7 SPI_MOSI 14 GND
2 1
14 13
14) COM2 (Serial Port Cable Connector)
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
109
21
Pin No. Denition
1 NDCDB#
2 NDSRB#
3 NSINB
4 NRTSB#
5 NSOUTB
6 NCTSB#
7 NDTRB#-
8 NEIB#
9 GND
10 No Pin
