- 26 -

Hardware Installation

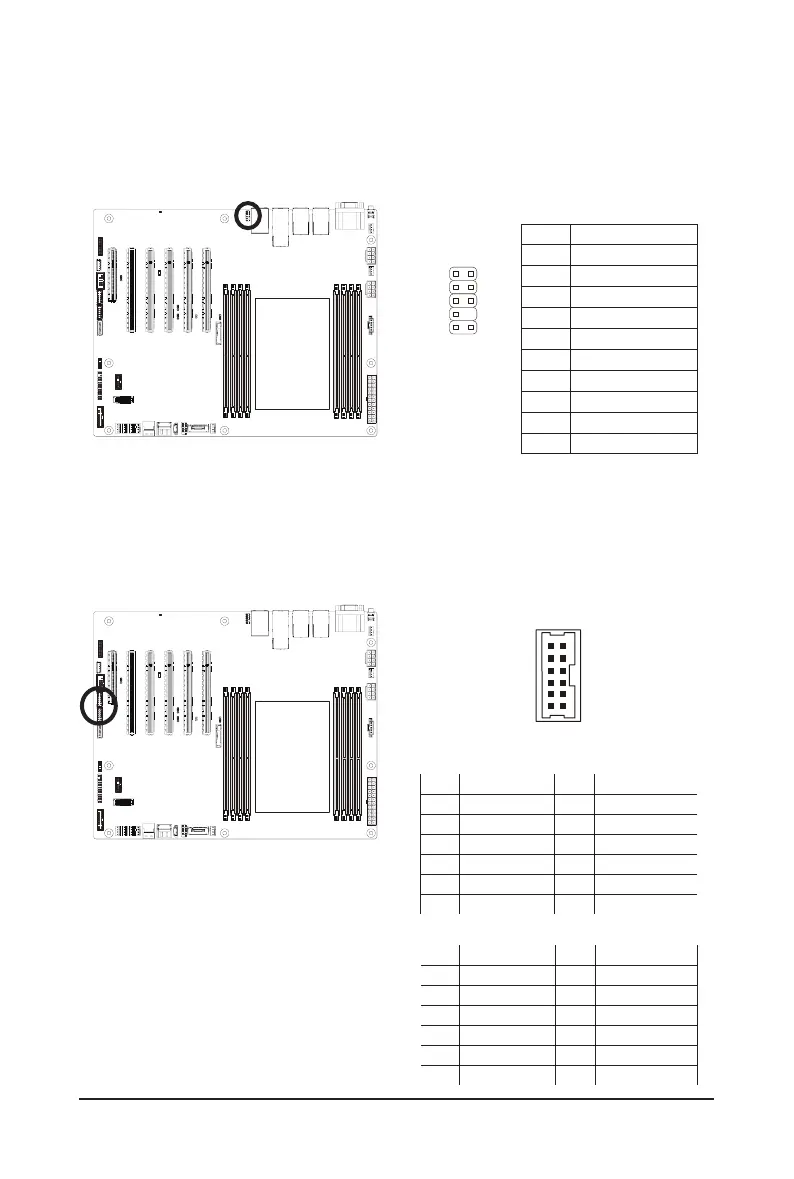

18) F_AUDIO1 (Front Panel Audio Header)

 Thefrontpanelaudioheader supportsIntel HighDenition audio(HD).Youmayconnect yourchassis

front panel audio module to this header. Make sure the wire assignments of the module connector match

the pin assignments of the motherboard header. Incorrect connection between the module connector and

the motherboard header will make the device unable to work or even damage it.

PinNo. Denition

1 MIC_L

2 GND

3 MIC_R

4 Power (3.3V)

5 LINE_R

6 GND

7 AUDIO_JD

8 NA

9 LINE_L

10 GND

19) GPIO_CNT_1/GPIO_CNT_2 (General-Purpose Input/Output Connector)

Pin No. Denition Pin No. Denition

1 SOGP0_1 7 SOGP0_4

2 SOGP1_1 8 SOGP1_4

3 SOGP0_2 9 SMB_CLK

4 SOGP1_2 10 SMB_DATA

5 SOGP0_3 11 VCC(5V)

6 SOGP1_3 12 GND

12 11

GPIO_CNT_1

Pin No. Denition Pin No. Denition

1 SOGP2_1 7 SOGP2_4

2 SOGP3_1 8 SOGP3_4

3 SOGP2_2 9 SMB_CLK

4 SOGP3_2 10 SMB_DATA

5 SOGP2_3 11 VCC(5V)

6 SOGP3_3 12 GND

GPIO_CNT_2
