Gigabyte MZ01-CE1 User Manual

Hardware Installation - 24 -
21
21
CPU
DIMM_P0_G0
DIMM_P0_H0
DIMM_P0_E0
DIMM_P0_F0
DIMM_P0_B0
DIMM_P0_A0
DIMM_P0_D0
DIMM_P0_C0
21
21
CPU
DIMM_P0_G0
DIMM_P0_H0
DIMM_P0_E0
DIMM_P0_F0
DIMM_P0_B0
DIMM_P0_A0
DIMM_P0_D0
DIMM_P0_C0

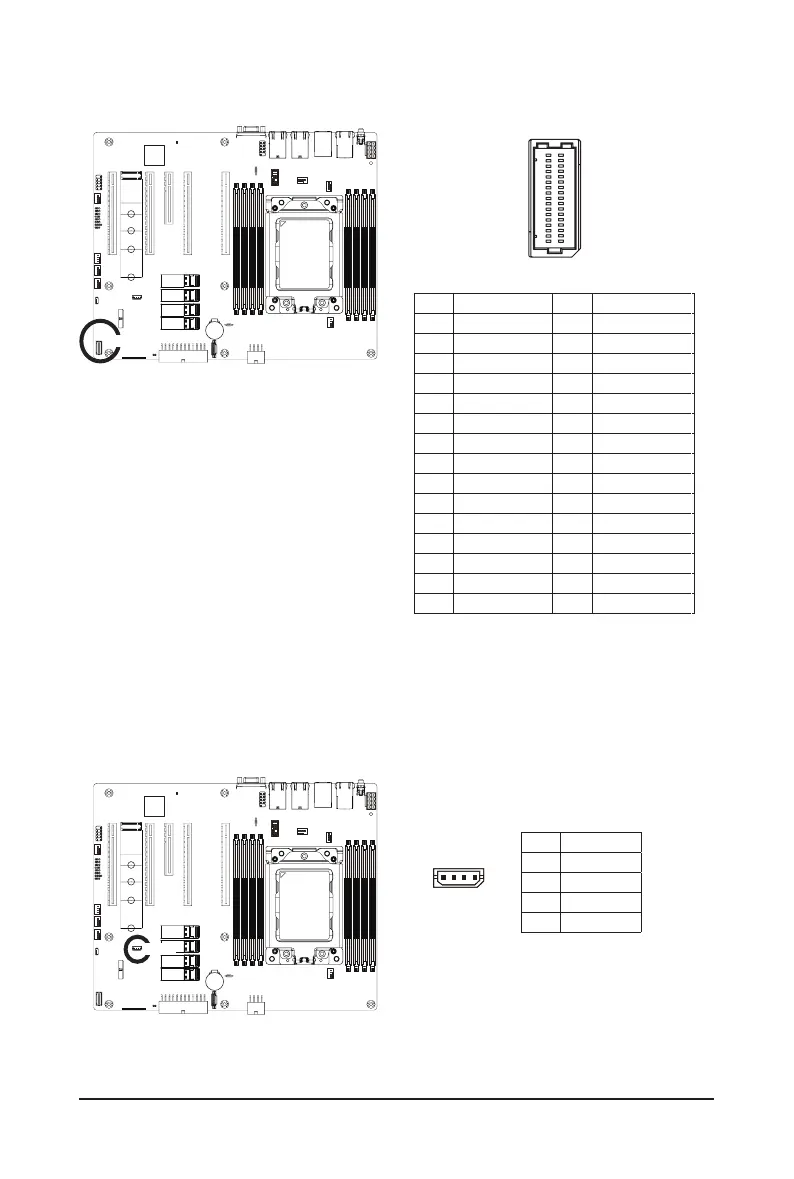

17) IPMB (Intelligent Platform Management Bus) Connector
The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for
transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C
devices.
IPMB
16) BP_1 (HDD Backplane Board Connector)
BP_1
Pin No. Denition Pin No. Denition
1 Reserved 2 BP_SGDIN
3 GND 4 BP_SGDOUT
5 BP_SGLD 6 GND
7 BP_SGCLK 8 PLD_Program_EN
9 GLED_AMB_N 10 GLED_GRN_N
11 FAN_IRQ_N 12 Reserved
13 BP_SCL 14 GND
15 BP_SDA 16 BP_RST_N
17 SMB_U2_TMP_SCL 18 GND
19 SMB_U2_TMP_SDA 20 I2C_DEV_RST
21 RSVD 22 GND
23 Reserved 24 GND
25 Reserved 26 GND
27 Reserved 28 GND
15 P_3V3_AUX 30 P_3V3_AUX
1
2
29 30
Pin No. Denition
1 Clock
2 GND
3 Data
4 VCC
14
