- 17 - Hardware Installation
10

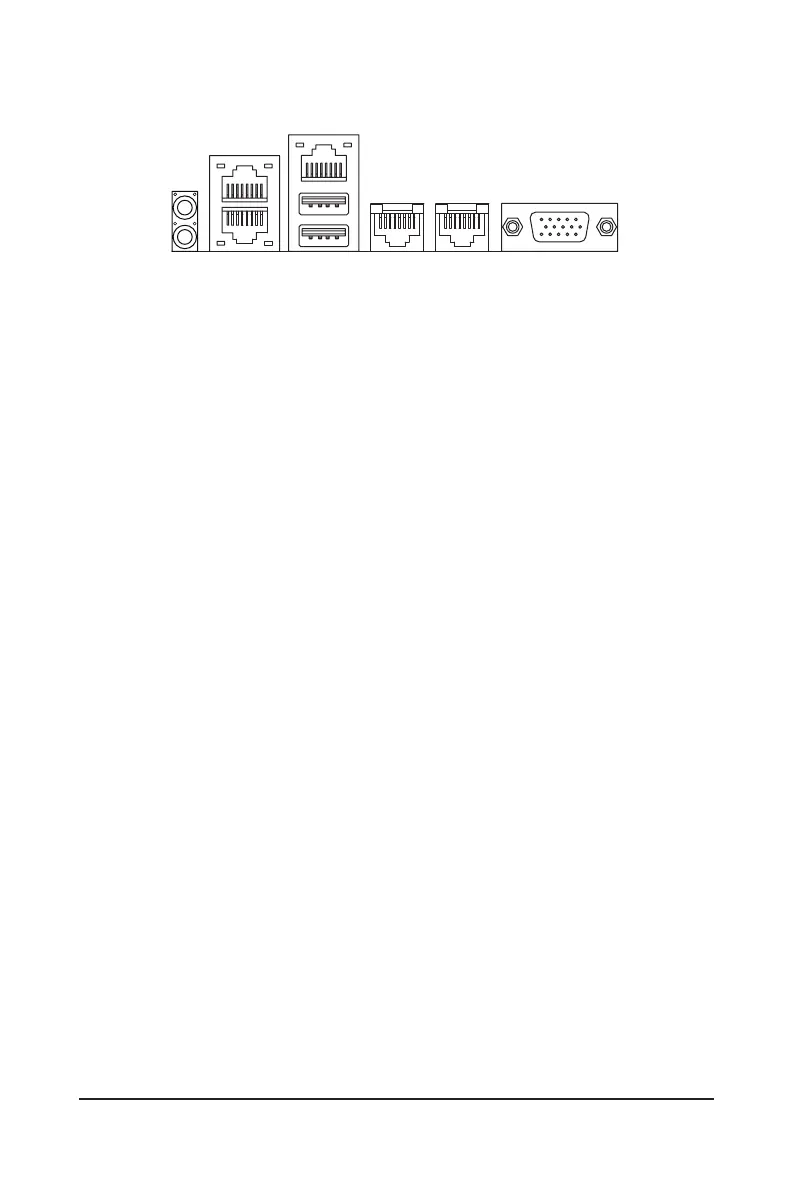

1-6 Back Panel Connectors
u
Power Button
Press the power button to turn on/off the system.
v
ID Button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
w
GbE LAN Port #3
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
x
GbE LAN Port #4
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
y
10/100/1000 Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
z
USB 3.0 Port
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveetc.
{
10G LAN Port #2 (MZ01-CE0 Only)
The 10 Gigabit SPF+ LAN port provides Internet connection at up to 10 Gbps data rate. See the section
below for a description of the states of the SFP+ LAN port LEDs.
|
10G LAN Port #1 (MZ01-CE0 Only)
The 10 Gigabit SPF+ LAN port provides Internet connection at up to 10 Gbps data rate. See the section
below for a description of the states of the SFP+ LAN port LEDs.
}
VGA Port
Connect to a monitor device.
v
w
x
y
{
}
u
|
z
