- 79 -
BIOS Setup
2-3-3-1-3

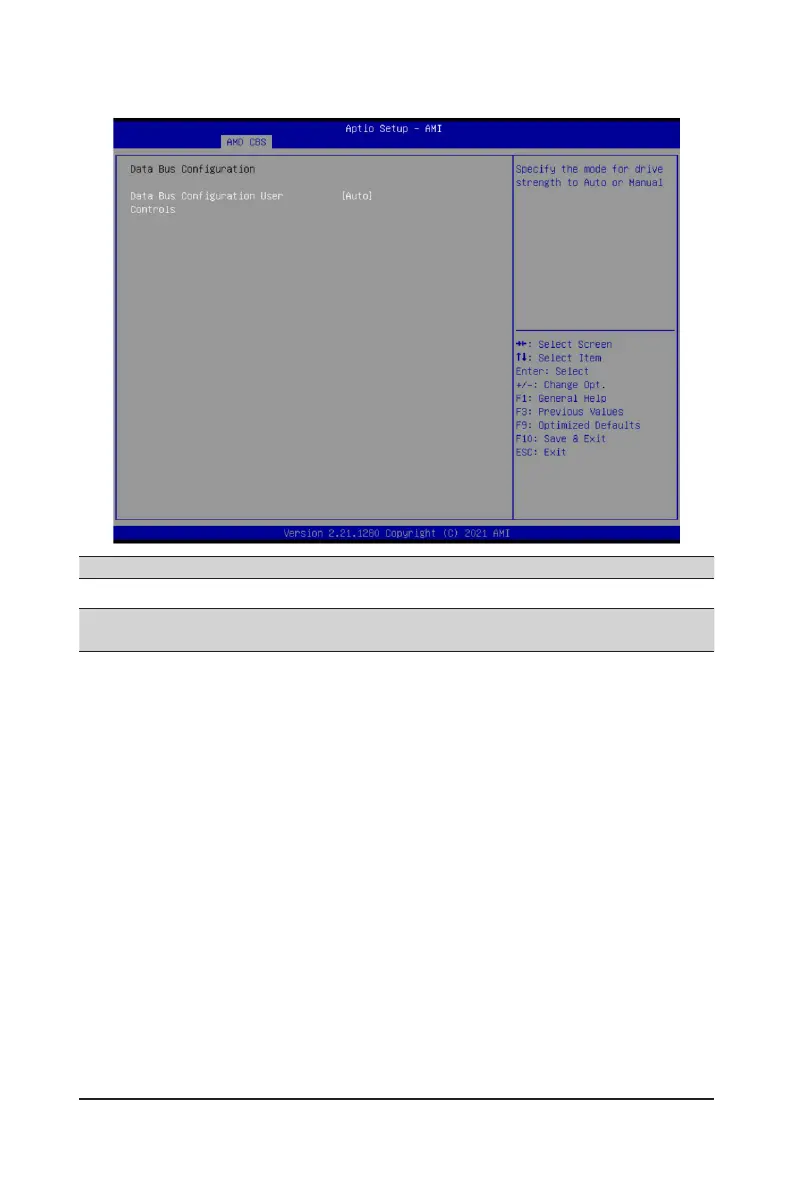

Data Bus Conguration
Parameter
Description
DataBusConguration
DataBusCongurationUser
Controls
Speciesthemodefordrivestrengthto
AutoorManual.
Options available:
Auto, Manual. Default setting is
Auto
.
78
80
Table of Contents
default chapter
3
Table of Contents
3
MZ01-CE0/ MZ01-CE1 Motherboard Layout
5
Block Diagram
7
Chapter 1 Hardware Installation
9
Installation Precautions
9
Product Specifications
10
Installing and Removing the CPU and Heat Sink
12
Installing and Removing Memory
13
8-Channel Memory Configuration
13
Installing and Removing a Memory Module
14
Processor and Memory Module Matrix Table
14
Memory Population Table
15
Installing and Removing the M.2 SSD Module
16
Back Panel Connectors
17
Internal Connectors
19
Jumper Settings
27
Chapter 2 BIOS Setup
28
The Main Menu
30
Advanced Menu
33
Trusted Computing
35
PSP Firmware Versions
36
Legacy Video Select
37
Ast2500 Super Io Configuration
38
S5 RTC Wake Settings
41
Serial Port Console Redirection
42
Cpu Configuration
46
PCI Subsystem Settings
47
Usb Configuration
49
Network Stack Configuration
51
Nvme Configuration
52
Sata Configuration
53
Graphic Output Configuration
54
Amd Mem Configuration Status
55
Tls Auth Configuration
56
Iscsi Configuration
57
Intel(R) I210/X550 Gigabit Network Connection
58
Vlan Configuration
60
Mac Ipv4 Network Configuration
61
Mac Ipv6 Network Configuration
62
AMD CBS Menu
63
CPU Common Options
65
DF Common Options
70
UMC Common Options
75
NBIO Common Options
90
FCH Common Options
96
NTB Common Options
100
SOC Miscellaneous Control
101
Workload Tuning
102
AMD PBS Menu
103
Ras
104
Chipset Setup Menu
106
North Bridge
107
Server Management Menu
108
System Event Log
110
View FRU Information
111
Bmc Network Configuration
112
Ipv6 Bmc Network Configuration
113
Security Menu
114
Secure Boot
115
Boot Menu
117
Save & Exit Menu
119
BIOS POST Beep Code (AMI Standard)
120
PEI Beep Codes
120
DXE Beep Codes
120
