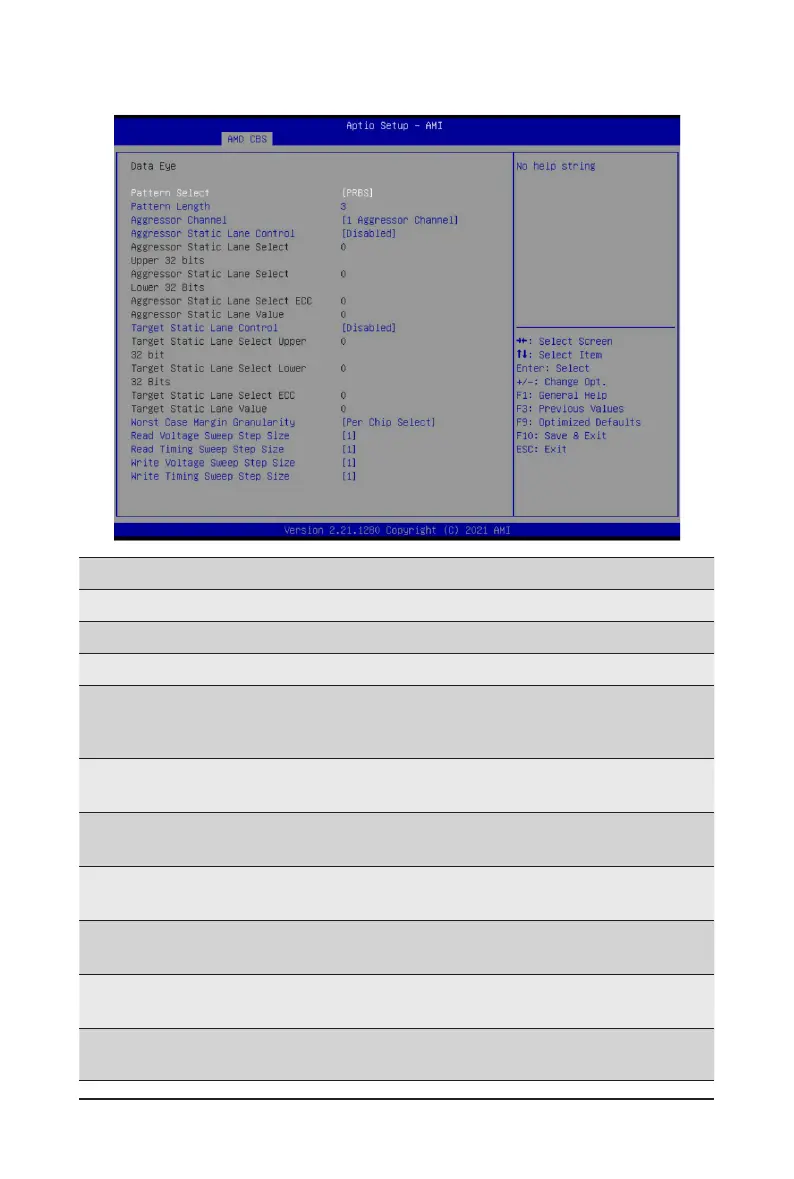

2-3-3-4-1 Data Eye
Parameter
Description
Data Eye
Pattern Select
Options available: PRBS, SSO, Both. Default setting is PRBS.
Pattern Length
Determines the pattern length. The possible options are N=3....12.
Aggressor Channel
This item helps read the aggressors channels.
Options available: Disabled, 1 Aggressor Channel, 3 Aggressor Channels,
7 Aggressor Channels. Default setting is 1 Aggressor Channel.
Aggressor Static Lane
Control
Enable/Disable the Aggressor Static Lane Control function.
Options available: Enabled, Disabled. Default setting is Disabled.
Aggressor Static Lane
Select Upper 32 bits
ThisitemiscongurablewhenAggressor Static Lane Control is set to
Enabled.
Aggressor Static Lane
Select Lower 32 bits
ThisitemiscongurablewhenAggressor Static Lane Control is set to
Enabled.
Aggressor Static Lane
Select ECC
ThisitemiscongurablewhenAggressor Static Lane Control is set to
Enabled.
Aggressor Static Lane
Value
ThisitemiscongurablewhenAggressor Static Lane Control is set to
Enabled.
Target Static Lane Control
Enable/Disable the Target Static Lane Control function.
Options available: Enabled, Disabled. Default setting is Disabled.
