System Hardware Installation - 24 -
3-1 Removing Chassis Cover
Before you remove or install the system cover
• Make sure the system is not turned on or connected to AC power.

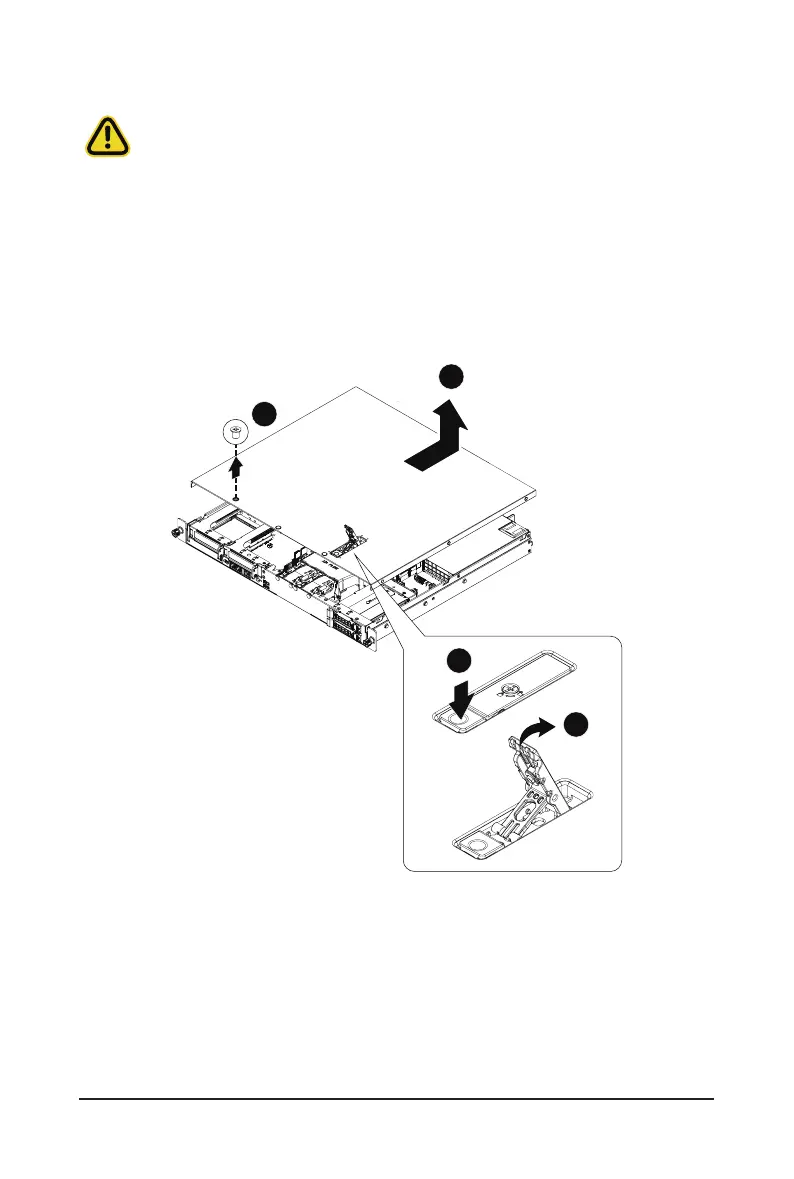

Follow these instructions to remove the rear system cover:
1. Remove the screw on the top cover.
2. Unlock the plastic handle and pull the grip handle to open the panel cover.
3. Slide the cover to the rear of the system and then remove the cover in the direction indicated by the
arrow.
4. To reinstall the chassis cover reverse steps 1-3.
