System Hardware Installation - 34 -
3-8 Installing the Mezzanine Card
Use of the following type of OCP 3.0 NIC is recommended:
OCP 3.0 SFF with pull tab
OCP 3.0 SFF with ejector latch

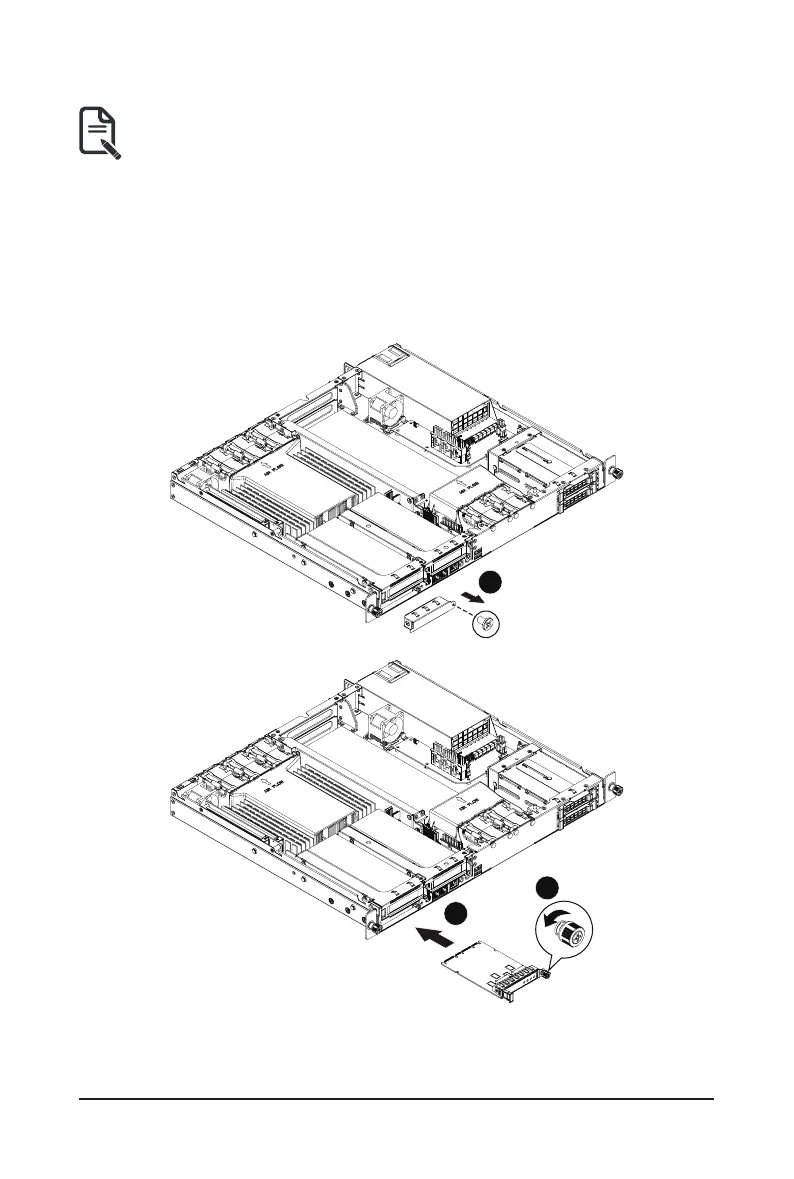

Follow these instructions to install an OCP 3.0 Mezzanine card:
1. Remove the screw securing the OCP 3.0 card slot cover.
2. Remove the slot cover from the system.
3. Insert the OCP 3.0 card into the card slot ensuring that the card is rmly connected to the connector
on the motherboard.
4. Tighten the thumbnail screw to secure the OCP 3.0 card in place.
5. Reverse steps 3-4 to replace the OCP 3.0 card.
1
2
3
