Gigabyte R152-ZE0 User Manual

- 41 - Motherboard Components
Chapter 4 Motherboard Components

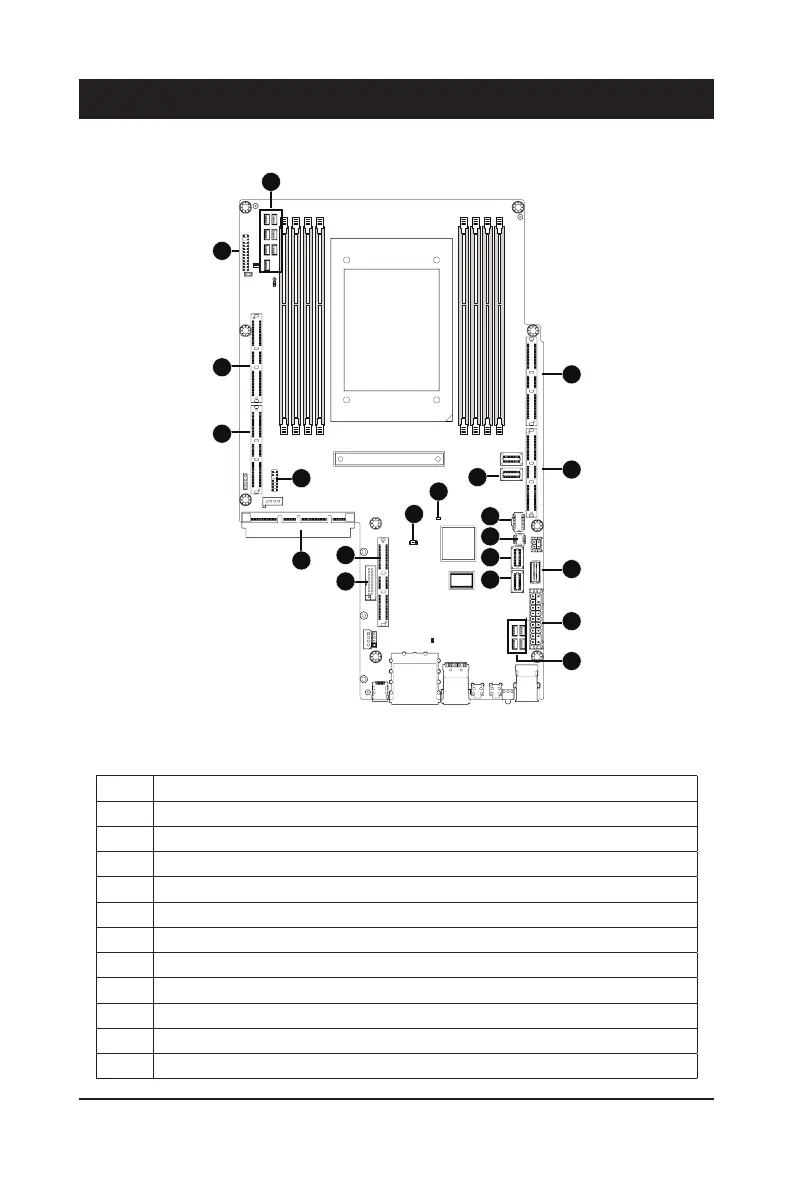

4-1 Motherboard Components
CPU
1
3
4
5
6
7
8
9
10
11
12
13
14
15
18
17
20
19
2
16
Item Description
1 OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16)
2 Front panel USB 3.0 Connector
3 Proprietary PCIe Slot Z #1 (Gen 4/x8 slot/GENZ_1)
4 Proprietary PCIe Slot Z #1 (Gen 4/x8 slot/GENZ_1)
5 Front Panel Connector
6 System Fan Connectors
7 Proprietary PCIe Slot Z #2 (Gen 4/x8 slot/GENZ_2)
8 Proprietary PCIe Slot Z #2 (Gen 4/x8 slot/GENZ_2)
9 HDD Back Plane Board Connector
10 System Power Connector
11 System Fan Connectors
