User Guide
GD32E230C-EVAL
7 /24
3. Getting started
The EVAL Board uses mini-USB connecter to get power, the hardware system power is
+3.3V. A GD-Link on board is necessary in order to download and debug programs.
Select the correct boot mode and then power on, the LEDPWR will turn on, which
indicates that the power supply is OK.
There are Keil version and IAR version of all projects. Keil version of the projects are
created based on Keil MDK-ARM 5.25 uVision5. IAR version of the projects are created
based on IAR Embedded Workbench for ARM 8.32.1. During use, the following points
should be noted:
1. If you use Keil uVision5 to open the project. In order to solve the "Device Missing (s)"
problem, you can install GigaDevice.GD32E230_DFP.1.0.0.pack.
2. If you use IAR to open the project, install IAR_GD32E230_ADDON_1.0.0.exe to load
the associated files.
4. Hardware layout overview
4.1. Power supply

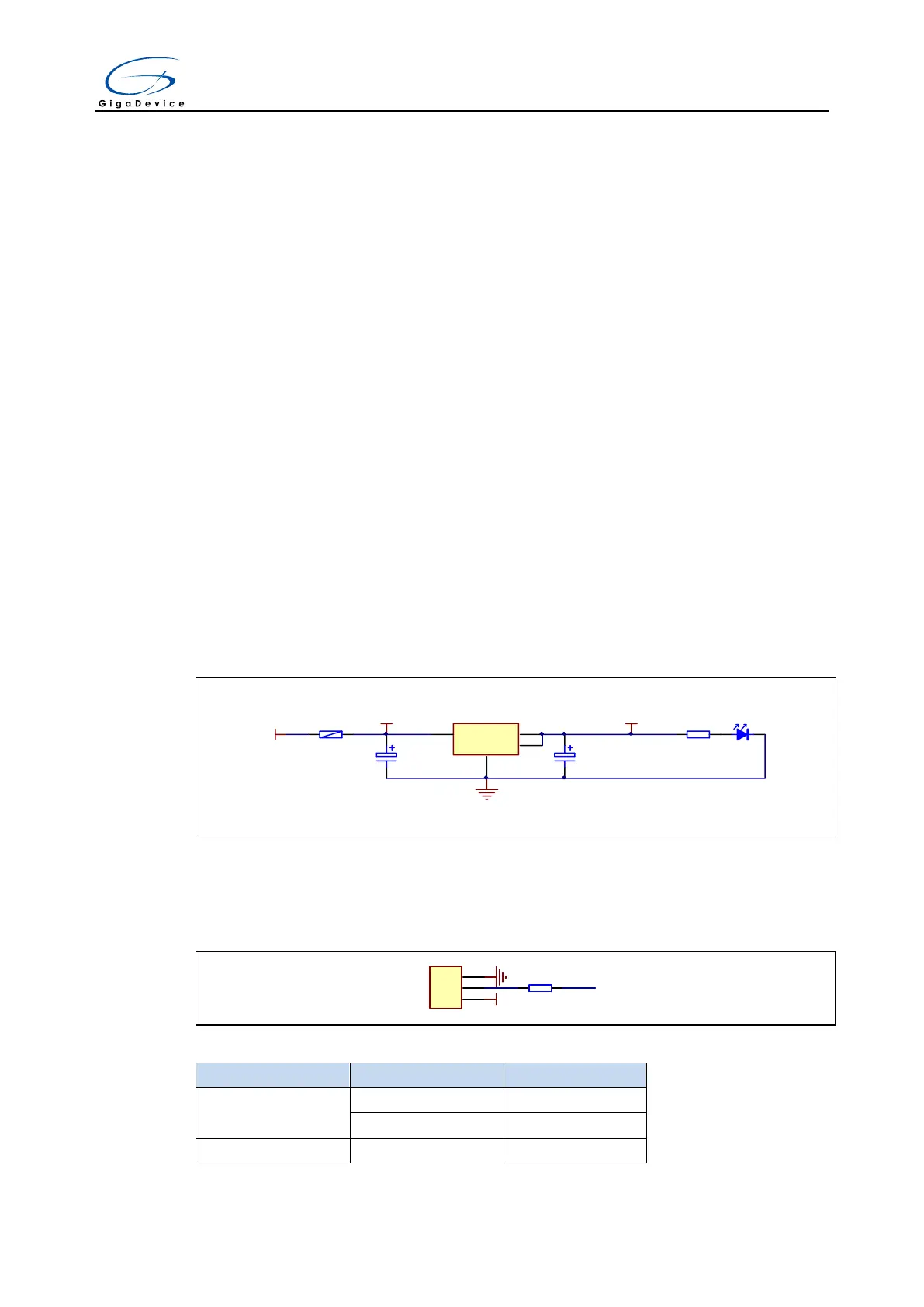

Figure 4-1 Schematic diagram of power supply
G
1
Vout
2
Vin
3
4
U4 AMS1117-3.3
E5
16V/10uF,AVX
E6
16V/10uF,AVX
GND
+3V3 LEDPWR
LED0603
R32
470Ω
P1
SMD1210P050TF
+5V
+U5V
4.2. Boot option
Figure 4-2 Schematic diagram of boot option
R18
10KΩ
1
2
3
JP4
BOOT0
GND
BOOT0
+3V3
Table 4-1 Boot configuration
