GILCREST PavMaster 314 - Hopper Wing Assembly

33
Item Qty. Description Part # P g.#
1 1 4 1 4 Wing RH 9985411
1 414 Wing LH (Not Shown) 9985412
2 4 1 4 Wing Pin (Not Shown)
2 1 Clevis Pin 1/2"x 1" 7636400
3 1 Wing Cylinder 3220340
4 1 Cylinder Pin 1" 7636470
5 1 414 Hopper Weldment 9980400
6 1 Bulkhead Weld RH 9150413
1 Bulkhead Weld LH (Not Shown) 9150414
Note: Right and Left Assemblies are identical.

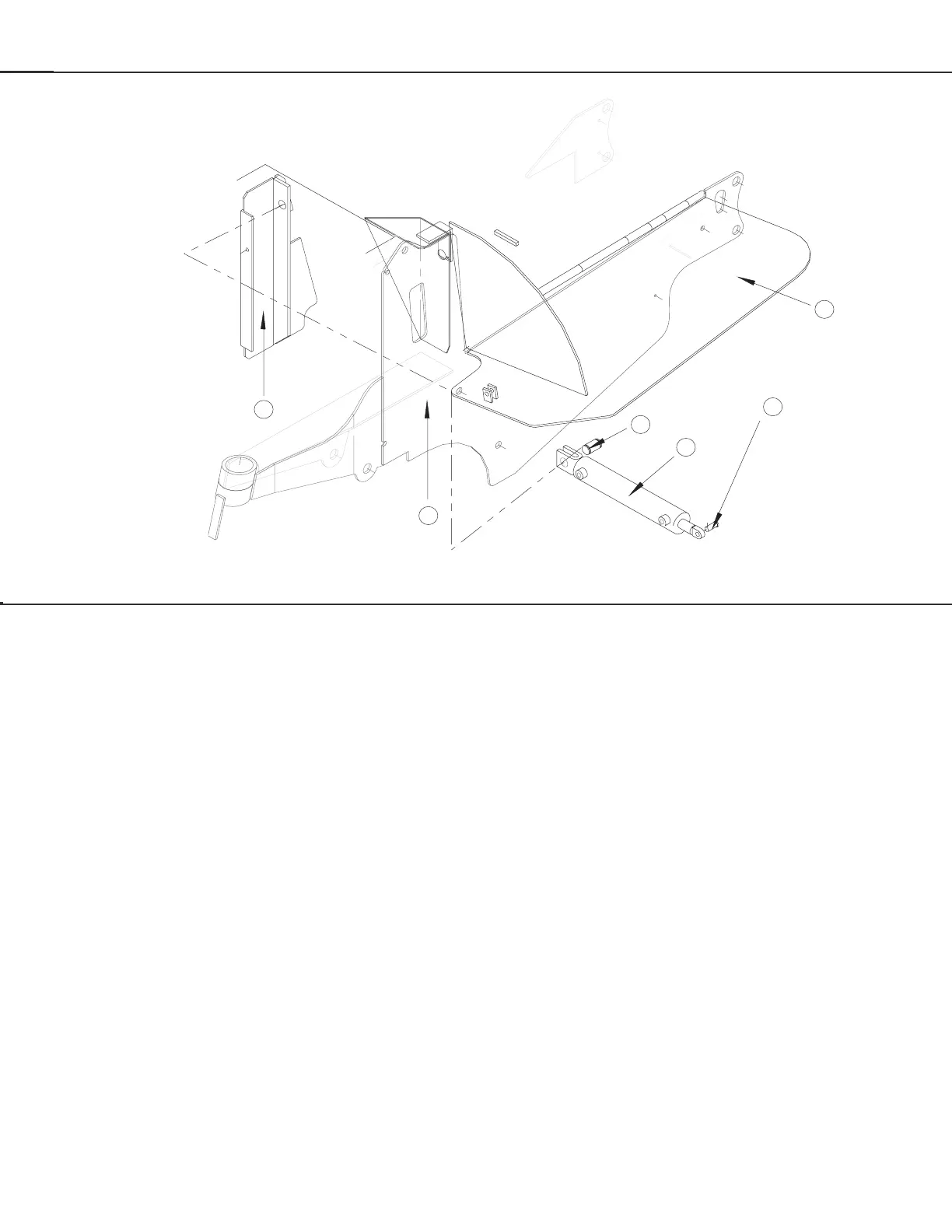

Wing Assembly
4
1
2
3
5
6
